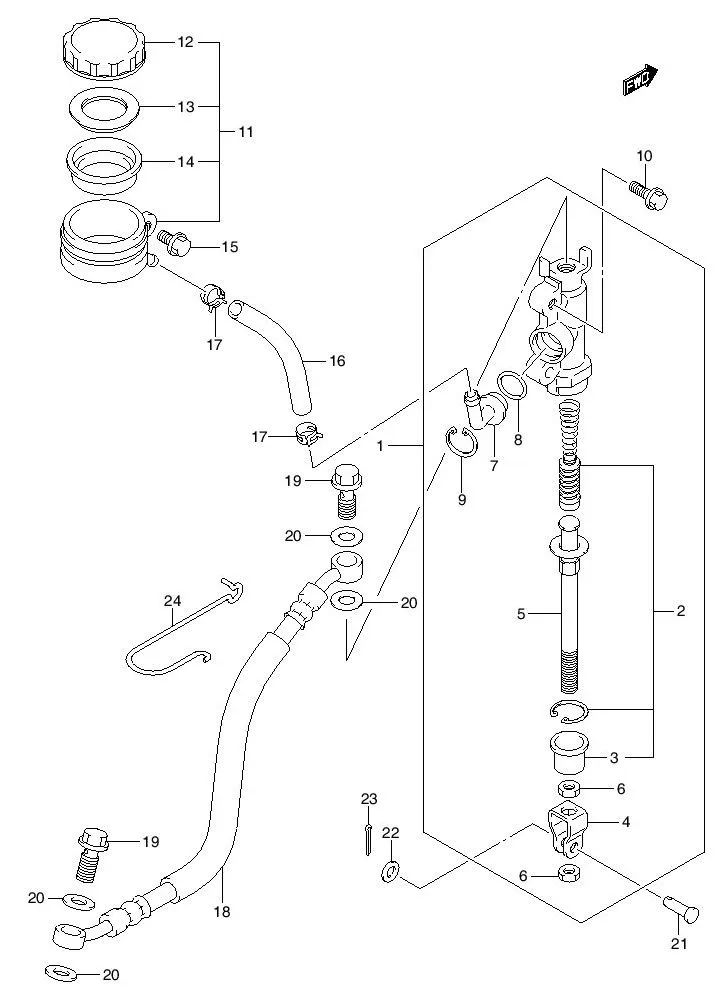

FIG.49 REAR MASTER CYLINDER FD125XRM

FIG.49 REAR MASTER CYLINDER FD125XRM
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 69600B20G00N000		 CYLINDER ASSY, REAR MASTER 1 -
2 69600-21810-000
SUB: 69600-21810L000		 •PISTON/CUP SET 1 Rp76.500
3 69691-00A00-000
SUB: 69691-00A00L000		 ••BOOT 1 Rp13.500
4 69692-27A30-000
SUB: 69692-27A30L000		 •YOKE 1 Rp43.000
5 DISCONTINUE
SUB: 69670B43B00N000		 •ROD, PUSH 1 -
6 69693-05A00-000
SUB: 69693-05A00L000		 •NUT 2 Rp5.500
7 69672-00B20-000
SUB: 69672-00B20L000		 •CONNECTOR 1 Rp18.000
8 69686-34200-000
SUB: 69686-34200L000		 •O RING 1 Rp8.000
9 DISCONTINUE
SUB: 69674-00B20L000		 •CIRCLIP 1 -
10 DISCONTINUE
SUB: 01550B06253N000		 BOLT 2 -
11 69740-20G00-000
SUB: 69740B20G00N000		 TANK ASSY, RESERVOIR 1 Rp82.500
12 DISCONTINUE
SUB: 69669B20G00N000		 •CAP 1 -
13 59668-18441-000
SUB: 59668B18441N000		 •PLATE 1 Rp3.000
14 59667-18441-000
SUB: 59667B18441N000		 •DIAPHRAGM 1 Rp13.500
15 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
16 DISCONTINUE
SUB: 69731B20G00N000		 HOSE, RESERVOIR TANK 1 -
17 69735-38D00-000
SUB: 69735B38D00N000		 CLIP 2 Rp9.000
18 DISCONTINUE
SUB: 69480B20G10N000		 HOSE, REAR BRAKE 1 -
19 DISCONTINUE
SUB: 09360B10042N000		 BOLT (10X1.25X22) 2 -
20 09168-10033-000
SUB: 09168B10033N000		 WASHER 4 Rp8.500
21 09200-06037-000
SUB: 09200B06037N000		 PIN 1 Rp3.500
22 DISCONTINUE
SUB: 08322B01063N000		 WASHER 1 -
23 04111-2015A-000
SUB: 04111-20158L000		 PIN, COTTER 1 Rp4.500
24 DISCONTINUE
SUB: 69481B20G00N000		 GUIDE, RR BRAKE HOSE 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
