SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.26 FRAMEFIG.27 STANDFIG.28 FOOTRESTFIG.29 FUEL TANKFIG.30 FRAME COVERFIG.31 SHIELDLEG FD125XSDFIG.31A SHIELDLEG FD125XRMFIG.32 FRONT FENDERFIG.33 HANDLE BARFIG.34 HANDLE COVERFIG.35 HANDLE LEVER FD125XSDFIG.35A HANDLE LEVER FD125XRMFIG.36 REAR FENDERFIG.37 HELMET BOXFIG.38 LABELFIG.39 SEATFIG.40 FRONT FORK DAMPERFIG.41 FRONT FORK BRACKETFIG.42 FRONT WHEEL FD125XSDFIG.42A FRONT WHEEL FD125XRMFIG.43 FRONT CALIPER FD125XSDFIG.43A FRONT CALIPER FD125XRMFIG.44 FRONT MASTER CYLINDER FD125XSDFIG.44A FRONT MASTER CYLINDER FD125XRMFIG.45 REAR SWINGARM FD125XSDFIG.45A REAR SWINGARM FD125XRMFIG.46 CHAIN CHASEFIG.47 REAR WHEEL FD125XSDFIG.47A REAR WHEEL FD125XRMFIG.48 REAR CALIPER FD125XSDFIG.49 REAR MASTER CYLINDER FD125XRM

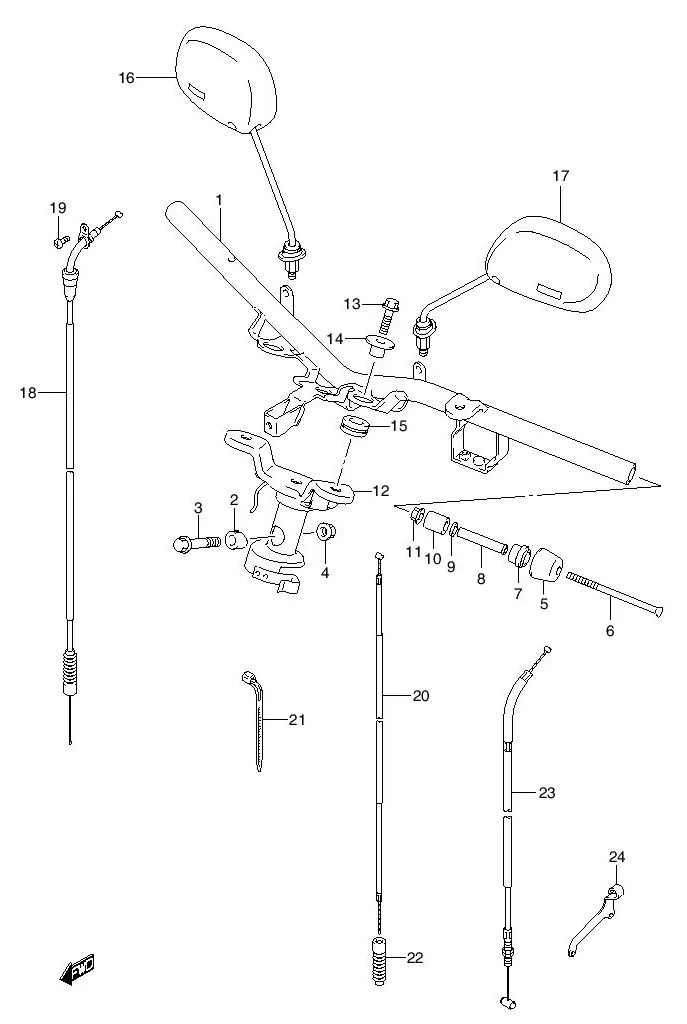

FIG.33 HANDLE BAR

FIG.33 HANDLE BAR
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 56110B20G20N000		 HANDLEBAR 1 - FD125XRM
1-1 DISCONTINUE
SUB: 56110B20G10N000		 HANDLEBAR 1 - FD125XSD ; FD125XRD
2 51358-09G00-000
SUB: 51358B09G00N000		 STOPPER, HANDLE 1 Rp8.000
3 09103-10126-000
SUB: 09103B10126N000		 BOLT 1 Rp28.500
4 08319-31108-000
SUB: 08319B31107N000		 NUT 1 Rp4.500
5-1 56278-20G00-000
SUB: 56278B20G00N000		 BALANCER SET 2 Rp73.500 FD125XSD ; FD125XRD
5-2 56278-28F00-000
SUB: 56278B28F00N000		 BALANCER SET (CHROME) 0 Rp105.000 FD125XRM
6 09127-06018-000
SUB: 09127B06018N000		 •SCREW 2 Rp4.000
7 56272-28F00-000
SUB: 56272B28F00N000		 •EXPANDER, OUTER 2 Rp11.500
8 56276-17D00-000
SUB: 56276B17D00N000		 •SPACER 2 Rp9.000
9 09160-06126-000
SUB: 09160B06126N000		 •WASHER 2 Rp3.000
10 56272-23F10-000
SUB: 56272B23F10N000		 •EXPANDER, INNER 2 Rp4.500
11 09159-06024-000
SUB: 09159B06024N000		 •NUT 2 Rp4.000
12 51310-20G12-000
SUB: 51310-20G12T000		 BRACKET, FORK UPPER 1 Rp261.500
13 01550-0825A-000
SUB: 01550-08253-000		 BOLT 3 Rp3.500
14 DISCONTINUE
SUB: 56243B09G00N000		 SPACER 3 -
15 DISCONTINUE
SUB: 56247B09G00N000		 CUSHION 3 -
16 56500-20G00-000
SUB: 56500B20G00N000		 MIRROR ASSY, REAR VIEW RH (STAY CHROME) 1 Rp82.000
17 56600-20G00-000
SUB: 56600B20G00N000		 MIRROR ASSY, REAR VIEW LH (STAY CHROME) 1 Rp82.000
18 58300-20G00-000
SUB: 58300B20G00N000		 CABLE ASSY, THROTTLE 1 Rp42.000
19 02112-0512A-000
SUB: 02112B05123N000		 SCREW 1 Rp2.500
20 58410-20G00-000
SUB: 58410B20G00N000		 CABLE, STARTER 1 Rp20.000
21 36990-25G00-000
SUB: 09407-14403L000		 CLAMP 1 Rp13.000
22 58333-35401-000
SUB: 58333-35400-000		 SEAL, DUST 1 Rp35.500
23 58200-20G00-000
SUB: 58200B20G00N000		 CABLE ASSY, CLUTCH 1 Rp60.500 FD125XRM
24 DISCONTINUE
SUB: 58634B20G00N000		 STOPPER 1 - FD125XRM

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
