SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.26 FRAMEFIG.27 STANDFIG.28 FOOTRESTFIG.29 FUEL TANKFIG.30 FRAME COVERFIG.31 SHIELDLEG FD125XSDFIG.31A SHIELDLEG FD125XRMFIG.32 FRONT FENDERFIG.33 HANDLE BARFIG.34 HANDLE COVERFIG.35 HANDLE LEVER FD125XSDFIG.35A HANDLE LEVER FD125XRMFIG.36 REAR FENDERFIG.37 HELMET BOXFIG.38 LABELFIG.39 SEATFIG.40 FRONT FORK DAMPERFIG.41 FRONT FORK BRACKETFIG.42 FRONT WHEEL FD125XSDFIG.42A FRONT WHEEL FD125XRMFIG.43 FRONT CALIPER FD125XSDFIG.43A FRONT CALIPER FD125XRMFIG.44 FRONT MASTER CYLINDER FD125XSDFIG.44A FRONT MASTER CYLINDER FD125XRMFIG.45 REAR SWINGARM FD125XSDFIG.45A REAR SWINGARM FD125XRMFIG.46 CHAIN CHASEFIG.47 REAR WHEEL FD125XSDFIG.47A REAR WHEEL FD125XRMFIG.48 REAR CALIPER FD125XSDFIG.49 REAR MASTER CYLINDER FD125XRM

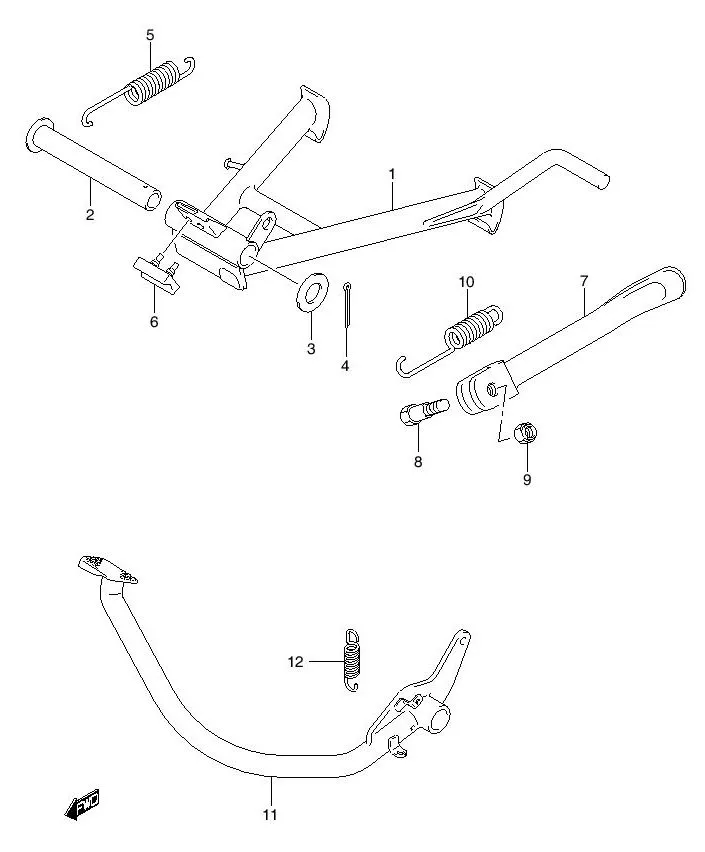

FIG.27 STAND

FIG.27 STAND
No No. Part Description Qty Price Per Pcs Remarks
1 42100-20G10-000
SUB: 42100B20G00N000		 STAND, CENTER 1 Rp117.500
2 42211-25G00-000
SUB: 42211B20G00N000		 SHAFT 1 Rp23.500
3 08322-0116B-000
SUB: 08322-01163-000		 WASHER 1 Rp3.500
4 04111-3030A-000
SUB: 04111-30308-000		 COTTER PIN 1 Rp9.500
5 42241-09G00-000
SUB: 42241B09G00N000		 SPRING 1 Rp9.000
6 42272-09G00-000
SUB: 42272B09G00N000		 CUSHION 1 Rp4.500
7 42310-09G10-000
SUB: 42310B09G10N000		 STAND, PROP 1 Rp39.500
8 42341-09G01-000
SUB: 42341B09G00N000		 BOLT 1 Rp5.000
9 08319-31108-000
SUB: 08319B31107N000		 NUT 1 Rp4.500
10 09443-14022-000
SUB: 09443-14022L000		 SPRING 1 Rp5.000
11-1 DISCONTINUE
SUB: 43110B20G00N000		 PEDAL, BRAKE 1 - FD125XSD
11-2 DISCONTINUE
SUB: 43110B20G20N000		 PEDAL, BRAKE 1 - FD125XRD ; FD125XRM
12 09443-12033-000
SUB: 09443B12033N000		 SPRING, RETURN 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
