SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.26 FRAMEFIG.27 STANDFIG.28 FOOTRESTFIG.29 FUEL TANKFIG.30 FRAME COVERFIG.31 SHIELDLEG FD125XSDFIG.31A SHIELDLEG FD125XRMFIG.32 FRONT FENDERFIG.33 HANDLE BARFIG.34 HANDLE COVERFIG.35 HANDLE LEVER FD125XSDFIG.35A HANDLE LEVER FD125XRMFIG.36 REAR FENDERFIG.37 HELMET BOXFIG.38 LABELFIG.39 SEATFIG.40 FRONT FORK DAMPERFIG.41 FRONT FORK BRACKETFIG.42 FRONT WHEEL FD125XSDFIG.42A FRONT WHEEL FD125XRMFIG.43 FRONT CALIPER FD125XSDFIG.43A FRONT CALIPER FD125XRMFIG.44 FRONT MASTER CYLINDER FD125XSDFIG.44A FRONT MASTER CYLINDER FD125XRMFIG.45 REAR SWINGARM FD125XSDFIG.45A REAR SWINGARM FD125XRMFIG.46 CHAIN CHASEFIG.47 REAR WHEEL FD125XSDFIG.47A REAR WHEEL FD125XRMFIG.48 REAR CALIPER FD125XSDFIG.49 REAR MASTER CYLINDER FD125XRM

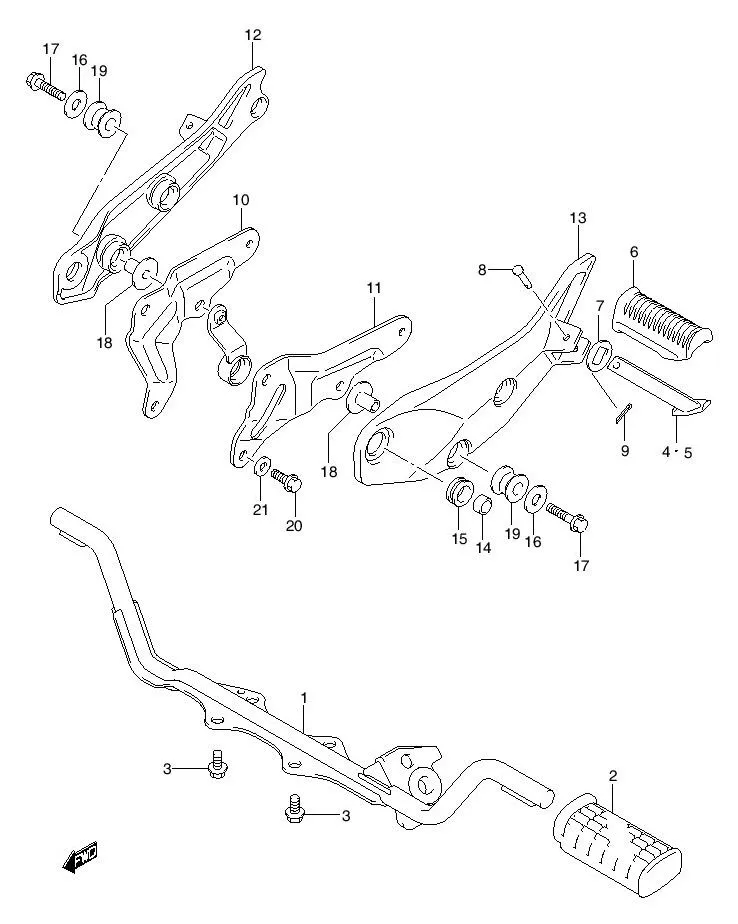

FIG.28 FOOTREST

FIG.28 FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 43510-09G00-000
SUB: 43510B09G00N000		 BAR, FRONT FOOTREST 1 Rp156.500
2 43551-35560-000
SUB: 43551-35510L000		 RUBBER 2 Rp18.500
3 01550-0816A-000
SUB: 01550M08163-000		 BOLT 4 Rp6.000
4 43610-34A00-000
SUB: 43610-34A00L000		 BAR, PILLION RH 1 Rp15.000
5 43710-34A00-000
SUB: 43710-34A00L000		 BAR, PILLION LH 1 Rp15.000
6 43612-09G00-000
SUB: 43612B09G00N000		 RUBBER 2 Rp14.000
7 43631-34A01-000
SUB: 43631B34A01N000		 WASHER 2 Rp7.500
8 09200-06041-000
SUB: 09200B06041N000		 PIN 2 Rp4.000
9 04111-2515A-000
SUB: 04111-25158-000		 COTTER PIN 2 Rp8.500
10 43811-20G00-000
SUB: 43811B20G00N000		 PLATE, PILLION RH 1 Rp108.500
11 DISCONTINUE
SUB: 43821B20G00N000		 PLATE, PILLION LH 1 -
12 DISCONTINUE
SUB: 43815B20G00N000		 HOLDER, PILLION RH 1 -
13 DISCONTINUE
SUB: 43825B20G00N000		 HOLDER, PILLION LH 1 -
14 DISCONTINUE
SUB: 43816B23F20N000		 SPACER 2 -
15 DISCONTINUE
SUB: 43817B23F20N000		 RUBBER 2 -
16 09160-10506-000
SUB: 09160B10506N000		 WASHER 2 Rp6.000
17 01550-0830B-000
SUB: 01550-08303L000		 BOLT 3 Rp3.000
18 09180-08151-000
SUB: 09180B08151N000		 SPACER 4 Rp22.000
19 43818-23F20-000
SUB: 43818B23F20N000		 RUBBER 4 Rp6.500
20 01550-0820A-000
SUB: 01550-08203-000		 BOLT, LOWER 2 Rp5.500
21 09160-08032-000
SUB: 09160B08032N000		 WASHER 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
