SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.26 FRAMEFIG.27 STANDFIG.28 FOOTRESTFIG.29 FUEL TANKFIG.30 FRAME COVERFIG.31 SHIELDLEG FD125XSDFIG.31A SHIELDLEG FD125XRMFIG.32 FRONT FENDERFIG.33 HANDLE BARFIG.34 HANDLE COVERFIG.35 HANDLE LEVER FD125XSDFIG.35A HANDLE LEVER FD125XRMFIG.36 REAR FENDERFIG.37 HELMET BOXFIG.38 LABELFIG.39 SEATFIG.40 FRONT FORK DAMPERFIG.41 FRONT FORK BRACKETFIG.42 FRONT WHEEL FD125XSDFIG.42A FRONT WHEEL FD125XRMFIG.43 FRONT CALIPER FD125XSDFIG.43A FRONT CALIPER FD125XRMFIG.44 FRONT MASTER CYLINDER FD125XSDFIG.44A FRONT MASTER CYLINDER FD125XRMFIG.45 REAR SWINGARM FD125XSDFIG.45A REAR SWINGARM FD125XRMFIG.46 CHAIN CHASEFIG.47 REAR WHEEL FD125XSDFIG.47A REAR WHEEL FD125XRMFIG.48 REAR CALIPER FD125XSDFIG.49 REAR MASTER CYLINDER FD125XRM

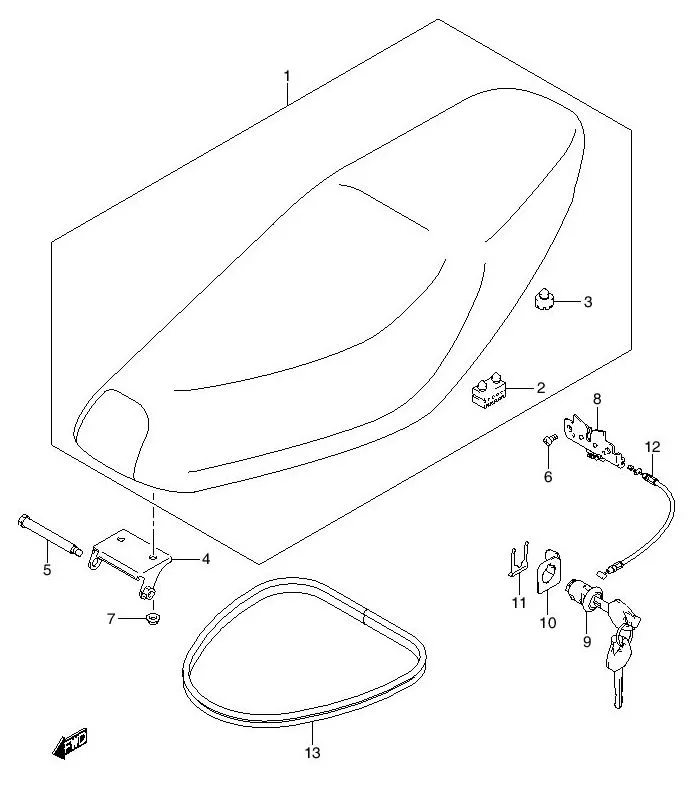

FIG.39 SEAT

FIG.39 SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 45100B20G00N000		 SEAT ASSY 1 -
2 45149-09G00-000
SUB: 45149B09G00N000		 CUSHION, FRONT 2 Rp9.500
3 DISCONTINUE
SUB: 45148B20G00N000		 CUSHION, REAR 2 -
4 45250-20G00-000
SUB: 45250B20G00N000		 BRACKET, SEAT HINGE 1 Rp24.000
5 09111-06001-000 BOLT, SEAT HINGE 1 Rp19.000
6 02112-0610B-000
SUB: 02112-06103-000		 SCREW 2 Rp5.500
7 08316-2006A-000
SUB: 08316-20063-000		 NUT 2 Rp16.500
8 45700-47G00-000
SUB: 45700-20G00-000		 BRACKET, STRIKER SUPPORT 1 Rp31.500
9 95700-14F60-000
SUB: 95700B14810N000		 LOCK SET, SEAT 1 Rp75.500
10 45288-20G00-000
SUB: 45288B20G00N000		 GUIDE, SEAT LOCK CABLE 1 Rp4.500
11 45289-11F00-000
SUB: 45289B11F00N000		 PLATE, SEAT LOCK 1 Rp4.000
12 45280-20G01-000
SUB: 45280B20G00N000		 CABLE, SEAT LOCK 1 Rp14.500
13 DISCONTINUE
SUB: 45211B20G00N000		 MOLDING, SEAT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
