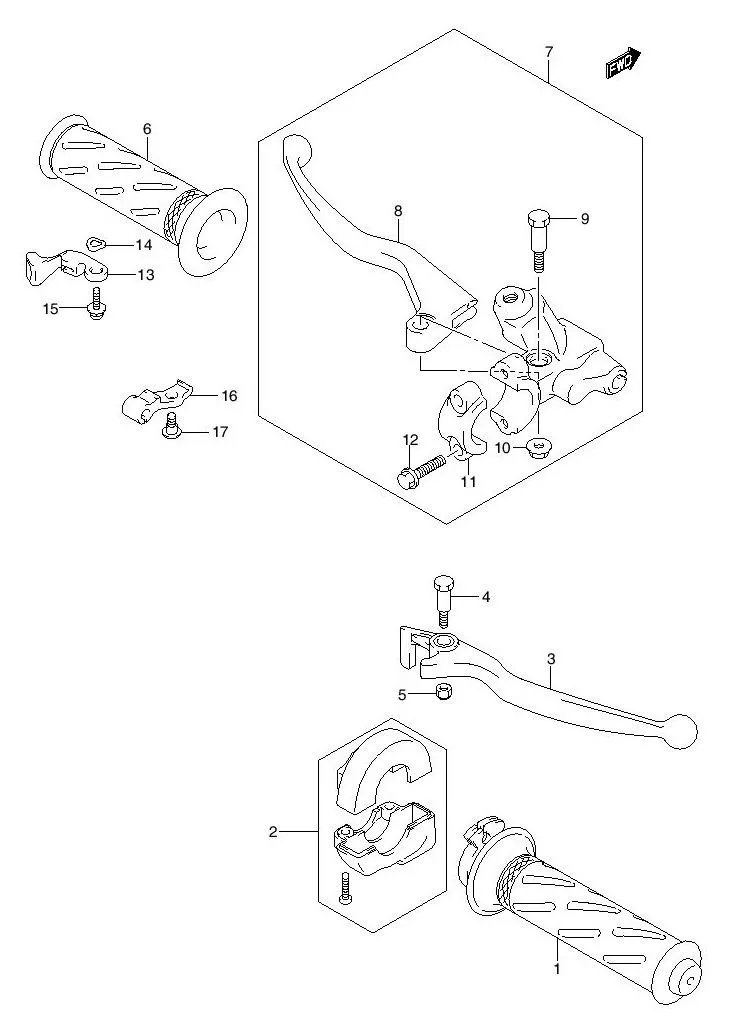

FIG.35A HANDLE LEVER FD125XRM

FIG.35A HANDLE LEVER FD125XRM
No No. Part Description Qty Price Per Pcs Remarks
1 57110-23F10-000
SUB: 57110-23F10L000		 GRIP, THROTTLE 1 Rp32.500
2 57100-09G01-000
SUB: 57100B09G00N000		 CASE ASSY, THROTTLE 1 Rp49.000
3 57421-21D10-100
SUB: 57421-21D10L000		 LEVER, BRAKE 1 Rp35.000
4 09111-06076-000
SUB: 09111B06076N000		 BOLT, PIVOT 1 Rp7.000
5 DISCONTINUE
SUB: 08319-21063L000		 NUT 1 -
6 57211-22D01-000
SUB: 57211-22D01L000		 GRIP, LH 1 Rp38.500
7 57500-09G00-000
SUB: 57500B09G00N000		 LEVER ASSY, CLUTCH 1 Rp85.500
8 57620-23F00-000 •LEVER 1 Rp59.000
9 57431-23F00-000 •BOLT, PIVOT 1 Rp8.500
10 57513-23F00-000 •NUT 1 Rp4.000
11 DISCONTINUE
SUB: 59671B09G00N000		 •HOLDER 1 -
12 57512-21D10-000
SUB: 57512-21D00-000		 •BOLT, HOLDER 2 Rp3.500
13 58721-23F00L000 LEVER, STARTER 1 Rp14.500
14 DISCONTINUE
SUB: 09164B07001N000		 WASHER 1 -
15 02112-7516A-000
SUB: 02112B75163N000		 SCREW, LEVER 1 Rp7.000
16 DISCONTINUE
SUB: 58711B09G00N000		 HOLDER, CABLE 1 -
17 09139-05057-000
SUB: 09139B05057N000		 SCREW 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
