SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.26 FRAMEFIG.27 STANDFIG.28 FOOTRESTFIG.29 FUEL TANKFIG.30 FRAME COVERFIG.31 SHIELDLEG FD125XSDFIG.31A SHIELDLEG FD125XRMFIG.32 FRONT FENDERFIG.33 HANDLE BARFIG.34 HANDLE COVERFIG.35 HANDLE LEVER FD125XSDFIG.35A HANDLE LEVER FD125XRMFIG.36 REAR FENDERFIG.37 HELMET BOXFIG.38 LABELFIG.39 SEATFIG.40 FRONT FORK DAMPERFIG.41 FRONT FORK BRACKETFIG.42 FRONT WHEEL FD125XSDFIG.42A FRONT WHEEL FD125XRMFIG.43 FRONT CALIPER FD125XSDFIG.43A FRONT CALIPER FD125XRMFIG.44 FRONT MASTER CYLINDER FD125XSDFIG.44A FRONT MASTER CYLINDER FD125XRMFIG.45 REAR SWINGARM FD125XSDFIG.45A REAR SWINGARM FD125XRMFIG.46 CHAIN CHASEFIG.47 REAR WHEEL FD125XSDFIG.47A REAR WHEEL FD125XRMFIG.48 REAR CALIPER FD125XSDFIG.49 REAR MASTER CYLINDER FD125XRM

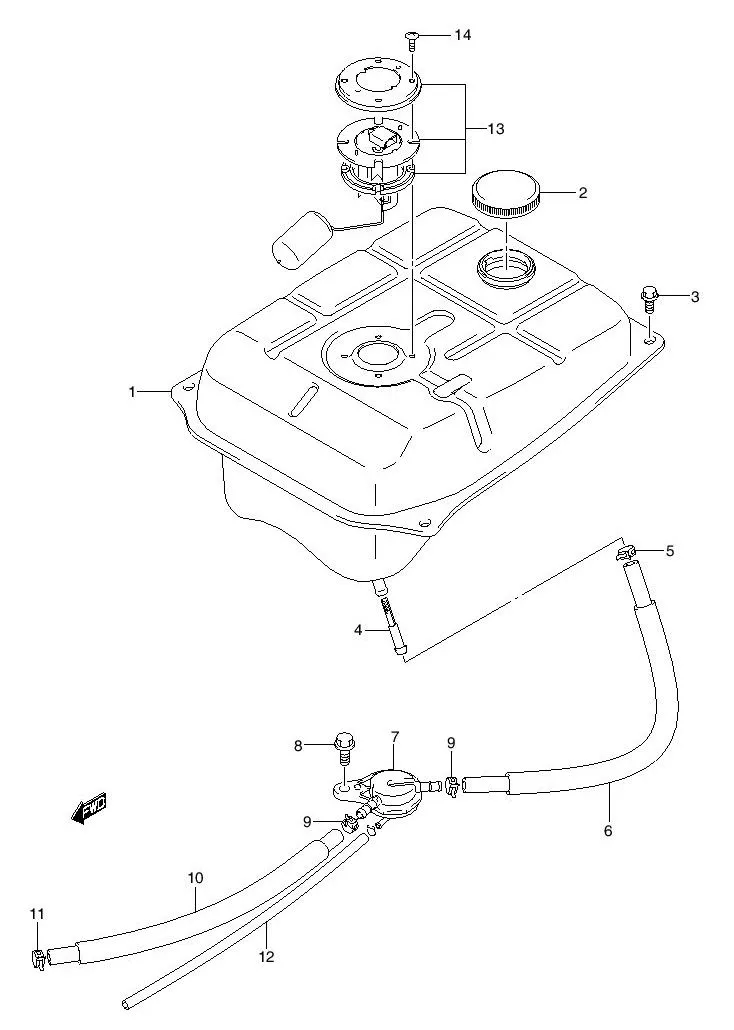

FIG.29 FUEL TANK

FIG.29 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 44110B20G01N000 TANK, FUEL 1 Rp356.000
2 44210-35014AS01 CAP ASSY, FUEL 1 Rp21.500
3 DISCONTINUE
SUB: 01550B06123N000		 BOLT 4 -
4 44322-27001-000
SUB: 44322B27001N000		 FILTER, FUEL 1 Rp16.500
5 09401-10409-000
SUB: 09401B10409N000		 CLIP 1 Rp7.500
6 44421-20G00-000
SUB: 44421B20G00N000		 HOSE, FUEL 1 Rp17.500
7 44300-09G00-000
SUB: 44300B09G00N000		 COCK ASSY, FUEL 1 Rp278.000
8 01550-0616A-000
SUB: 01550-06163-000		 BOLT, COCK 1 Rp3.500
9 09401-09403-000
SUB: 09401B09403N000		 CLIP 3 Rp3.500
10 09352-40703-230
SUB: 09352B40703N600		 HOSE, VACUUM (L:600!230) 1 Rp11.000
11 09401-06101-000
SUB: 09401B06101N000		 CLIP, VACUUM 1 Rp2.000
12 44422-20G10-000
SUB: 44422B20G00N000		 HOSE, CARB 1 Rp15.500
13 34810-20G00-000
SUB: 34810B20G00N000		 GAUGE ASSY, FUEL LEVEL 1 Rp116.500
14 02112-0512A-000
SUB: 02112B05123N000		 SCREW 4 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
