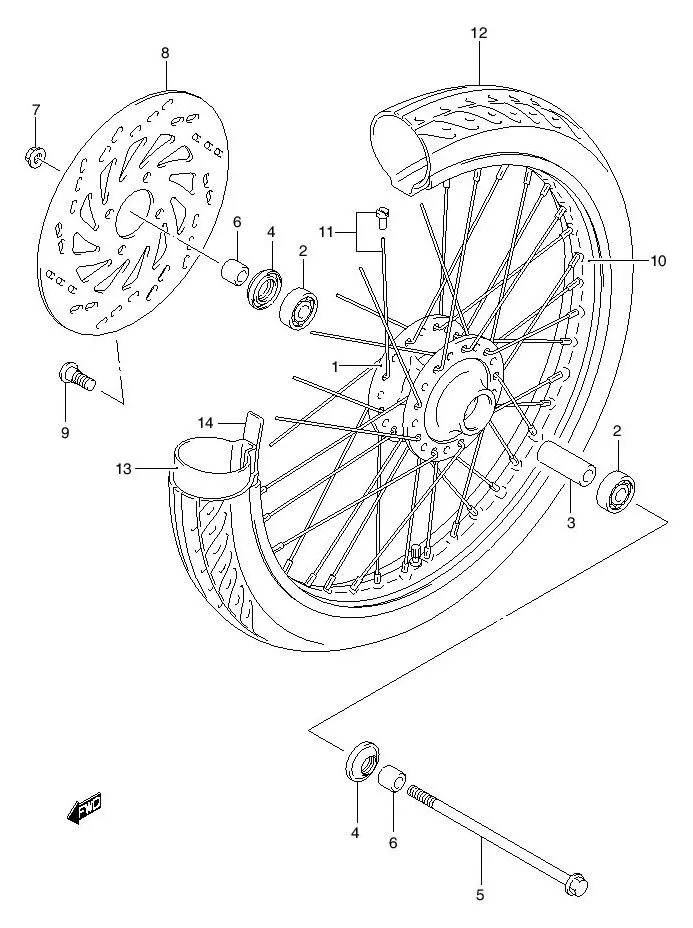

FIG.42 FRONT WHEEL FD125XSD

FIG.42 FRONT WHEEL FD125XSD
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 54111B20G00N000		 HUB, FRONT WHEEL 1 -
2 08123-63007-000
SUB: 08123-63007L000		 BEARING 2 Rp32.500
3 54731-20G00-000
SUB: 54731B20G00N000		 SPACER, FRONT HUB (10.2X16X51) 1 Rp7.500
4 09284-18003-000
SUB: 09284B18003N000		 SEAL, FRONT HUB OIL 2 Rp27.500
5 54711-13H00-000
SUB: 54711-04701L000		 AXLE, FRONT 1 Rp13.000
6 54751-20G00-000
SUB: 54751B20G00N000		 SPACER, FRONT AXLE RH 1 Rp26.000
7 08319-31108-000
SUB: 08319B31107N000		 NUT 1 Rp4.500
8 59211-09G00-018
SUB: 59211B09G00N000		 DISC, FRONT BRAKE 1 Rp213.000
9 59218-09G10-000
SUB: 59218B09G00N000		 BOLT 4 Rp7.000
10 DISCONTINUE
SUB: 55311-46100L000		 RIM, FRONT WHEEL (17X1.40) 1 -
11 55320-46100-000
SUB: 55320-46100L000		 SPOKE ASSY, FRONT WHEEL 1 Rp44.500
12 55110-20GG0-000
SUB: 55110B20G80N000		 TIRE, FRONT, 70/90-17M/C 43P 1 Rp272.500
13 DISCONTINUE
SUB: 55200B20G81N000		 TUBE ASSY, WHEEL INNER 1 -
14 55261-20G20-000 PROTECTOR, WHEEL INNER 0 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
