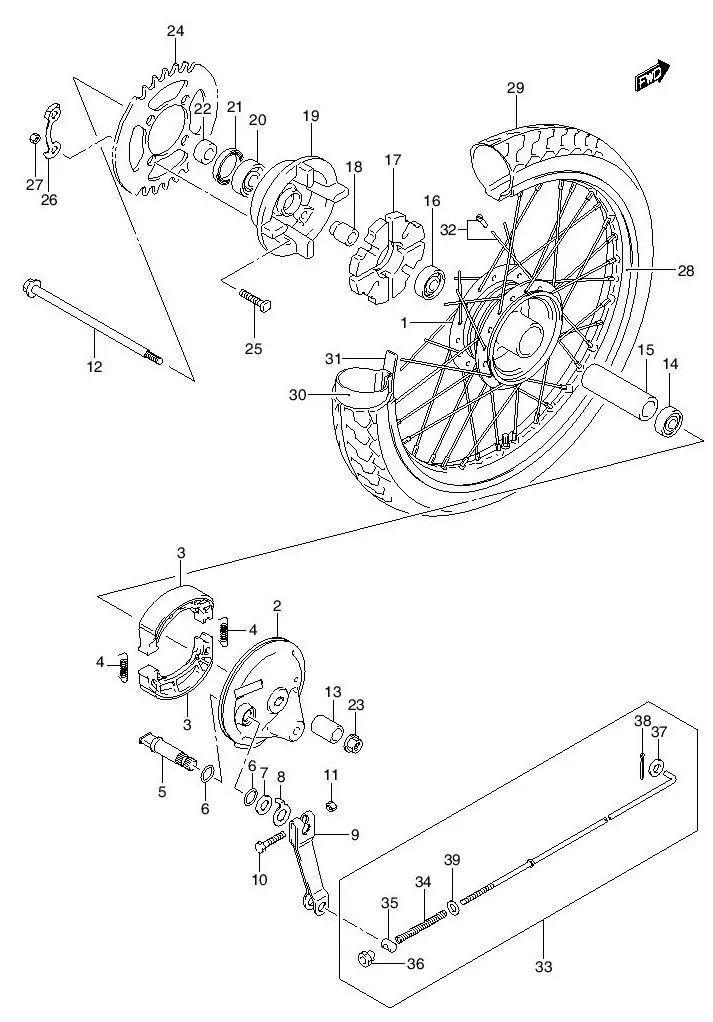

| 1 |
64110-35350-000
SUB: 64110-35350L000 |
DRUM, REAR WHEEL (SILVER) |
1 |
Rp206.000 |
| |
| 2 |
64210-46005-000
SUB: 64210-46013-000 |
PANEL, REAR BRAKE ANCHOR |
1 |
Rp71.000 |
| |
| 3-2 |
54410-35450-000
SUB: 54410-35020L000 |
BRAKE SHOE SET (ABS) |
2 |
Rp60.000 |
| |
| 3-1 |
54410-35450-000
SUB: 54410-35450L000 |
BRAKE SHOE SET (N.ABS) |
2 |
Rp60.000 |
| |
| 4 |
09443-07025-000
SUB: 09443B07025N000 |
SPRING |
2 |
Rp3.500 |
| |
| 5 |
64441-21D00-000
SUB: 64441B21D00N000 |
SHAFT, BRAKE CAM |
1 |
Rp34.500 |
| |
| 6 |
09280-14011-000
SUB: 09280B14011N000 |
O RING, RR BRAKE CAM |
2 |
Rp7.500 |
| |
| 7 |
09160-14054-000
SUB: 09160B14054N000 |
WASHER |
1 |
Rp12.500 |
| |
| 8 |
DISCONTINUE
SUB: 54492B35400N000 |
PLATE, BRAKE LINING |
1 |
- |
| |
| 9 |
64451-20G00-000
SUB: 64451B20G00N000 |
LEVER, BRAKE CAM |
1 |
Rp9.500 |
| |
| 10 |
DISCONTINUE
SUB: 09103B06045N000 |
BOLT |
1 |
- |
| |
| 11 |
08316-1006A-000
SUB: 08316-10063L000 |
NUT |
1 |
Rp2.000 |
| |
| 12 |
64711-16H00-000
SUB: 64711-31C20L000 |
AXLE, REAR |
1 |
Rp24.500 |
| |
| 13 |
DISCONTINUE
SUB: 64731-31C20L000 |
SPACER, REAR AXLE RH |
1 |
- |
| |
| 14 |
08143-63017-000
SUB: 08143-63017L000 |
BEARING, RH |
1 |
Rp30.500 |
| |
| 15 |
09180-12145-000
SUB: 09180B12145N000 |
SPACER, BEARING (12.5X19X58) |
1 |
Rp9.500 |
| |
| 16 |
08143-62017-001
SUB: 08143-62017L000 |
BEARING, LH |
1 |
Rp24.500 |
| |
| 17 |
64651-30D60-000
SUB: 64651B30D60N000 |
ABSORBER, REAR HUB SHOCK |
1 |
Rp25.000 |
| |
| 18 |
64733-43000-000
SUB: 64733B43000N000 |
RETAINER, REAR SPROCKET DRUM |
1 |
Rp15.500 |
| |
| 19 |
64611-01001-000
SUB: 64611-01001L000 |
DRUM, SPROCKET MOUNTING |
1 |
Rp122.000 |
| |
| 20 |
08113-62037L000 |
BEARING |
1 |
Rp34.000 |
| |
| 21 |
09285-25008-000
SUB: 09285-25003L000 |
SEAL, OIL (25X40X6) |
1 |
Rp8.000 |
| |
| 22 |
DISCONTINUE
SUB: 64721-35500L000 |
SPACER, RR SPROCKET DRUM |
1 |
- |
| |
| 23 |
08319-31128-000
SUB: 08319B31128N000 |
NUT |
1 |
Rp7.500 |
| |
| 24 |
64511-354B0AS01 |
SPROCKET, REAR (NT:34) |
1 |
Rp109.500 |
| |
| 25 |
09105-08011-000
SUB: 09105-08011L000 |
BOLT, REAR SPROCKET |
4 |
Rp6.500 |
| |
| 26 |
09169-08011-000
SUB: 09169B08011N000 |
LOCK WASHER |
2 |
Rp3.500 |
| |
| 27 |
DISCONTINUE
SUB: 08310B00083N000 |
NUT |
4 |
- |
| |
| 28 |
65311-16H40-000
SUB: 65311-46730L000 |
WHEEL RIM (1.60X17) |
1 |
Rp348.500 |
| |
| 29 |
65110-20GG0-000
SUB: 65110B20G20N000 |
TIRE, REAR, 80/90-17M/C 44P |
1 |
Rp329.000 |
| |
| 30 |
DISCONTINUE
SUB: 65200B20G81N000 |
TUBE ASSY, INNER |
1 |
- |
| |
| 31 |
55261B20G00N000 |
PROTECTOR, INNER TUBE |
1 |
- |
| |
| 32 |
65320-03021-000
SUB: 65320-03021L000 |
SPOKE SET, REAR WHEEL |
1 |
Rp43.500 |
| |
| 33 |
43300-20G00-000
SUB: 43300B20G00N000 |
ROD ASSY, REAR BRAKE |
1 |
Rp34.500 |
| |
| 34 |
09440-09004-000
SUB: 09440-09004L000 |
•SPRING |
1 |
Rp12.500 |
| |
| 35 |
09209-11002-000
SUB: 09209B11002N000 |
•PIN |
1 |
Rp7.500 |
| |
| 36 |
09150-06001-000
SUB: 09150-06014-000 |
•NUT |
1 |
Rp9.500 |
| |
| 37 |
08322-0105A-000
SUB: 08322B01053N000 |
•WASHER |
1 |
Rp3.000 |
| |
| 38 |
DISCONTINUE
SUB: 04111-20208L000 |
•PIN, COTTER |
1 |
- |
| |
| 39 |
DISCONTINUE
SUB: 08322B01063N000 |
•WASHER, REAR |
1 |
- |
| |
