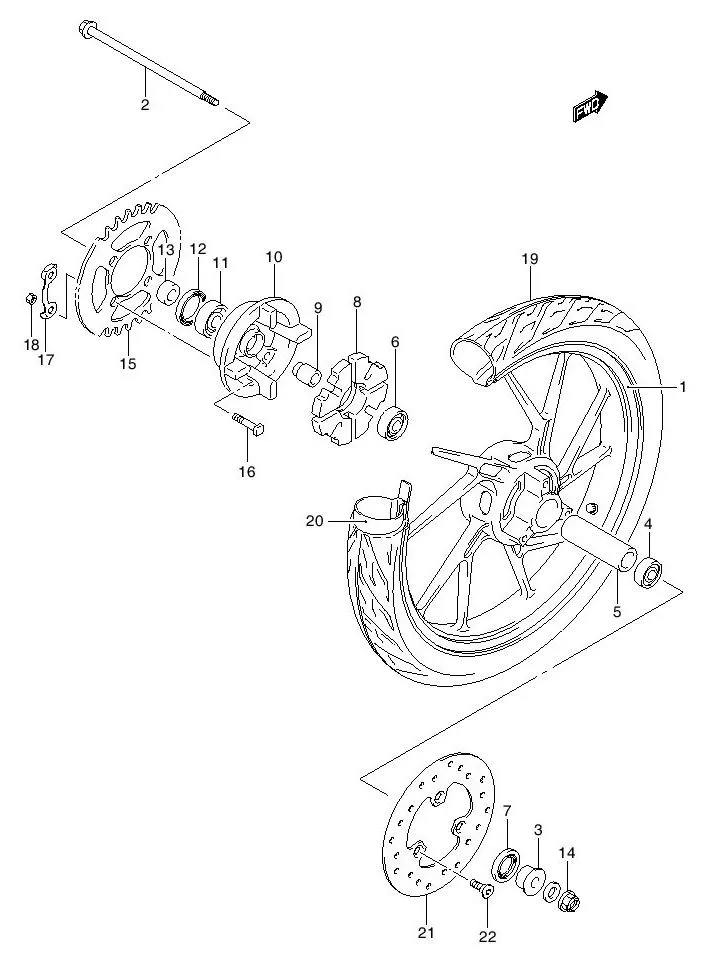

FIG.47A REAR WHEEL FD125XRM

FIG.47A REAR WHEEL FD125XRM
No No. Part Description Qty Price Per Pcs Remarks
1 64111-25G40-YSW
SUB: 64111B25G40NYSW		 WHEEL,REAR(17X1.85) (MATT BLACK) 1 Rp763.500
2 64711-16H00-000
SUB: 64711-31C20L000		 AXLE, REAR 1 Rp24.500
3 64741-25G00-000
SUB: 64741B25G00N000		 SPACER, REAR AXLE RH 1 Rp18.500
4 08113-63017-000
SUB: 08113-63010L000		 BEARING, RH 1 Rp29.500
5 09180-12086-000
SUB: 09180B12086N000		 SPACER, BEARING 1 Rp44.000
6 08143-62017-001
SUB: 08143-62017L000		 BEARING, LH 1 Rp24.500
7 09285-25008-000
SUB: 09285-25003L000		 SEAL, OIL (25X40X6) 1 Rp8.000
8 64651-30D60-000
SUB: 64651-30D00L000		 ABSORBER, REAR HUB SHOCK 1 Rp25.000
9 64733-43000-000
SUB: 64733B43000N000		 RETAINER, REAR SPROCKET DRUM 1 Rp15.500
10 64611-01001-000
SUB: 64611-01001L000		 DRUM, SPROCKET MOUNTING 1 Rp122.000
11 08113-62037L000 BEARING 1 Rp34.000
12 09285-25008-000
SUB: 09285-25003L000		 SEAL, OIL (25X40X6) 1 Rp8.000
13 64721-20G00-000
SUB: 64721B20G00N000		 SPACER, RR SPROCKET DRUM 1 Rp23.500
14 08319-31128-000
SUB: 08319B31128N000		 NUT 1 Rp7.500
15 64511-354B0-000
SUB: 64511-354B0L000		 SPROCKET, REAR (NT:35) 1 Rp108.000
16 09105-08011-000
SUB: 09105-08011L000		 BOLT, REAR SPROCKET 4 Rp6.500
17 09169-08011-000
SUB: 09169B08011N000		 LOCK WASHER 2 Rp3.500
18 DISCONTINUE
SUB: 08310B00083N000		 NUT 4 -
19 65110-20GG0-000
SUB: 65110B20G20N000		 TIRE, REAR, 80/90-17M/C 44P 1 Rp329.000
20 DISCONTINUE
SUB: 65200B20G81N000		 TUBE ASSY, INNER 1 -
21 69211-25G40-000
SUB: 69211B25G00N000		 DISC, REAR BRAKE 1 Rp240.500
22 59218-09G10-000
SUB: 59218B09G00N000		 BOLT, DISC 3 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
