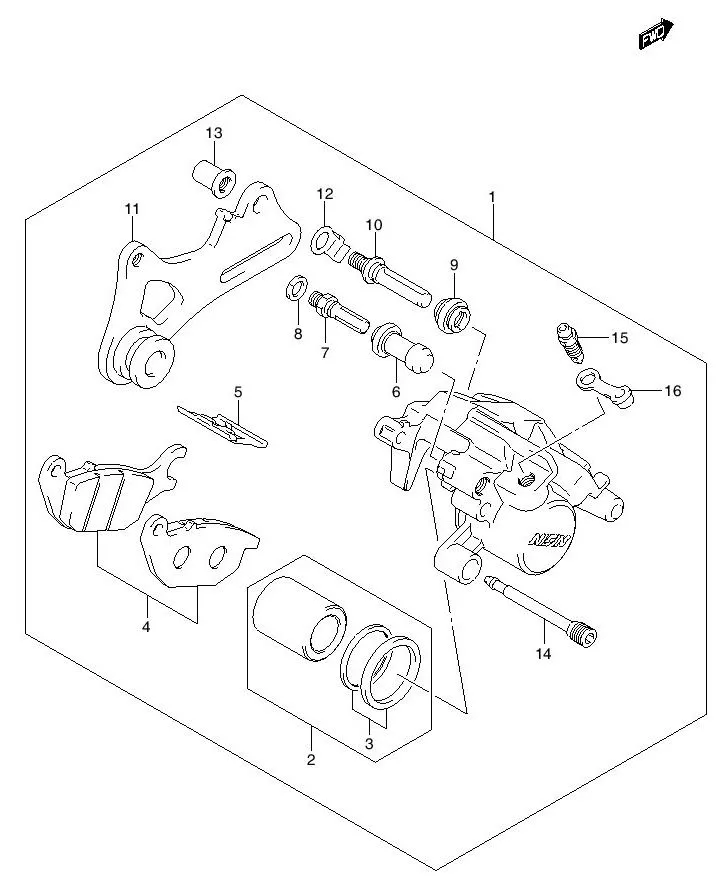

FIG.48 REAR CALIPER FD125XSD

FIG.48 REAR CALIPER FD125XSD
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 69100B20G11NZ00		 CALIPER ASSY, REAR (GOLD) 1 - FD125XRMK4
2 DISCONTINUE
SUB: 69100B20830N000		 •PISTON SET 1 - FD125XRMK4
3 59101-38870-000
SUB: 59101B38870N000		 ••SEAL SET, PISTON 1 Rp38.500 FD125XRMK4
4 69100-20840-000
SUB: 69100B20840N000		 •PAD SET 1 Rp90.000
5 69115-20G01-000
SUB: 69115B20G01N000		 •SPRING 1 Rp35.000
6 59386-13A00-000
SUB: 59386-13A00L000		 •BOOT 1 Rp14.000
7 59382-13A00-000
SUB: 59382-13A00L000		 •PIN 1 Rp13.500
8 59314-13A00-000
SUB: 59314-13A00L000		 •WASHER, SPRING 1 Rp3.000
9 59303-14500-000
SUB: 59303-14500L000		 •BOOT 1 Rp12.500
10 59387-00B20-000
SUB: 59387-00B20L000		 •PIN 1 Rp25.500
11 DISCONTINUE
SUB: 69721B20G10N000		 •BRACKET 1 -
12 69116-20G00-000
SUB: 69116B20G00N000		 •RETAINER, BRACKET 1 Rp16.000
13 59388-00B20-000
SUB: 59388-00B20L000		 •NUT 1 Rp28.500
14 59345-00B20-000
SUB: 59345B00B20N000		 •PIN 1 Rp26.000 FD125XRMK4
15 59121-01A00-000
SUB: 59121-01A00L000		 •BLEEDER 1 Rp14.500
16 59122-01A00-000
SUB: 59122-01A00L000		 •CAP 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
