SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.26 FRAMEFIG.27 STANDFIG.28 FOOTRESTFIG.29 FUEL TANKFIG.30 FRAME COVERFIG.31 SHIELDLEG FD125XSDFIG.31A SHIELDLEG FD125XRMFIG.32 FRONT FENDERFIG.33 HANDLE BARFIG.34 HANDLE COVERFIG.35 HANDLE LEVER FD125XSDFIG.35A HANDLE LEVER FD125XRMFIG.36 REAR FENDERFIG.37 HELMET BOXFIG.38 LABELFIG.39 SEATFIG.40 FRONT FORK DAMPERFIG.41 FRONT FORK BRACKETFIG.42 FRONT WHEEL FD125XSDFIG.42A FRONT WHEEL FD125XRMFIG.43 FRONT CALIPER FD125XSDFIG.43A FRONT CALIPER FD125XRMFIG.44 FRONT MASTER CYLINDER FD125XSDFIG.44A FRONT MASTER CYLINDER FD125XRMFIG.45 REAR SWINGARM FD125XSDFIG.45A REAR SWINGARM FD125XRMFIG.46 CHAIN CHASEFIG.47 REAR WHEEL FD125XSDFIG.47A REAR WHEEL FD125XRMFIG.48 REAR CALIPER FD125XSDFIG.49 REAR MASTER CYLINDER FD125XRM

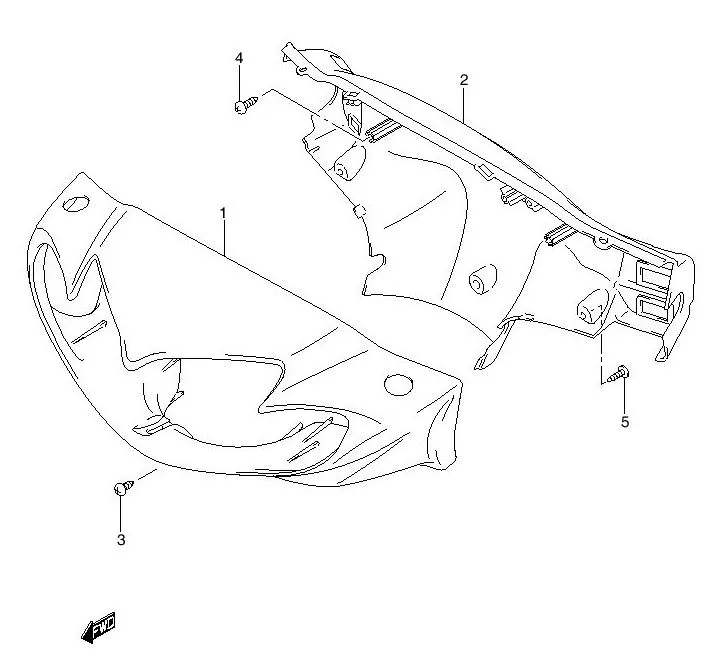

FIG.34 HANDLE COVER

FIG.34 HANDLE COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 56311B20G00N038		 COVER HANDLE FRONT (AURA YELLOW) 1 - FD125XSD ; FD125XRD
1-3 56311-20G00-079
SUB: 56311B20G00N079		 COVER HANDLE FRONT (CELEB RED) 1 Rp185.000 FD125XSD ; FD125XRD
1-4 DISCONTINUE
SUB: 56311B20G00N113		 COVER HANDLE FRONT (ORANGE PEARL) 1 - FD125XSD ; FD125XRD
1-5 56311-20G00-334
SUB: 56311B20G00N334		 COVER HANDLE FRONT (M.BLUE PEARL) 1 Rp224.500 FD125XSD ; FD125XRD
1-6 56311-20G00-735
SUB: 56311B20G00N735		 COVER HANDLE FRONT (SOL SILVER) 1 Rp184.000 FD125XSD ; FD125XRD
1-7 56311-20G00-X0H
SUB: 56311B20G00NX0H		 COVER HANDLE FRONT (TITAN BLACK) 1 Rp201.000 FD125XSD ; FD125XRD
1-8 DISCONTINUE
SUB: 56311B20G00NX1G		 COVER HANDLE FRONT (STRONGER RED) 1 - FD125XSD ; FD125XRD
1-9 DISCONTINUE
SUB: 56311B20G00NX2J		 COVER HANDLE FRONT (MACHO BRIGHT BLUE) 1 - FD125XSD ; FD125XRD
1-10 56311-20G20-019
SUB: 56311B20G20N019		 COVER HANLDE FRONT (BLACK) 1 Rp224.500 FD125XRM
1-11 56311-20G20-X0H
SUB: 56311B20G20NX0H		 COVER HANDLE FRONT (TITAN BLACK) 1 Rp289.000 FD125XRM
1-1 56311-20G00-019
SUB: 56311B20G00N019		 COVER HANDLE FRONT (BLACK) 1 Rp194.500 FD125XSD ; FD125XRD
2-2 56321-20G10-038
SUB: 56321B20G10N038		 COVER HANDLE REAR (AURA YELLOW) 1 Rp66.500 FD125XSD ; FD125XRD
2-10 56321-20G10-X2J
SUB: 56321B20G10NX2J		 COVER HANDLE REAR (MACHO BRIGHT BLUE) 1 Rp66.500 FD125XRM
2-9 56321-20G10-X1G
SUB: 56321B20G10NX1G		 COVER HANDLE REAR (STRONGER RED) 1 Rp66.500 FD125XRM
2-8 56321-20G10-X0G
SUB: 56321B20G10NX0G		 COVER HANDLE REAR (BRILIANT WHITE) 1 Rp66.500 FD125XRM
2-7 56321-20G10-X0H
SUB: 56321B20G10NX0H		 COVER HANDLE REAR (TITAN BLACK) 1 Rp67.500 FD125XSD ; FD125XRD
2-6 DISCONTINUE
SUB: 56321B20G10N532		 COVER HANDLE REAR (SHADOW BLUE) 1 - FD125XSD ; FD125XRD
2-5 56321-20G10-334
SUB: 56321B20G10N334		 COVER HANDLE REAR (M.BLUE PEARL) 1 Rp66.500 FD125XSD ; FD125XRD
2-4 DISCONTINUE
SUB: 56321B20G10N113		 COVER HANDLE REAR (ORANGE PEARL) 1 - FD125XSD ; FD125XRD
2-3 56321-20G10-079
SUB: 56321B20G10N079		 COVER HANDLE REAR (CELEB RED) 1 Rp66.500 FD125XSD ; FD125XRD
2-1 56321-20G10-019
SUB: 56321B20G10N019		 COVER HANDLE REAR (BLACK) 1 Rp62.000 FD125XSD ; FD125XRD
3 02142-0512A-000
SUB: 02142B05123N000		 SCREW, FRONT 2 Rp3.500
4 03511-0516A-000
SUB: 03512-05163-000		 SCREW, UPPER 2 Rp5.500
5 03541-0416B-000
SUB: 03541B04163N000		 SCREW, SIDE 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
