SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.26 FRAMEFIG.27 STANDFIG.28 FOOTRESTFIG.29 FUEL TANKFIG.30 FRAME COVERFIG.31 SHIELDLEG FD125XSDFIG.31A SHIELDLEG FD125XRMFIG.32 FRONT FENDERFIG.33 HANDLE BARFIG.34 HANDLE COVERFIG.35 HANDLE LEVER FD125XSDFIG.35A HANDLE LEVER FD125XRMFIG.36 REAR FENDERFIG.37 HELMET BOXFIG.38 LABELFIG.39 SEATFIG.40 FRONT FORK DAMPERFIG.41 FRONT FORK BRACKETFIG.42 FRONT WHEEL FD125XSDFIG.42A FRONT WHEEL FD125XRMFIG.43 FRONT CALIPER FD125XSDFIG.43A FRONT CALIPER FD125XRMFIG.44 FRONT MASTER CYLINDER FD125XSDFIG.44A FRONT MASTER CYLINDER FD125XRMFIG.45 REAR SWINGARM FD125XSDFIG.45A REAR SWINGARM FD125XRMFIG.46 CHAIN CHASEFIG.47 REAR WHEEL FD125XSDFIG.47A REAR WHEEL FD125XRMFIG.48 REAR CALIPER FD125XSDFIG.49 REAR MASTER CYLINDER FD125XRM

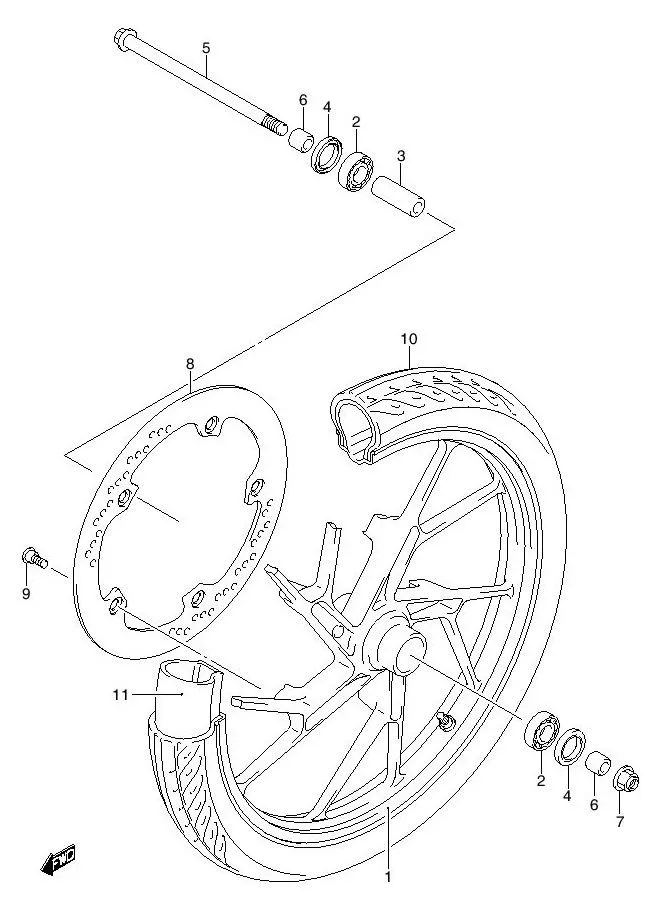

FIG.42A FRONT WHEEL FD125XRM

FIG.42A FRONT WHEEL FD125XRM
No No. Part Description Qty Price Per Pcs Remarks
1 54111-25G40-YSW
SUB: 54111B25G00N000		 WHEEL, FRONT 1 Rp782.500
2 08113-63017-000
SUB: 08113-63010L000		 BEARING 2 Rp29.500
3 09180-12145-000
SUB: 09180B12145N000		 SPACER, FRONT HUB 1 Rp9.500
4 09285-25008-000
SUB: 09285-25003L000		 SEAL, FRONT HUB OIL 2 Rp8.000
5 09103-12046-000
SUB: 64711B09G00N000		 AXLE, FRONT 1 Rp21.500
6 54751-25G01-000
SUB: 54751B25G00N000		 SPACER, FRONT AXLE RH 1 Rp17.500
7 08319-31128-000
SUB: 08319B31128N000		 NUT 1 Rp7.500
8 59211-25G40-000
SUB: 59211B25G00N000		 DISC, FRONT BRAKE 1 Rp333.000
9 59218-09G10-000
SUB: 59218B09G00N000		 BOLT 5 Rp7.000
10 55110-20GG0-000
SUB: 55110B20G80N000		 TIRE, FRONT, 70/90-17M/C 43P 1 Rp272.500
11 DISCONTINUE
SUB: 55200B20G81N000		 TUBE ASSY, WHEEL INNER 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
