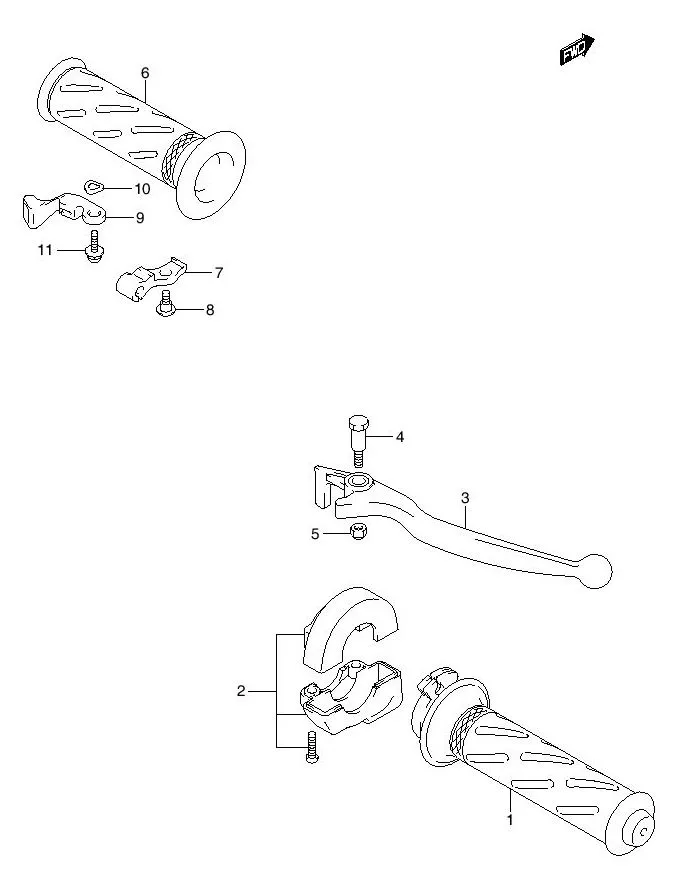

FIG.35 HANDLE LEVER FD125XSD

FIG.35 HANDLE LEVER FD125XSD
No No. Part Description Qty Price Per Pcs Remarks
1 57110-23F10-000
SUB: 57110-23F10L000		 GRIP, THROTTLE 1 Rp32.500
2 57100-09G11-000
SUB: 57100B09G10N000		 CASE ASSY, THROTTLE 1 Rp19.500
3 57421-21D10-100
SUB: 57421-21D10L000		 LEVER, BRAKE 1 Rp35.000
4 09111-06076-000
SUB: 09111B06076N000		 BOLT 1 Rp7.000
5 DISCONTINUE
SUB: 08319-21063L000		 NUT 1 -
6 57211-22D01-000
SUB: 57211-22D01L000		 GRIP, LH 1 Rp38.500
7 DISCONTINUE
SUB: 58711B09G00N000		 HOLDER, STARTER CABLE 1 -
8 09139-05057-000
SUB: 09139B05057N000		 SCREW 1 Rp6.500
9 58721-23F00L000 LEVER, STARTER 1 Rp14.500
10 DISCONTINUE
SUB: 09164B07001N000		 WASHER 1 -
11 02112-7516A-000
SUB: 02112B75163N000		 SCREW 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
