SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.26 FRAMEFIG.27 STANDFIG.28 FOOTRESTFIG.29 FUEL TANKFIG.30 FRAME COVERFIG.31 SHIELDLEG FD125XSDFIG.31A SHIELDLEG FD125XRMFIG.32 FRONT FENDERFIG.33 HANDLE BARFIG.34 HANDLE COVERFIG.35 HANDLE LEVER FD125XSDFIG.35A HANDLE LEVER FD125XRMFIG.36 REAR FENDERFIG.37 HELMET BOXFIG.38 LABELFIG.39 SEATFIG.40 FRONT FORK DAMPERFIG.41 FRONT FORK BRACKETFIG.42 FRONT WHEEL FD125XSDFIG.42A FRONT WHEEL FD125XRMFIG.43 FRONT CALIPER FD125XSDFIG.43A FRONT CALIPER FD125XRMFIG.44 FRONT MASTER CYLINDER FD125XSDFIG.44A FRONT MASTER CYLINDER FD125XRMFIG.45 REAR SWINGARM FD125XSDFIG.45A REAR SWINGARM FD125XRMFIG.46 CHAIN CHASEFIG.47 REAR WHEEL FD125XSDFIG.47A REAR WHEEL FD125XRMFIG.48 REAR CALIPER FD125XSDFIG.49 REAR MASTER CYLINDER FD125XRM

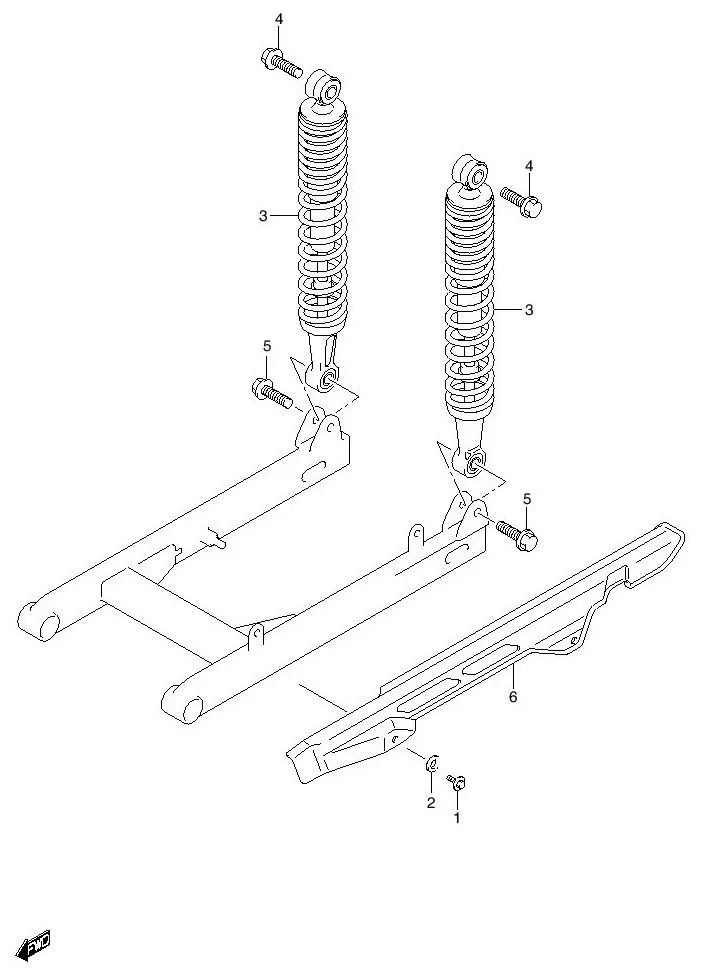

FIG.46 CHAIN CHASE

FIG.46 CHAIN CHASE
No No. Part Description Qty Price Per Pcs Remarks
1 61311-20G00-000
SUB: 61311B20G00N000		 CASE, CHAIN 1 Rp40.000
2 61361-09G00-000
SUB: 61361B09G00N000		 BOLT, CHAIN CASE 2 Rp4.000
3-1 62100-20G21-000
SUB: 62100B20G20N000		 ABSORBER ASSY, REAR SHOCK 2 Rp358.000 FD125XSD
3-2 62100-20GB0-000
SUB: 62100B20GB0N000		 ABSORBER ASSY, REAR SHOCK (RED) 2 Rp373.000 FD125XRM
4 01550-1035B-000
SUB: 01550B10353N000		 BOLT, UPPER 2 Rp5.000
5 09103-10229-000
SUB: 09103B10229N000		 BOLT, LOWER 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
