SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.26 FRAMEFIG.27 STANDFIG.28 FOOTRESTFIG.29 FUEL TANKFIG.30 FRAME COVERFIG.31 SHIELDLEG FD125XSDFIG.31A SHIELDLEG FD125XRMFIG.32 FRONT FENDERFIG.33 HANDLE BARFIG.34 HANDLE COVERFIG.35 HANDLE LEVER FD125XSDFIG.35A HANDLE LEVER FD125XRMFIG.36 REAR FENDERFIG.37 HELMET BOXFIG.38 LABELFIG.39 SEATFIG.40 FRONT FORK DAMPERFIG.41 FRONT FORK BRACKETFIG.42 FRONT WHEEL FD125XSDFIG.42A FRONT WHEEL FD125XRMFIG.43 FRONT CALIPER FD125XSDFIG.43A FRONT CALIPER FD125XRMFIG.44 FRONT MASTER CYLINDER FD125XSDFIG.44A FRONT MASTER CYLINDER FD125XRMFIG.45 REAR SWINGARM FD125XSDFIG.45A REAR SWINGARM FD125XRMFIG.46 CHAIN CHASEFIG.47 REAR WHEEL FD125XSDFIG.47A REAR WHEEL FD125XRMFIG.48 REAR CALIPER FD125XSDFIG.49 REAR MASTER CYLINDER FD125XRM

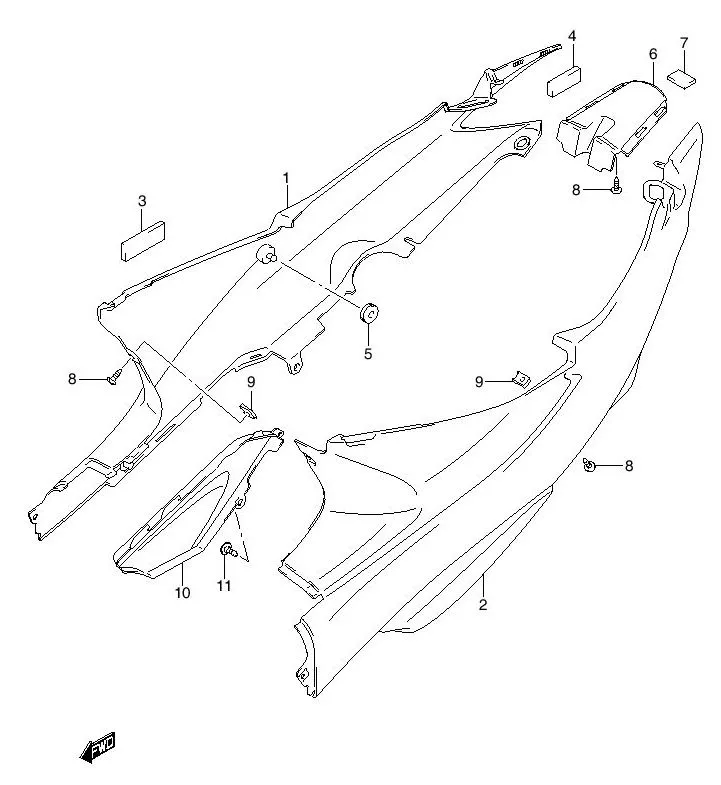

FIG.30 FRAME COVER

FIG.30 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 47111-20G20-079
SUB: 47111B20G20N079		 COVER FRAME RH (CELEB RED) 1 Rp173.000 FD125XSD ; FD125XRD ; FD125XRM
1-3 47111-20G20-334
SUB: 47111B20G20N334		 COVER FRAME RH (M.BLUE P) 1 Rp173.000 FD125XSD ; FD125XRD ; FD125XRM
1-4 DISCONTINUE
SUB: 47111B20G20N532		 COVER FRAME RH (SHADOW B) 1 - FD125XSD ; FD125XRD ; FD125XRM
1-1 47111-20G20-019
SUB: 47111B20G20N019		 COVER FRAME RH (BLACK) 1 Rp167.500 FD125XSD ; FD125XRD ; FD125XRM
2-1 47211-20G20-019
SUB: 47211B20G20N019		 COVER FRAME LH (BLACK) 1 Rp167.500 FD125XSD ; FD125XRD ; FD125XRM
2-2 47211-20G20-079
SUB: 47211B20G20N079		 COVER FRAME LH (CELEB RED) 1 Rp173.000 FD125XSD ; FD125XRD ; FD125XRM
2-3 47211-20G20-334
SUB: 47211B20G20N334		 COVER FRAME LH (M.BLUE P) 1 Rp173.000 FD125XSD ; FD125XRD ; FD125XRM
2-4 DISCONTINUE
SUB: 47211B20G20N532		 COVER FRAME LH (SHADOW B) 1 - FD125XSD ; FD125XRD ; FD125XRM
3 47161-20G00-000 CUSHION, FRONT 2 Rp7.500
4 33652-35400-000
SUB: 33652B35400N000		 CUSHION, REAR 2 Rp7.000
5 48169-12JA0-000
SUB: 09320B08018N000		 CUSHION 4 Rp15.000
6-2 47311-20G00-019
SUB: 47311B20G00N019		 COVER FRAME CENTER (BLACK) 1 Rp172.500 FD125XSD ; FD125XRD
6-9 47311-20G10-X0H
SUB: 47311B20G10NX0H		 COVER FRAME CENTER TITAN BLACK 0 Rp213.000 FD125XRM
6-8 DISCONTINUE
SUB: 47311B20G10N189		 COVER FRAME CENTER (WHITE) 0 - FD125XRM
6-7 47311-20G10-019
SUB: 47311B20G10N019		 COVER FRAME CENTER (BLACK) 1 Rp207.500 FD125XRM
6-6 47311-20G00-735
SUB: 47311B20G00N735		 COVER FRAME CENTER SOLARIZE SILVER 1 Rp172.500 FD125XSD ; FD125XRD
6-5 DISCONTINUE
SUB: 47311B20G00N532		 COVER FRAME CENTER (SHADOW BLUE) 1 - FD125XSD ; FD125XRD
6-4 47311-20G00-334
SUB: 47311B20G00N334		 COVER FRAME CENTER(BLUE PEARL) 1 Rp172.500 FD125XSD ; FD125XRD
6-3 47311-20G00-079
SUB: 47311B20G00N079		 COVER FRAME CENTER (CEL'RED) 1 Rp175.000 FD125XSD ; FD125XRD
6-1 47311-20G00-000
SUB: 47311B20G00N000		 COVER FRAME CENTRE 1 Rp34.500 FD125XSD ; FD125XRD
7 DISCONTINUE
SUB: 47165B09G00N000		 CUSHION 1 -
8 03541-0516A-000
SUB: 03541B05163N000		 SCREW 8 Rp3.500
9 09148-05038-000
SUB: 09148B05038N000		 NUT 8 Rp4.000
10 47112-20G00-000
SUB: 47112B20G00N000		 COVER, FRAME LOWER RH 1 Rp28.000
11 09139-06083-000
SUB: 09139B06083N000		 SCREW 3 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
