SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.26 FRAMEFIG.27 STANDFIG.28 FOOTRESTFIG.29 FUEL TANKFIG.30 FRAME COVERFIG.31 SHIELDLEG FD125XSDFIG.31A SHIELDLEG FD125XRMFIG.32 FRONT FENDERFIG.33 HANDLE BARFIG.34 HANDLE COVERFIG.35 HANDLE LEVER FD125XSDFIG.35A HANDLE LEVER FD125XRMFIG.36 REAR FENDERFIG.37 HELMET BOXFIG.38 LABELFIG.39 SEATFIG.40 FRONT FORK DAMPERFIG.41 FRONT FORK BRACKETFIG.42 FRONT WHEEL FD125XSDFIG.42A FRONT WHEEL FD125XRMFIG.43 FRONT CALIPER FD125XSDFIG.43A FRONT CALIPER FD125XRMFIG.44 FRONT MASTER CYLINDER FD125XSDFIG.44A FRONT MASTER CYLINDER FD125XRMFIG.45 REAR SWINGARM FD125XSDFIG.45A REAR SWINGARM FD125XRMFIG.46 CHAIN CHASEFIG.47 REAR WHEEL FD125XSDFIG.47A REAR WHEEL FD125XRMFIG.48 REAR CALIPER FD125XSDFIG.49 REAR MASTER CYLINDER FD125XRM

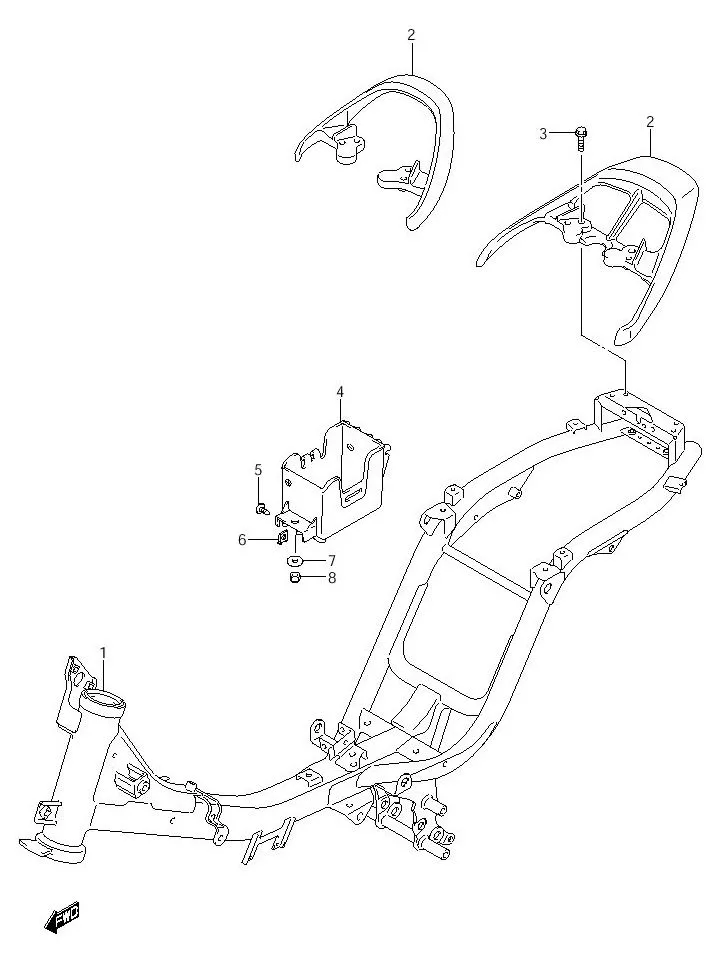

FIG.26 FRAME

FIG.26 FRAME
No No. Part Description Qty Price Per Pcs Remarks
1-1 DISCONTINUE
SUB: 41100B20G10N000		 FRAME 1 - FD125XSD
1-2 DISCONTINUE
SUB: 41100B20G20N000		 FRAME 1 - FD125XRD ; FD125XRM
2-1 DISCONTINUE
SUB: 46211B20G00N000		 HANDLE, PILLION RIDER 1 - FD125XSD ; FD125XRD
2-2 46211-20G10-000
SUB: 46211B20G10N000		 HANDLE, PILLION RIDER 1 Rp158.000 FD125XRM
3 01550-0830B-000
SUB: 01550-08303L000		 BOLT 4 Rp3.000
4 41541-20G00-000
SUB: 41541B20G00N000		 HOLDER, BATTERY 1 Rp39.500
5 03541-0512A-000
SUB: 03541-05123L000		 SCREW 1 Rp3.500
6 09148-05038-000
SUB: 09148B05038N000		 NUT 1 Rp4.000
7 09160-06109-000 WASHER 1 Rp13.000
8 DISCONTINUE
SUB: 08319-21063L000		 NUT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
