SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.26 FRAMEFIG.27 STANDFIG.28 FOOTRESTFIG.29 FUEL TANKFIG.30 FRAME COVERFIG.31 SHIELDLEG FD125XSDFIG.31A SHIELDLEG FD125XRMFIG.32 FRONT FENDERFIG.33 HANDLE BARFIG.34 HANDLE COVERFIG.35 HANDLE LEVER FD125XSDFIG.35A HANDLE LEVER FD125XRMFIG.36 REAR FENDERFIG.37 HELMET BOXFIG.38 LABELFIG.39 SEATFIG.40 FRONT FORK DAMPERFIG.41 FRONT FORK BRACKETFIG.42 FRONT WHEEL FD125XSDFIG.42A FRONT WHEEL FD125XRMFIG.43 FRONT CALIPER FD125XSDFIG.43A FRONT CALIPER FD125XRMFIG.44 FRONT MASTER CYLINDER FD125XSDFIG.44A FRONT MASTER CYLINDER FD125XRMFIG.45 REAR SWINGARM FD125XSDFIG.45A REAR SWINGARM FD125XRMFIG.46 CHAIN CHASEFIG.47 REAR WHEEL FD125XSDFIG.47A REAR WHEEL FD125XRMFIG.48 REAR CALIPER FD125XSDFIG.49 REAR MASTER CYLINDER FD125XRM

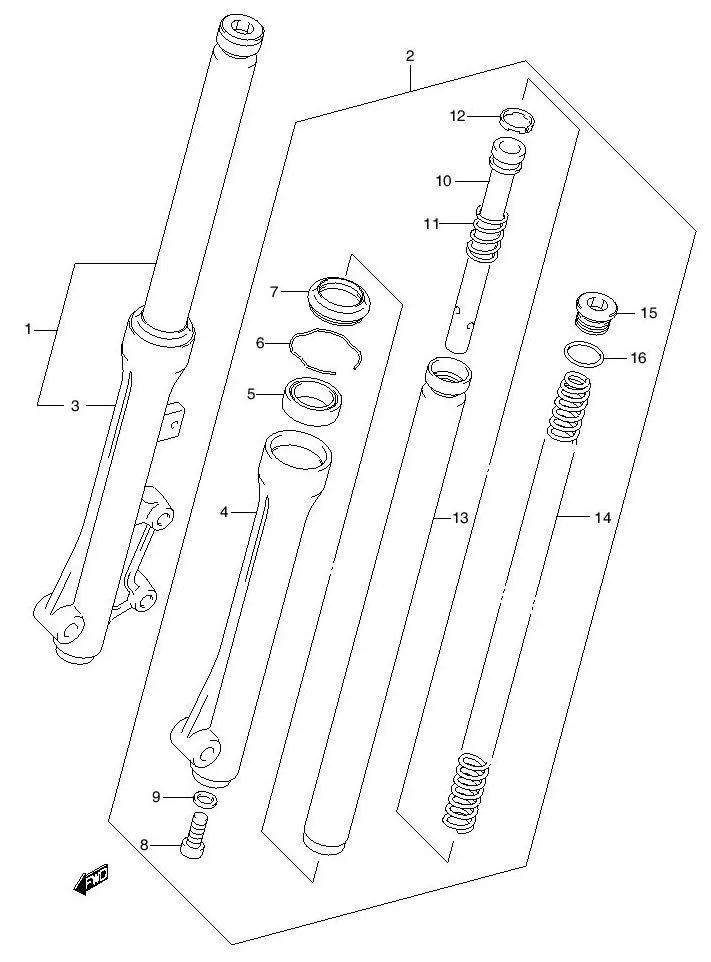

FIG.40 FRONT FORK DAMPER

FIG.40 FRONT FORK DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 51103B20G70N000		 DAMPER ASSY, FRONT FORK RH 1 -
1-1 DISCONTINUE
SUB: 51103B20G10N000		 DAMPER ASSY, FRONT FORK RH 1 -
2-1 DISCONTINUE
SUB: 51104B20G10N000		 DAMPER ASSY, FRONT FORK LH 1 -
2-2 DISCONTINUE
SUB: 51104B20G70N000		 DAMPER ASSY, FRONT FORK LH 1 -
3-1 DISCONTINUE
SUB: 51130B20G10N000		 ?TUBE, OUTER RH 1 -
3-2 DISCONTINUE
SUB: 51130B20G60N000		 ?TUBE, OUTER RH 1 -
4-1 DISCONTINUE
SUB: 51140B20G10N000		 ?TUBE, OUTER LH 1 -
4-2 DISCONTINUE
SUB: 51140B20G60N000		 ?TUBE, OUTER LH 1 -
5 51153-23F00-000
SUB: 51153-23F00L000		 ?SEAL, OIL 2 Rp27.000
6 51156-43010-000
SUB: 51156B43010N000		 ?RING, SNAP 2 Rp6.000
7 51173-23F00-000
SUB: 51173-23F00L000		 ?SEAL, DUST 2 Rp41.500
8 51147-16510-000
SUB: 51147-16510L000		 ?BOLT 2 Rp10.500
9 51148-41310-000
SUB: 51148B41310N000		 ?PACKING 2 Rp8.500
10 51146-31CB0-000
SUB: 51146-31CB0L000		 ?CYLINDER 2 Rp85.000
11 51177-35400L000 ?SPRING 2 Rp9.500
12 51196-39140-000
SUB: 51196B39140N000		 ?RING, PISTON 2 Rp7.500
13 51110-20G00-000
SUB: 51110B20G00N000		 ?TUBE, INNER 2 Rp288.500
14 51171-20G00-000
SUB: 51171B20G00N000		 ?SPRING, FRONT 2 Rp39.000
15 DISCONTINUE
SUB: 51351B09G10N000		 ?CAP 2 -
16 51181-37B00-000
SUB: 09280B17002N000		 ?O RING 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
