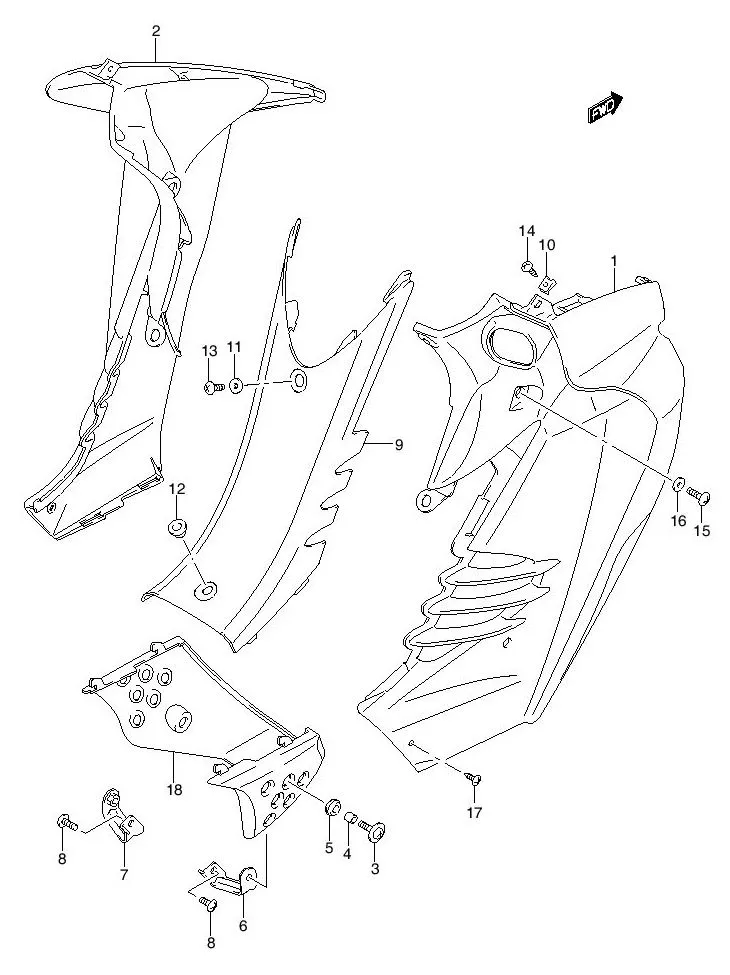

FIG.31A SHIELDLEG FD125XRM

FIG.31A SHIELDLEG FD125XRM
No No. Part Description Qty Price Per Pcs Remarks
1-2 48111-20G20-079
SUB: 48111B20G20N079		 SHIELD LEG RH (CELEB RED) 0 Rp447.000
1-3 48111-20G20-334
SUB: 48111B20G20N334		 SHIELD LEG RH (M BLUE PEARL) 0 Rp447.000
1-4 48111-20G20-X0G
SUB: 48111B20G20NX0G		 SHIELD LEG RH BRILIANT WHITE 0 Rp456.000
1-5 48111-20G20-X1G
SUB: 48111B20G20NX1G		 SHIELD LEG RH STRONGER RED 0 Rp456.000
1-6 48111-20G20-X2J
SUB: 48111B20G20NX2J		 SHIELD LEG RH (MACHO BRIGHT BLUE) 0 Rp456.000
1-1 DISCONTINUE
SUB: 48111B20G20N038		 SHIELD LEG RH (AURA YELLOW) 1 -
2-1 DISCONTINUE
SUB: 48121B20G20N038		 SHIELD LEG LH (AURA YELLOW) 1 -
2-2 48121-20G20-079
SUB: 48121B20G20N079		 SHIELD LEG LH (CELEB RED) 0 Rp447.000
2-3 48121-20G20-334
SUB: 48121B20G20N334		 SHIELD LEG LH (M BLUE PEARL) 0 Rp447.000
2-4 48121-20G20-X0G
SUB: 48121B20G20NX0G		 SHIELD LEG LH BRILIANT WHITE 0 Rp456.000
2-5 48121-20G20-X1G
SUB: 48121B20G20NX1G		 SHIELD LEG LH STRONGER RED 0 Rp456.000
2-6 48121-20G20-X2J
SUB: 48121B20G20NX2J		 SHIELD LEG LH (MACHO BRIGHT BLUE) 0 Rp456.000
3 48177-23F00-000 SCREW, LOWER 2 Rp5.500
4 48211-09G00-000
SUB: 48211B09G00N000		 SPACER 2 Rp3.000
5 09320-09026-000
SUB: 09320B09026N000		 CUSHION 2 Rp12.500
6 DISCONTINUE
SUB: 48140B20G10N000		 BRACE, LEG RH 1 -
7 DISCONTINUE
SUB: 48150B20G10N000		 BRACE, LEG LH 1 -
8 02142-0616B-000
SUB: 02142B06163N000		 SCREW, BRACE 2 Rp5.500
9 48131-20G00-000
SUB: 48131B20G00N000		 SHIELD, LEG CENTER 1 Rp36.000
10 09148-05038-000
SUB: 09148B05038N000		 NUT 3 Rp4.000
11 09160-06109-000 WASHER, UPPER 1 Rp13.000
12 09169-06071-000
SUB: 09169B06071N000		 WASHER, REAR 1 Rp7.500
13 02142-0612A-000
SUB: 02142B06123N000		 SCREW 2 Rp4.000
14 03541-1516B-000
SUB: 03541-15163-000		 SCREW, UPPER 2 Rp4.500
15 02142-06127-000 SCREW, SIDE 2 Rp10.500
16 09160-06006-000
SUB: 09160-06084-000		 WASHER 2 Rp11.000
17 09136-05052-000
SUB: 09136B05052N000		 SCREW 3 Rp6.500
18-1 48139-20G01-735
SUB: 48139B20G01N735		 SHIELD LEG LOWER (SOLARIZE SILVER) 1 Rp136.500
18-2 48139-20G01-X1G
SUB: 48139B20G01NX1G		 SHIELD LEG LOWER (STRONGER RED) 1 Rp141.000
18-3 48139-20G01-X2J
SUB: 48139B20G01NX2J		 SHIELD LEG LOWER (MACHO BRIGHT BLUE) 1 Rp141.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
