SHOGUN (FD125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.26 FRAMEFIG.27 STANDFIG.28 FOOTRESTFIG.29 FUEL TANKFIG.30 FRAME COVERFIG.31 SHIELDLEG FD125XSDFIG.31A SHIELDLEG FD125XRMFIG.32 FRONT FENDERFIG.33 HANDLE BARFIG.34 HANDLE COVERFIG.35 HANDLE LEVER FD125XSDFIG.35A HANDLE LEVER FD125XRMFIG.36 REAR FENDERFIG.37 HELMET BOXFIG.38 LABELFIG.39 SEATFIG.40 FRONT FORK DAMPERFIG.41 FRONT FORK BRACKETFIG.42 FRONT WHEEL FD125XSDFIG.42A FRONT WHEEL FD125XRMFIG.43 FRONT CALIPER FD125XSDFIG.43A FRONT CALIPER FD125XRMFIG.44 FRONT MASTER CYLINDER FD125XSDFIG.44A FRONT MASTER CYLINDER FD125XRMFIG.45 REAR SWINGARM FD125XSDFIG.45A REAR SWINGARM FD125XRMFIG.46 CHAIN CHASEFIG.47 REAR WHEEL FD125XSDFIG.47A REAR WHEEL FD125XRMFIG.48 REAR CALIPER FD125XSDFIG.49 REAR MASTER CYLINDER FD125XRM

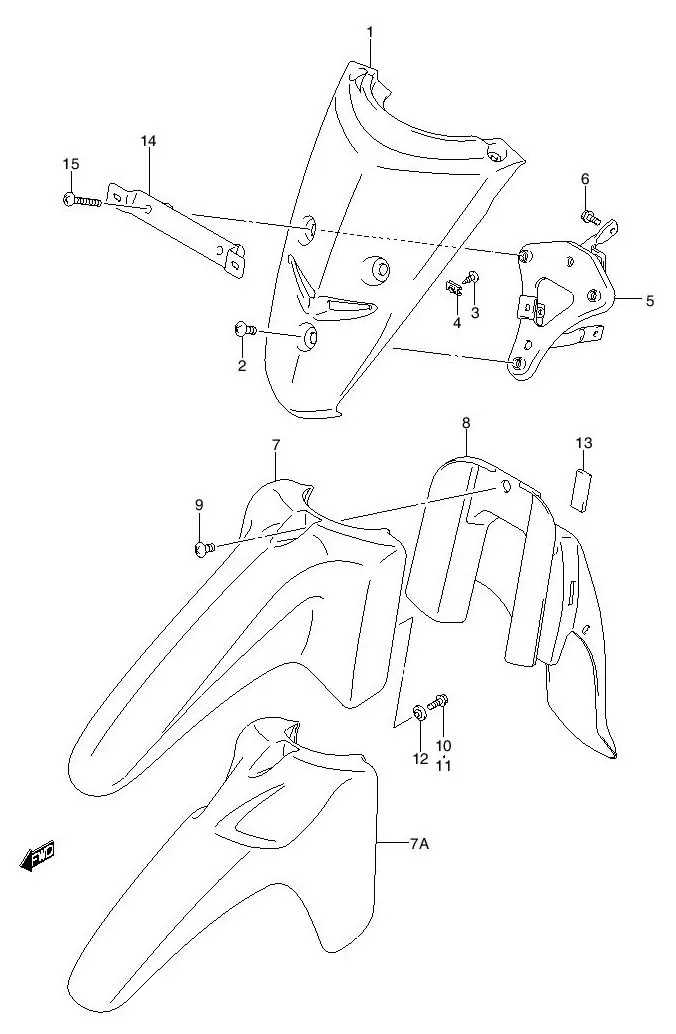

FIG.32 FRONT FENDER

FIG.32 FRONT FENDER
No No. Part Description Qty Price Per Pcs Remarks
1-2 51871-20G10-079
SUB: 51871B20G10N079		 COVER FRAME HEAD (CELEB RED) 1 Rp127.500 FD125XSD ; FD125XRD
1-3 DISCONTINUE
SUB: 51871B20G10N189		 COVER FRAME HEAD (WHITE) 1 - FD125XSD ; FD125XRD
1-4 51871-20G10-334
SUB: 51871B20G10N334		 COVER FRAME HEAD (M BLUE PEARL) 1 Rp127.500 FD125XSD ; FD125XRD
1-5 DISCONTINUE
SUB: 51871B20G10N532		 COVER FRAME HEAD (SHADOW B) 1 - FD125XSD ; FD125XRD
1-6 51871-20G10-735
SUB: 51871B20G10N735		 COVER FRAME HEAD (SOLARISE SILVER) 1 Rp135.500 FD125XSD ; FD125XRD
1-7 DISCONTINUE
SUB: 51871B20G10NX0C		 COVER FRAME HEAD (VIOLET) 1 - FD125XSD ; FD125XRD
1-8 51871-20G10-X0H
SUB: 51871B20G10NX0H		 COVER FRAME HEAD (TITAN BLACK) 1 Rp130.000 FD125XSD ; FD125XRD
1-9 DISCONTINUE
SUB: 51871B20G10NX1G		 COVER FRAME HEAD (STRONGER RED) 1 - FD125XSD ; FD125XRD
1-10 DISCONTINUE
SUB: 51871B20G10NX2J		 COVER FRAME HEAD (MACHO BRIGHT BLUE) 1 - FD125XSD ; FD125XRD
1-11 DISCONTINUE
SUB: 51871B20G00N019		 COVER FRAME HEAD (BLACK) 1 - FD125XRM
1-12 DISCONTINUE
SUB: 51871B20G00NX0H		 COVER FRAME HEAD (TITAN BLACK) 1 - FD125XRM
1-1 51871-20G10-019
SUB: 51871B20G10N019		 COVER FRAME HEAD (BLACK) 1 Rp135.500 FD125XSD ; FD125XRD
2 09136-06062-000
SUB: 09136-06017-000		 SCREW 3 Rp7.000
3 03541-1516B-000
SUB: 03541-15163-000		 SCREW, UPPER 2 Rp4.500
4 09148-05038-000
SUB: 09148B05038N000		 NUT 2 Rp4.000
5 DISCONTINUE
SUB: 51860B20G00N000		 BRACE, HEAD COVER 1 -
6 01547-0616A-000
SUB: 01547B06163N000		 BOLT 2 Rp6.500
7-1 53111-20G10-334
SUB: 53111B20G10N334		 FENDER FR NO.1 (MED BLUE PEARL) 1 Rp182.000 FD125XSD/XRD
7-2 53111-20G20-038
SUB: 53111B20G20N038		 FENDER FR NO.1 (AURA YELLOW) 1 Rp306.000 FD125XRM
7-3 53111-20G20-079
SUB: 53111B20G20N079		 FENDER FR NO.1 (CELEB RED) 1 Rp307.000 FD125XRM
7-4 53111-20G20-334
SUB: 53111B20G20N334		 FENDER FR NO.1 (M BLUE PEARL) 1 Rp306.000 FD125XRM
7-5 53111-20G20-X0H
SUB: 53111B20G20NX0H		 FENDER FR NO.1 (TITAN BLACK) 1 Rp317.500 FD125XRM
8 53211-20G10-000
SUB: 53211B20G10N000		 FENDER, FRONT NO.2 1 Rp41.500
9 53274-09G00-000
SUB: 53274B09G00N000		 SCREW, UPPER 1 Rp7.000
10 02142-0616B-000
SUB: 02142B06163N000		 SCREW 2 Rp5.500
11 DISCONTINUE
SUB: 01550B06123N000		 BOLT 1 -
12 09169-06071-000
SUB: 09169B06071N000		 WASHER 3 Rp7.500
13 DISCONTINUE
SUB: 53145-20G00-000		 CUSHION, FRONT FENDER 2 -
14 DISCONTINUE
SUB: 48190B09G00N000		 PLATE, LICENSE 1 -
15 02142-0645B-000
SUB: 02142-06453-000		 SCREW 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
