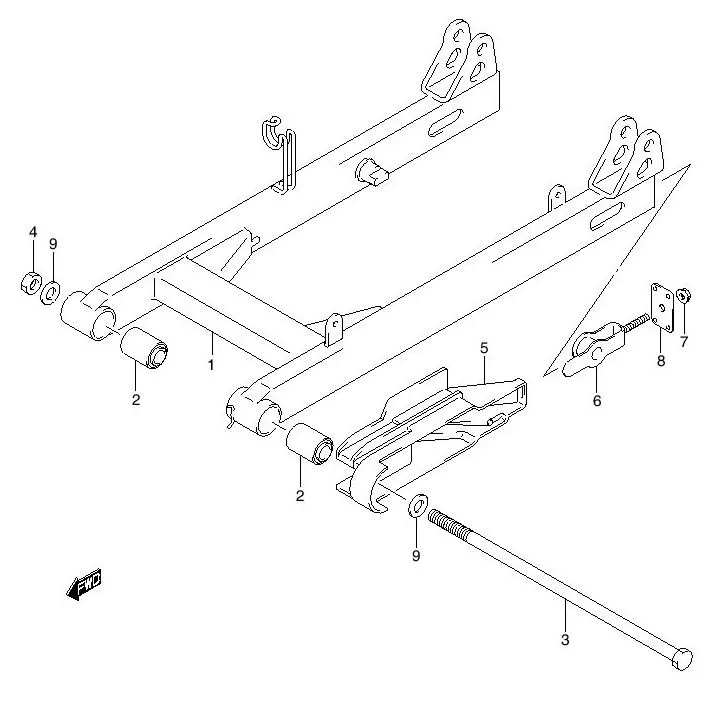

FIG.45A REAR SWINGARM FD125XRM

FIG.45A REAR SWINGARM FD125XRM
No No. Part Description Qty Price Per Pcs Remarks
1 61100-20G61-13L
SUB: 61100B20G60N000		 SWINGING ARM SET, REAR 1 Rp499.000
2 09319-10009-000
SUB: 09319-10009L000		 •BUSHING (10X23X35) 4 Rp18.000
3 61211-31C10-000
SUB: 61211B31C10N000		 SHAFT, REAR SWINGING ARM 1 Rp27.500
4 08310-00107-000 NUT 1 Rp15.000
5 61273-16H00-000
SUB: 61273B20G00N000		 BUFFER, CHAIN TOUCH DEFENSE 1 Rp20.000
6 61410-20G30-000
SUB: 61410B20G00N000		 ADJUSTER, CHAIN 2 Rp34.500
7 08319-31067-000 NUT 2 Rp15.000
8 61421-16H00-000
SUB: 61421B20G00N000		 GUIDE, CHAIN ADJUSTER 2 Rp29.000
9 09160-12017-000
SUB: 09160B12017N000		 WASHER 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
