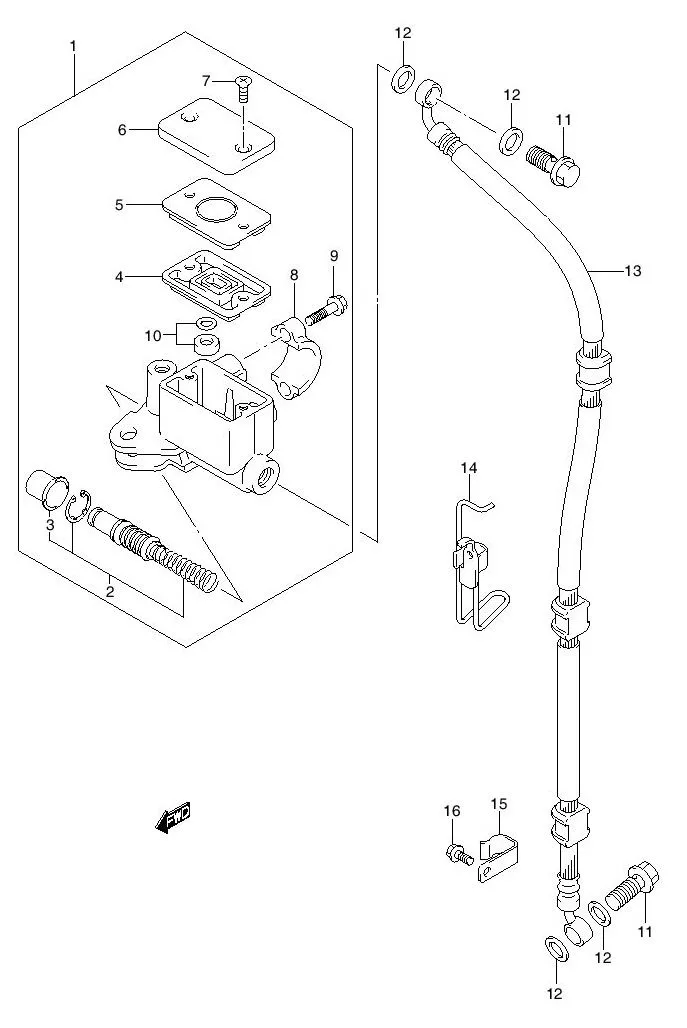

FIG.44 FRONT MASTER CYLINDER FD125XSD

FIG.44 FRONT MASTER CYLINDER FD125XSD
No No. Part Description Qty Price Per Pcs Remarks
1 59600-21D20-000
SUB: 59600B21D20N000		 CYLINDER ASSY, FRONT MASTER 1 Rp1.018.500
2 59600-21810-000
SUB: 59600-21810L000		 ?PISTON/CUP SET 1 Rp73.500
3 59666-44300-000
SUB: 59666B44300N000		 ??BOOT 1 Rp16.000
4 59667-44B00-000
SUB: 59667-44B00L000		 ?DIAPHRAGM 1 Rp13.000
5 59668-21D20-000
SUB: 59668B21D20N000		 ?PLATE 1 Rp3.000
6 59669-21D20-000
SUB: 59669B21D20N000		 ?CAP 1 Rp40.000
7 69689-49300-000
SUB: 69689-49300L000		 ?SCREW 2 Rp3.000
8 59671-36500-000
SUB: 59671B36500N000		 ?HOLDER 1 Rp23.000
9 59675-02FA0-000
SUB: 59675B02FA0N000		 ?BOLT 2 Rp9.000
10 59664-32F00-000
SUB: 59664B32F00N000		 ?PROTECTOR 1 Rp20.500
11 DISCONTINUE
SUB: 59263B23F00N000		 BOLT, BRAKE FLUID 2 -
12 09168-10033-000
SUB: 09168B10033N000		 WASHER, BRAKE FLUID 4 Rp8.500
13 DISCONTINUE
SUB: 59480B20G00N000		 HOSE, FRONT BRAKE 1 -
14 59260-20G00-000
SUB: 59260B20G00N000		 CLAMP, FR BRAKE HOSE NO.1 1 Rp27.000
15 DISCONTINUE
SUB: 59245B20G00N000		 CLAMP, FR BRAKE HOSE NO.2 1 -
16 01550-0610B-000
SUB: 01550-06103L000		 BOLT, BRAKE HOSE CLAMP 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
