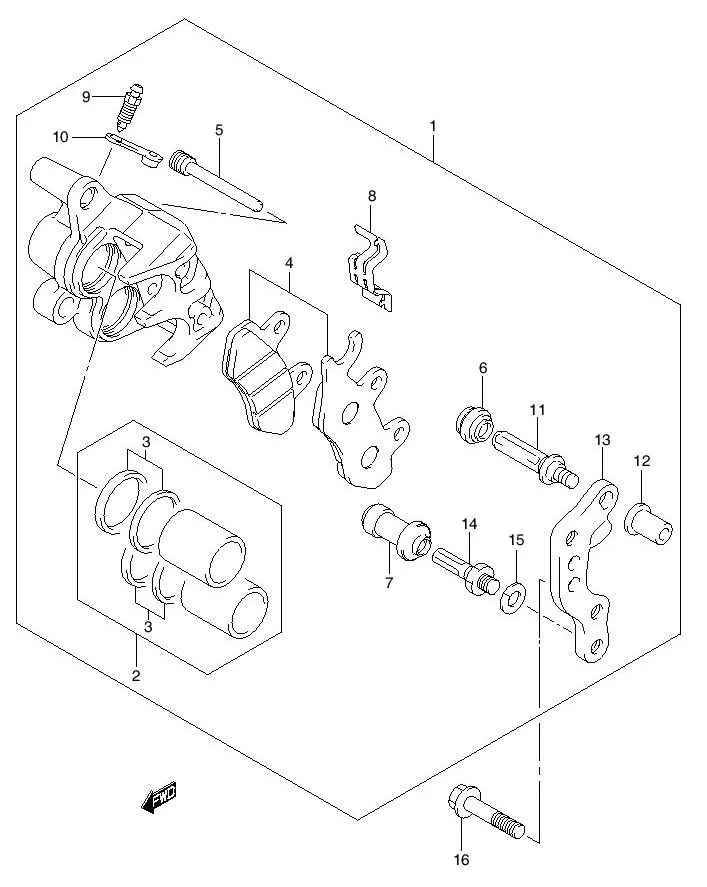

FIG.43 FRONT CALIPER FD125XSD

FIG.43 FRONT CALIPER FD125XSD
No No. Part Description Qty Price Per Pcs Remarks
1 59100-47E00-000
SUB: 59100-47E00L000		 CALIPER ASSY, FRONT 1 Rp1.107.000
2 69100-31810-000
SUB: 69100-31810L000		 PISTON SET 1 Rp166.500
3 59300-13820-000
SUB: 59300-13820L000		 SEAL SET, PISTON 1 Rp37.000
4 59100-21850-000
SUB: 59100-21850L000		 PAD SET 1 Rp66.000
5 59345-14600-000
SUB: 59345-14600L000		 PIN 2 Rp35.000
6 59303-14500-000
SUB: 59303-14500L000		 BOOT 1 Rp12.500
7 59386-13A00-000
SUB: 59386-13A00L000		 BOOT 1 Rp14.000
8 69115-31D10-000
SUB: 69115-31D10L000		 SPRING 1 Rp26.500
9 59121-01A00-000
SUB: 59121-01A00L000		 BLEEDER 1 Rp14.500
10 59122-01A00-000
SUB: 59122-01A00L000		 CAP, BLEEDER 1 Rp3.000
11 59387-00B20-000
SUB: 59387-00B20L000		 PIN 1 Rp25.500
12 59388-00B20-000
SUB: 59388-00B20L000		 NUT 1 Rp28.500
13 59151-47E00-000 BRACKET 1 Rp541.000
14 59382-13A00-000
SUB: 59382-13A00L000		 BOLT 1 Rp13.500
15 59314-13A00-000
SUB: 59314-13A00L000		 WASHER 1 Rp3.000
16 09103-08107-000
SUB: 09103B08107N000		 BOLT (8X33) 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
