IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANEL (GL)FRONT FENDER PANEL (GX)FRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPER (GL)FRONT BUMPER (GX)REAR BUMPER (GL)REAR BUMPER (GX)INSTRUMENT PANELVENTILATORHEATER UNIT (W/MANUAL AIR CONDITIONER)HEATER UNIT (W/AUTO AIR CONDITIONER)HEATER CONTROL (W/MANUAL AIR CONDITIONER:W/REAR DEFOGGER)HEATER CONTROL (W/AUTO AIR CONDITIONER)CONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER / CAPFUEL LID OPENERROOF SIDE PADROOF LININGMOLDINGSPLASH GUARD (GX)EMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATOR (W/REAR POWER WINDOW)FRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (GL)MIRROR/SUNVISOR (GX)SEAT BELTFRONT LH SEATFRONT RH SEAT (GL)FRONT RH SEAT (GX)REAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

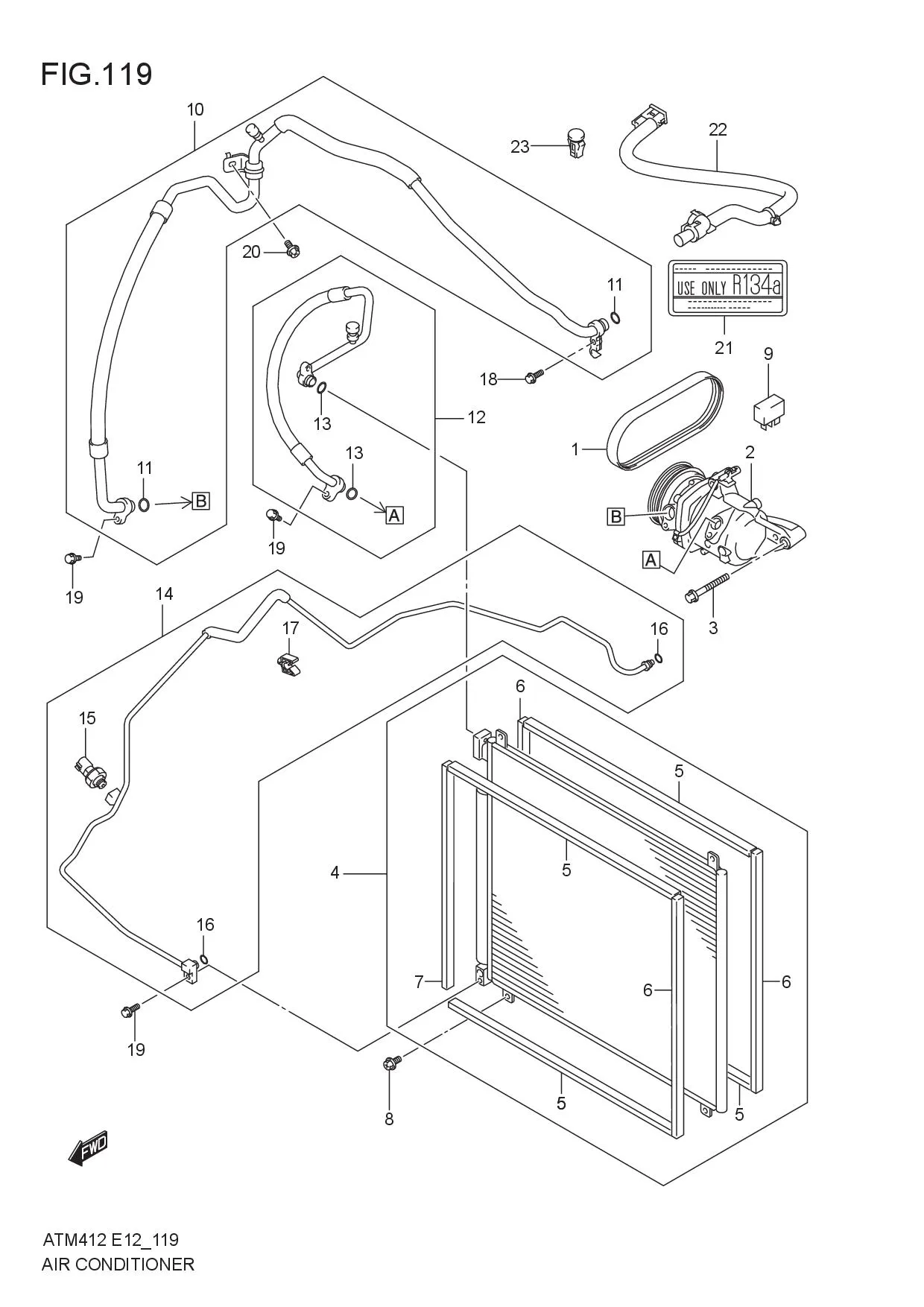

AIR CONDITIONER

AIR CONDITIONER
No No. Part Description Qty Price Per Pcs Remarks
1 95141M66R00-000 V-BELT(4PK) 1 Rp151.000
2 95200M66R10-000
SUB: 95200M66R00-000		 COMPRESSOR ASSY 1 Rp6.167.500
3 01550-0850A-000 BOLT, CPRSR 3 Rp3.500
4 95310M66R00-000 CONDENSER ASSY 1 Rp1.708.500
5 95811M66R00-000 •PACKING 4 Rp13.000
6 95812M66R00-000 •PACKING 3 Rp12.500
7 95813M66R00-000 •PACKING 1 Rp16.500
8 02162-0612A-000 BOLT, COND 4 Rp11.000
9-1 38860M76M00-000 RELAY ASSY 1 Rp58.500 VENDOR:DENSO
9-2 38860M76M00-000
SUB: 38860M79F01-000		 RELAY ASSY 1 Rp58.500 VENDOR:INTERFACE MICROSYSTEMS
10 95710M66R00-000 HOSE, SUCTION 1 Rp689.000
11 95896-50G00-000
SUB: 95896B50G00N000		 •O RING, (D:2•4,ID:13•4) 2 Rp19.000
12 95720M66R00-000 HOSE, DISCHARGE 1 Rp402.500
13 95895-50G00-000
SUB: 95895B50G00N000		 •O RING, (D:2•4,ID:10•8) 2 Rp12.500
14 95731M66R00-000 HOSE, LIQUID 1 Rp925.000
15 95546M74L00-000 •SENSOR, REFRIGERANT PRESSURE 1 Rp675.500
16 95891-50G00-000
SUB: 95891B50G00N000		 •O RING, (D:1•8,ID:6•7) 2 Rp12.500
17 95761-55K00-000
SUB: 95761B55K00N000		 •CLAMP, LIQUID PIPE 2 Rp10.500
18 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 2 Rp3.500
19 01550-0620C-000 BOLT 3 Rp5.500
20 02162-0612A-000 SCREW 1 Rp11.000
21 95640M66R00-000 SENSOR ASSY, ROOM TEMP 1 Rp382.000 W/AUTO AIR CONDITIONER
22 95642-64G20-000 SENSOR, SUN LIGHT 1 Rp578.000 W/AUTO AIR CONDITIONER

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
