IGNIS

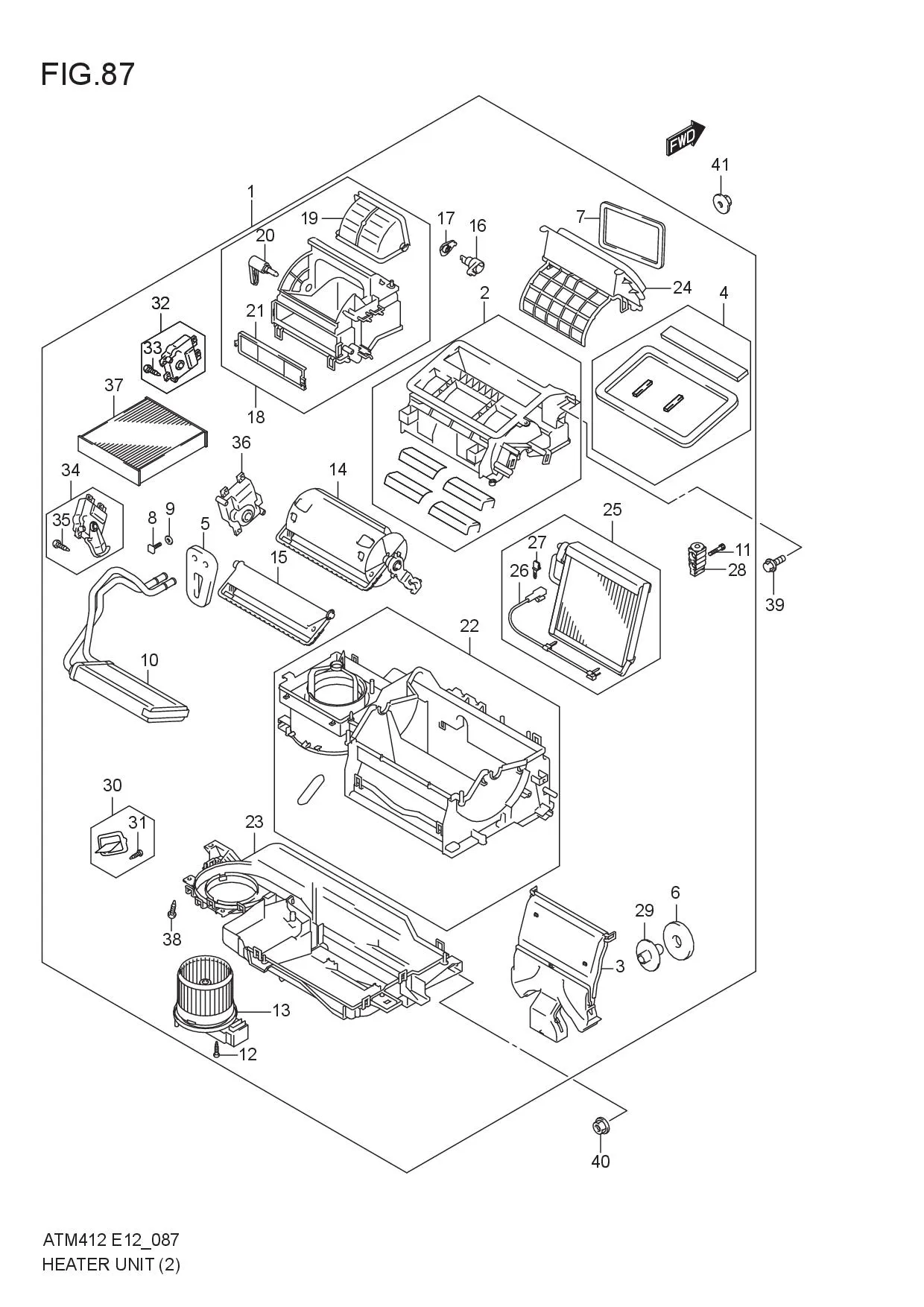

HEATER UNIT (W/AUTO AIR CONDITIONER)

HEATER UNIT (W/AUTO AIR CONDITIONER)
No No. Part Description Qty Price Per Pcs Remarks
1 74100M66RE0-000 HVAC UNIT 1 Rp8.629.000
2 74110M66RE0-000 •CASE HEATER, UPPER 1 Rp117.000
3 74115M66RC0-000 •FOOT DUCT S/ASSY 1 Rp49.000
4 74116M66RC0-000 •PACKING, FACE OUTLET 1 Rp23.000
5 74117M66RC0-000 •PACKING, DASH 1 Rp48.500
6 74118M66RC0-000 •PACKING, DRAIN 1 Rp22.500
7 74119M66RC0-000 •PACKING, AIR INTAKE 1 Rp13.000
8 74119M79M10-000 •BOLT 1 Rp8.500
9 74119-78F10-000
SUB: 74119B78F10N000
•BUSH 1 Rp8.000
10 74120M66RC0-000 •CORE S/ASSY, HEATER 1 Rp939.000
11 74134-58J00-000
SUB: 74134B58J00N000
•BOLT 2 Rp14.000
12 74135-82000-000
SUB: 74135B82000N000
•SCREW TAPPING 3 Rp19.500
13 74150M66RC0-000 •MOTOR ASSY, W/FAN 1 Rp573.500
14 74172M66RC0-000 •DOOR S/ASSY, MODE 1 Rp303.500
15 74173M66RC0-000 •DOOR S/ASSY, A/M 1 Rp107.500
16 74183M66RE0-000 •LEVER, MODE DOOR 1 Rp8.500
17 74184M66RE0-000 •LEVER, A/M DOOR 1 Rp12.000
18 74210M66RE0-000 •CASE S/ASSY BLOWER 1 Rp143.500
19 74171M66RC0-000 ••DOOR S/ASSY, F/R 1 Rp40.000
20 74181M66RE0-000 ••LEVER, F/R DOOR 1 Rp9.000
21 95423M66RC0-000 ••HOLDER, FILTER 1 Rp8.500
22 74211M66RE0-000 •CASE BLOWER, UPPER 1 Rp162.000
23 74212M66RC0-000 •CASE BLOWER, LOWER 1 Rp154.500
24 74213M66RC0-000 •DUCT 1 Rp53.000
25 95411M66RC0-000 •EVAPORATOR S/ASSY 1 Rp788.000
26 95541M66RC0-000 ••THERMISTOR ASSY 1 Rp208.000
27 95452-63J00-000
SUB: 95452B63J00N000
••CLAMP 1 Rp9.000
28 95431M66RC0-000 •VALVE, EXPANSION 1 Rp547.000
29 95481M66RC0-000 •HOSE DRAIN 1 Rp11.000
30 95626M66RE0-000 •RESISTER BLOWER, KIT 1 Rp640.500
31 03112-0416A-000
SUB: 03112B0416AN000
••SCREW TAPPING 1 Rp23.500
32 95651M66RE0-000 •SERVO & ACC ASSY, A/M 1 Rp354.500
33 03112-0416A-000
SUB: 03112B0416AN000
••SCREW TAPPING 2 Rp23.500
34 95652M66RE0-000 •SERVO & ACC ASSY, F/R 1 Rp352.000
35 03112-0416A-000
SUB: 03112B0416AN000
••SCREW TAPPING 3 Rp23.500
36 95653M66RE0-000 •SERVO MOTOR 1 Rp343.500
37 95850M66RC0-000 •FILTER SUB ASSY 1 Rp98.500
38 03112-0416A-000
SUB: 03112B0416AN000
•SCREW TAPPING 2 Rp23.500
39 09116-06115-000 BOLT, HVAC 2 Rp14.500
40 09159-06081-000 NUT, HVAC 2 Rp14.500
41 09159-06086-000 NUT, HVAC 1 Rp26.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
