IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANEL (GL)FRONT FENDER PANEL (GX)FRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPER (GL)FRONT BUMPER (GX)REAR BUMPER (GL)REAR BUMPER (GX)INSTRUMENT PANELVENTILATORHEATER UNIT (W/MANUAL AIR CONDITIONER)HEATER UNIT (W/AUTO AIR CONDITIONER)HEATER CONTROL (W/MANUAL AIR CONDITIONER:W/REAR DEFOGGER)HEATER CONTROL (W/AUTO AIR CONDITIONER)CONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER / CAPFUEL LID OPENERROOF SIDE PADROOF LININGMOLDINGSPLASH GUARD (GX)EMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATOR (W/REAR POWER WINDOW)FRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (GL)MIRROR/SUNVISOR (GX)SEAT BELTFRONT LH SEATFRONT RH SEAT (GL)FRONT RH SEAT (GX)REAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

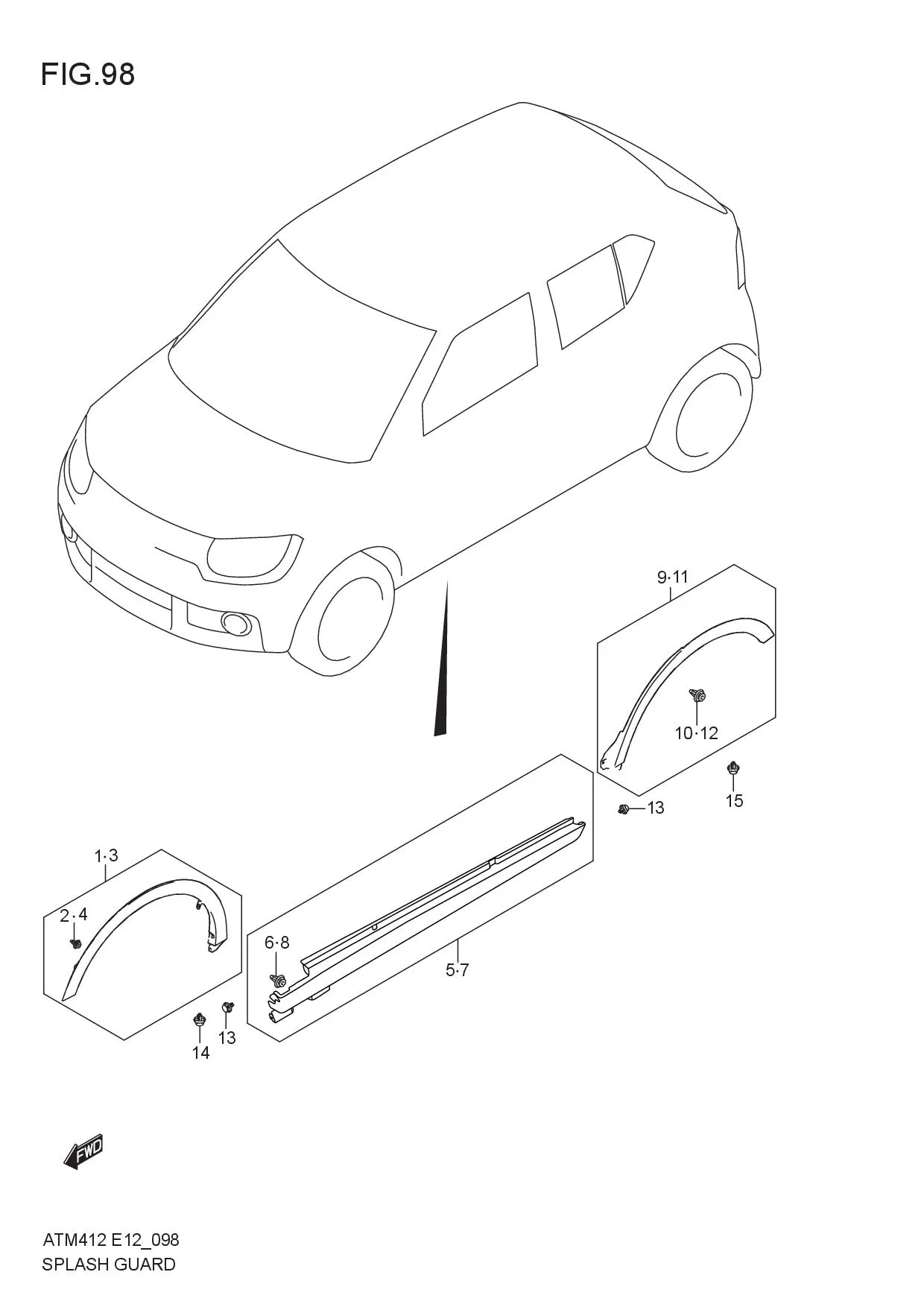

SPLASH GUARD (GX)

SPLASH GUARD (GX)
No No. Part Description Qty Price Per Pcs Remarks
1 77210M66R11-5PK
SUB: 77210M66R10-5PK		 GUARD ASSY, FR FENDER SPLASH RH 1 Rp187.500
2 09409-10327-000
SUB: 09409M10L02-000		 •CLIP 5 Rp5.000
3 77220M66R11-5PK
SUB: 77220M66R10-5PK		 GUARD ASSY, FR FENDER SPLASH LH 1 Rp187.500
4 09409-10327-000
SUB: 09409M10L02-000		 •CLIP 5 Rp5.000
5 77230M66R10-5PK GUARD ASSY, SIDE SILL SPLASH RH 1 Rp373.000
6 09409-10327-000
SUB: 09409M10L02-000		 •CLIP 9 Rp5.000
7 77240M66R10-5PK GUARD ASSY, SIDE SILL SPLASH LH 1 Rp373.000
8 09409-10327-000
SUB: 09409M10L02-000		 •CLIP 9 Rp5.000
9 77250M66R12-5PK
SUB: 77250M66R10-5PK		 GUARD ASSY, RR FENDER SPLASH RH 1 Rp170.000
10 09409-10330-000
SUB: 09409M10318-000		 •CLIP 4 Rp19.000
11 77260M66R12-5PK
SUB: 77260M66R10-5PK		 GUARD ASSY, RR FENDER SPLASH LH 1 Rp170.000
12 09409-10330-000
SUB: 09409M10318-000		 •CLIP 4 Rp19.000
13 09409-15304-000 CLIP, SIDE SILL SPLASH GUARD 16 Rp18.500
14 09409M07L01-000 CLIP, FR FENDER SPLASH GUARD 2 Rp5.000
15 09409M07L01-000 CLIP, RR FENDER SPLASH GUARD 4 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
