IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANEL (GL)FRONT FENDER PANEL (GX)FRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPER (GL)FRONT BUMPER (GX)REAR BUMPER (GL)REAR BUMPER (GX)INSTRUMENT PANELVENTILATORHEATER UNIT (W/MANUAL AIR CONDITIONER)HEATER UNIT (W/AUTO AIR CONDITIONER)HEATER CONTROL (W/MANUAL AIR CONDITIONER:W/REAR DEFOGGER)HEATER CONTROL (W/AUTO AIR CONDITIONER)CONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER / CAPFUEL LID OPENERROOF SIDE PADROOF LININGMOLDINGSPLASH GUARD (GX)EMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATOR (W/REAR POWER WINDOW)FRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (GL)MIRROR/SUNVISOR (GX)SEAT BELTFRONT LH SEATFRONT RH SEAT (GL)FRONT RH SEAT (GX)REAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

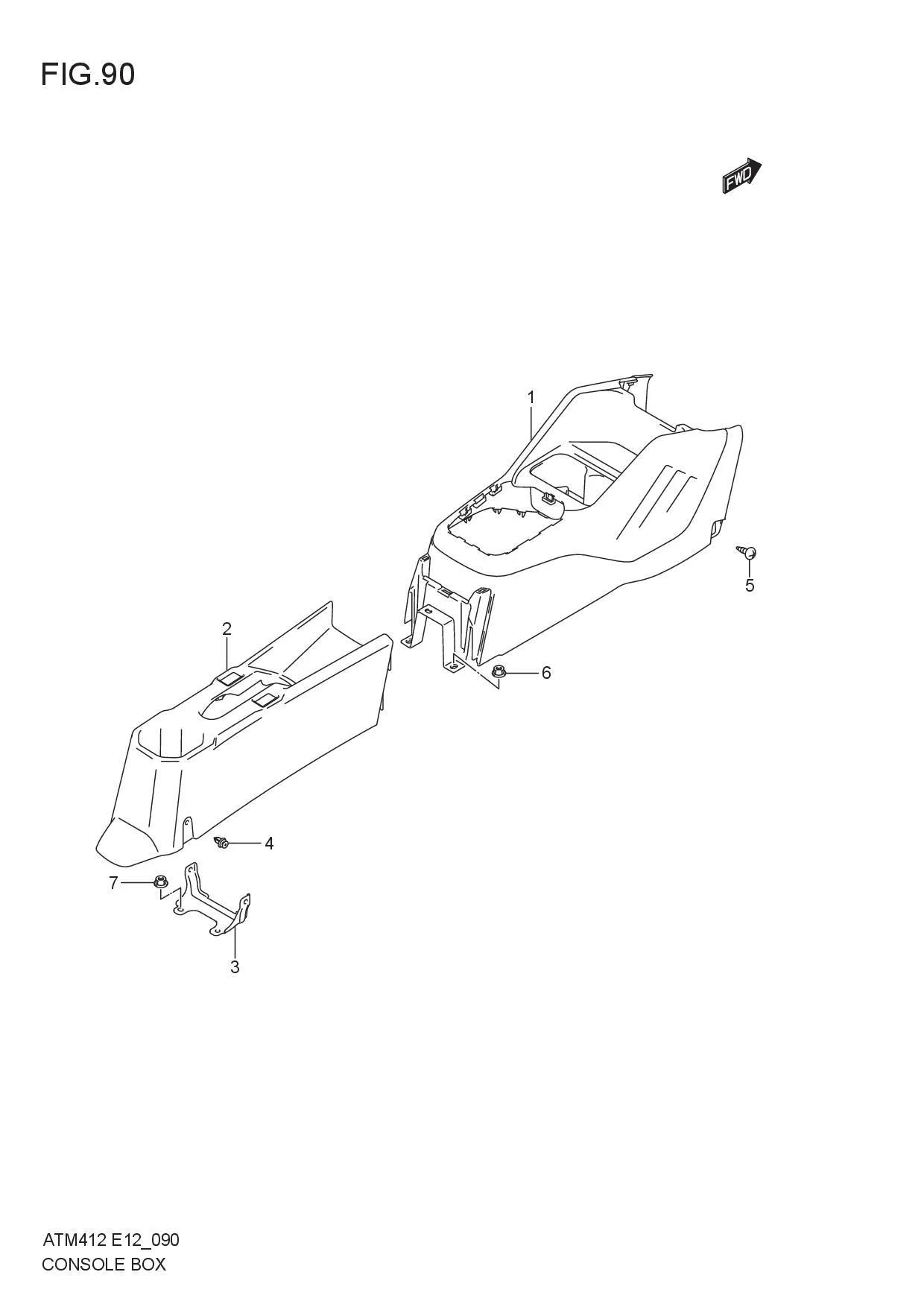

CONSOLE BOX

CONSOLE BOX
No No. Part Description Qty Price Per Pcs Remarks
1-1 75810M66R10-CG9 BOX, FLOOR CONSOLE FRONT 1 Rp797.000 5MT:GL:BODY COLOR:ZHJ,Z2S,ZNZ,ZAM
1-2 75810M66R10-CNP BOX, FLOOR CONSOLE FRONT 1 Rp797.000 5MT:GL:BODY COLOR:ZWR
1-3 75810M66R10-CNQ BOX, FLOOR CONSOLE FRONT 1 Rp802.000 5MT:GL:BODY COLOR:ZWS
1-4 75810M66R10-CG9 BOX, FLOOR CONSOLE FRONT 1 Rp797.000 5MT:GX:BODY COLOR:ZHJ,Z2S,ZNZ
1-5 75810M66R10-CNP BOX, FLOOR CONSOLE FRONT 1 Rp797.000 5MT:GX:BODY COLOR:ZWR,CMN
1-6 75810M66R10-CNQ BOX, FLOOR CONSOLE FRONT 1 Rp802.000 5MT:GX:BODY COLOR:ZWS,CMM
1-7 75810M66R10-CG9 BOX, FLOOR CONSOLE FRONT 1 Rp797.000 5AGS:GX:BODY COLOR:ZHJ,Z2S,ZNZ
1-8 75810M66R10-CNP BOX, FLOOR CONSOLE FRONT 1 Rp797.000 5AGS:GX:BODY COLOR:ZWR,CMN
1-9 75810M66R10-CNQ BOX, FLOOR CONSOLE FRONT 1 Rp802.000 5AGS:GX:BODY COLOR:ZWS,CMM
2 75851M66R00-5PK BOX, FLOOR CONSOLE REAR 1 Rp170.500
3 75871M62R00-000 BRACKET, FLOOR CONSOLE BOX REAR 1 Rp12.000
4 09409-06322-5PK
SUB: 09409-06322-000		 CLIP 2 Rp19.000
5 09132-05049-000 SCREW 2 Rp21.000
6 09159M06112-000 NUT 2 Rp6.500
7 09159M06112-000 NUT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
