IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANEL (GL)FRONT FENDER PANEL (GX)FRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPER (GL)FRONT BUMPER (GX)REAR BUMPER (GL)REAR BUMPER (GX)INSTRUMENT PANELVENTILATORHEATER UNIT (W/MANUAL AIR CONDITIONER)HEATER UNIT (W/AUTO AIR CONDITIONER)HEATER CONTROL (W/MANUAL AIR CONDITIONER:W/REAR DEFOGGER)HEATER CONTROL (W/AUTO AIR CONDITIONER)CONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER / CAPFUEL LID OPENERROOF SIDE PADROOF LININGMOLDINGSPLASH GUARD (GX)EMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATOR (W/REAR POWER WINDOW)FRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (GL)MIRROR/SUNVISOR (GX)SEAT BELTFRONT LH SEATFRONT RH SEAT (GL)FRONT RH SEAT (GX)REAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

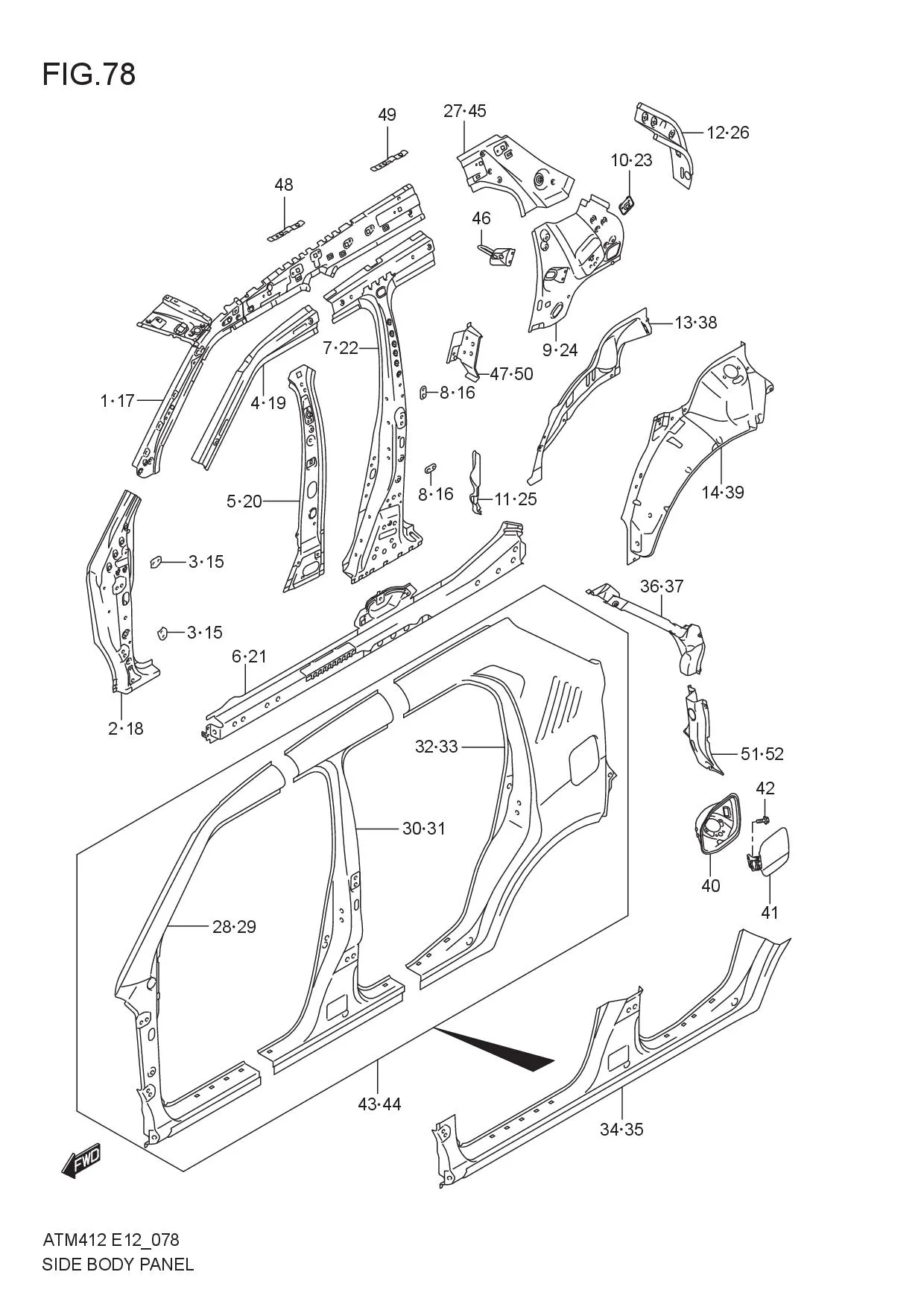

SIDE BODY PANEL

SIDE BODY PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 63110M66R00-000 PANEL, FR PILLAR INNER RH 1 Rp510.500
2 63140M66R00-000 REINF, FR DOOR HINGE RH 1 Rp675.000
3 63144M76M00-000 RETAINER, FRONT DOOR HINGE LWR 2 Rp9.500
4 63150M66R00-000 REINF, FR PLR UPR RH 1 Rp366.500
5 63210M66R00-000 PANEL, CTR PILLAR INNER RH 1 Rp230.500
6 63230M66R00-000 STRENGTH, SIDE SILL RH 1 Rp796.000
7 63240M66R00-000 REINFORCEMENT, CTR PILLAR RH 1 Rp1.033.000
8 63243M74P00-000 RETAINER,REAR DOOR HINGE 2 Rp8.500
9 63311M66R00-000 PANEL, QUARTER INNER RH 1 Rp267.000
10 63391M62R00-000 REINF,SEAT BELT RETRACTOR 1 Rp13.500
11 63314M66R00-000 REINF,RR WHEEL HOUSE FR,R 1 Rp71.000
12 63320M66R00-000 PANEL,QTR INNER REAR,R 1 Rp186.000
13 63410M66R00-000 PANEL,WHEEL HOUSE INNER RH 1 Rp617.500
14 63480M66R00-000 PANEL,WHEEL HOUSE OTR,LH 1 Rp309.000
15 63144M76M00-000 RETAINER, FRONT DOOR HINGE LWR 1 Rp9.500
16 63243M74P00-000 RETAINER,REAR DOOR HINGE 2 Rp8.500
17 63510M66R00-000 PANEL, FR PILLAR INNER LH 1 Rp510.500
18 63540M66R00-000 REINF, FRONT DOOR HINGE LH 1 Rp675.000
19 63550M66R00-000 REINF,HINGE PILLAR UPR,LH 1 Rp366.500
20 63610M66R00-000 PANEL, CTR PILLAR INNER LH 1 Rp230.500
21 63630M66R00-000 STRENGTH, SIDE SILL LH 1 Rp796.000
22 63640M66R00-000 REINFORCEMENT, CTR PILLAR LH 1 Rp1.033.000
23 63391M62R00-000 REINF,SEAT BELT RETRACTOR 1 Rp13.500
24 63711M66R00-000 PANEL, QUARTER INNER LH 1 Rp267.000
25 63714M66R00-000 REINF,RR WHEEL HOUSE FR,LH 1 Rp75.000
26 63720M66R00-000 PANEL,QTR INNER REAR,LH 1 Rp186.000
27 63730M66R00-000 PANEL,QTR INNER UPPER,LH 1 Rp226.000
28-1 64111M66R00-P11 PANEL, A-PLR RH 1 Rp1.180.000 GL
28-2 64111M66R10-P11 PANEL, A-PLR RH 1 Rp1.072.500 GX
29-1 64511M66R00-P11 PANEL, A-PLR LH 1 Rp1.180.000 GL
29-2 64511M66R10-P11 PANEL, A-PLR LH 1 Rp1.072.500 GX
30-1 64111M66R00-P21 PANEL, B-PLR RH 1 Rp1.200.500 GL
30-2 64111M66R10-P21 PANEL, B-PLR RH 1 Rp1.200.500 GX
31-1 64511M66R00-P21 PANEL, B-PLR LH 1 Rp1.200.500 GL
31-2 64511M66R10-P21 PANEL, B-PLR LH 1 Rp1.200.500 GX
32-1 64111M66R00-P31 PANEL, QTR RH 1 Rp1.453.500 GL
32-2 64111M66R10-P31 PANEL, QTR RH 1 Rp1.453.500 GX
33-1 64511M66R00-P31 PANEL, QTR LH 1 Rp1.453.500 GL
33-2 64511M66R10-P31 PANEL, QTR LH 1 Rp1.453.500 GX
34-1 64111M66R00-P41 PANEL, SIDE SILL RH 1 Rp3.445.000 GL
34-2 64111M66R10-P41 PANEL, SIDE SILL RH 1 Rp3.445.000 GX
35-1 64511M66R00-P41 PANEL, SIDE SILL LH 1 Rp3.445.000 GL
35-2 64511M66R10-P41 PANEL, SIDE SILL LH 1 Rp3.445.000 GX
36 64120M66R00-000 EXTENSION, SIDE BODY OTR RH 1 Rp176.000
37 64520M66R00-000 EXTENSION, SIDE BODY OTR LH 1 Rp176.000
38 63810M66R00-000 PANEL,WHEEL HOUSE INNER LH 1 Rp617.500
39 63880M66R00-000 PANEL,WHEEL HOUSE OTR,LH 1 Rp309.000
40 64561M66R00-000 BOX,FUEL INLET 1 Rp79.000
41 64570M66R00-000 LID,FUEL INLET 1 Rp99.000
42 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
43-1 64111M66R00-000 PANEL ASSY, BODY OUTER RH 1 Rp3.728.000 GL
43-2 64111M66R10-000 PANEL ASSY, BODY OUTER RH 1 Rp3.728.000 GX
44-1 64511M66R00-000 PANEL ASSY, BODY OUTER LH 1 Rp3.728.000 GL
44-2 64511M66R10-000 PANEL ASSY, BODY OUTER LH 1 Rp3.728.000 GX
45 63330M66R00-000 PANEL,QTR INNER UPPER,R 1 Rp226.000
46 63340M66R00-000 STRIKER,RR SEAT BACK 2 Rp31.500
47 63350M66R00-000 REINF,RR DOOR STRIKER,RH 1 Rp35.000
48 63161M62R00-000 BRACKET,ROOF RAIL FR 2 Rp11.000 GX
49 63162M62R00-000 BRACKET,ROOF RAIL RR 2 Rp10.500 GX
50 63750M66R00-000 REINF,RR DOOR STRIKER,LH 1 Rp37.000
51 64130M66R00-000 PANEL,RR LAMP HOUSE OTR,RH 1 Rp136.500
52 64530M66R00-000 PANEL,RR LAMP HOUSE OTR,LH 1 Rp136.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
