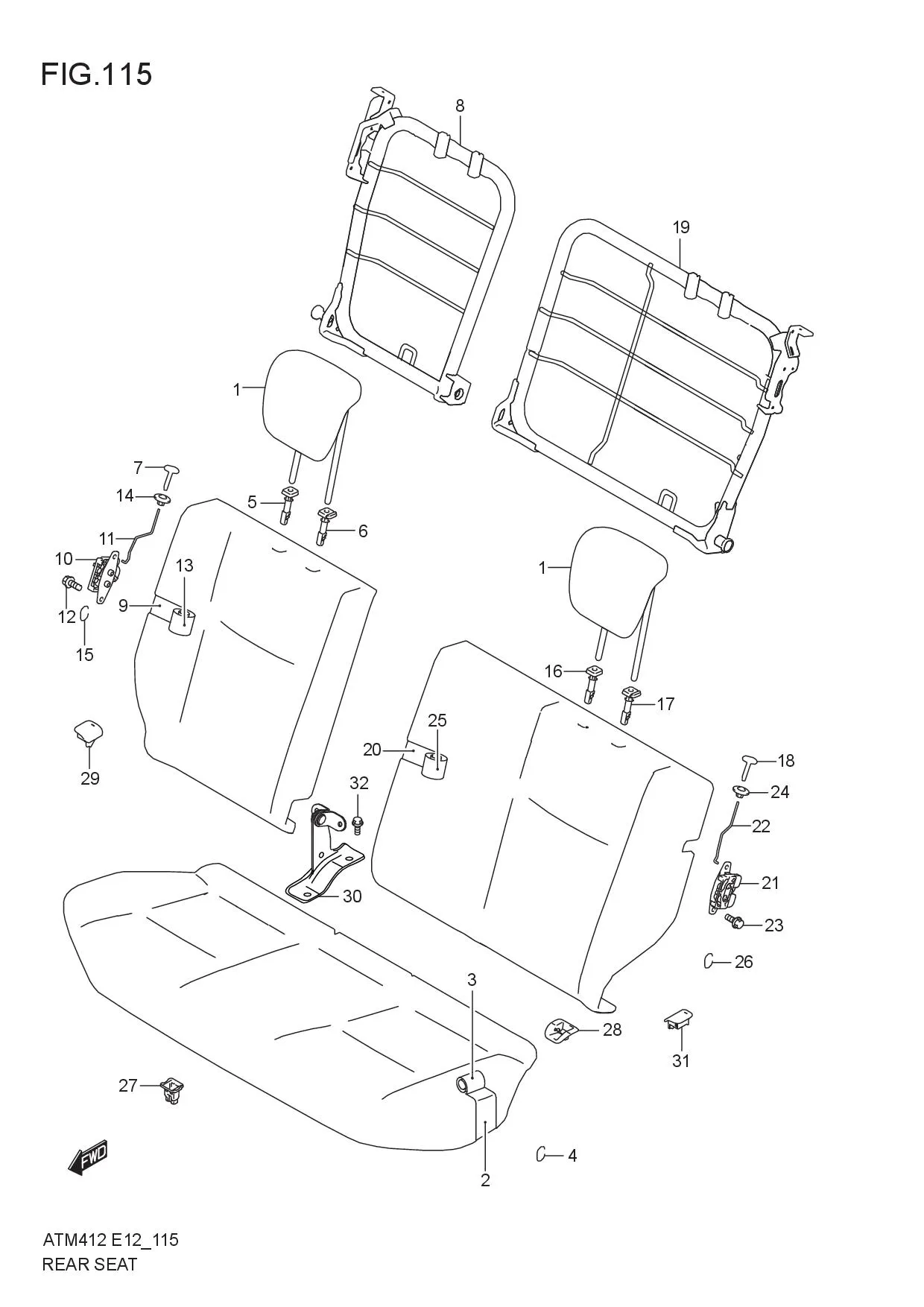

REAR SEAT

No	No. Part	Description	Qty	Price Per Pcs
1	86401M68P10-PWC	HEADRESTRAINT ASSY, RR	2	Rp355.500
2	87160M66R01-000 SUB: 87160M66R00-000	PAD, RR CUSH	1	Rp1.271.500
3	87180M66R00-CMC	TRIM, RR CUSH	1	Rp659.500
4	09387-19001-000 SUB: 09387B19001N000	RING	34	Rp9.000
5	85341M79M10-5PK	GUIDE, HEADRESTRAINT (BLACK)	1	Rp9.500
6	85840M79M20-5PK	GUIDE COMP,HEADRESTRAINT (BLACK)	1	Rp11.000
7	87211M74P00-5PK	KNOB, RR BACK LOCK (BLACK)	1	Rp6.000
8	87310M66R00-000	FRAME, RR BACK RH	1	Rp1.078.000
9	87360M66R00-000	PAD, RR BACK RH	1	Rp274.500
10	87480M76M11-000	LOCK ASSY, RR BACK RH	1	Rp366.000
11	87485M68P00-000	WIRE, RR BACK LOCK RH	1	Rp8.500
12	01550-0816A-000 SUB: 01550B0816AN000	BOLT	2	Rp6.000
13	87380M66R00-CMC	TRIM, RR BACK RH	1	Rp402.500
14	87381M74P00-5PK	BEZEL, RR BACK LOCK KNOB (BLACK)	1	Rp11.000
15	09387-19001-000 SUB: 09387B19001N000	RING	3	Rp9.000
16	85341M79M10-5PK	GUIDE, HEADRESTRAINT (BLACK)	1	Rp9.500
17	85840M79M10-5PK	GUIDE, HEADRESTRAINT (BLACK)	1	Rp10.500
18	87211M74P00-5PK	KNOB, RR BACK LOCK (BLACK)	1	Rp6.000
19	87810M66R00-000	FRAME, RR BACK LH	1	Rp1.247.500
20	87860M66R00-000	PAD, RR BACK LH	1	Rp416.000
21	87980M76M11-000	LOCK ASSY, RR BACK LH	1	Rp366.000
22	87985M68P00-000	WIRE, RR BACK LOCK LH	1	Rp8.500
23	01550-0816A-000 SUB: 01550B0816AN000	BOLT	2	Rp6.000
24	87381M74P00-5PK	BEZEL, RR BACK LOCK KNOB (BLACK)	1	Rp11.000
25	87880M66R00-CMC	TRIM, RR BACK	1	Rp402.500
26	09387-19001-000 SUB: 09387B19001N000	RING	4	Rp9.000
27	87460-76G11-000 SUB: 87460-76G01-000	HOOK, RR SEAT CUSH	2	Rp39.000
28	87228M68P00-5PK	BEZEL, LOWER ANCHOR (BLACK)	4	Rp17.500
29	87491M68P10-5PK	COVER, RR SEAT HINGE RH	1	Rp10.000
30	87950M66R00-000	HINGE, RR CENTER	1	Rp73.000
31	87991M68P10-5PK	COVER, RR SEAT HINGE LH (BLACK)	1	Rp10.000
32	01551-1025A-000	BOLT	3	Rp29.000
