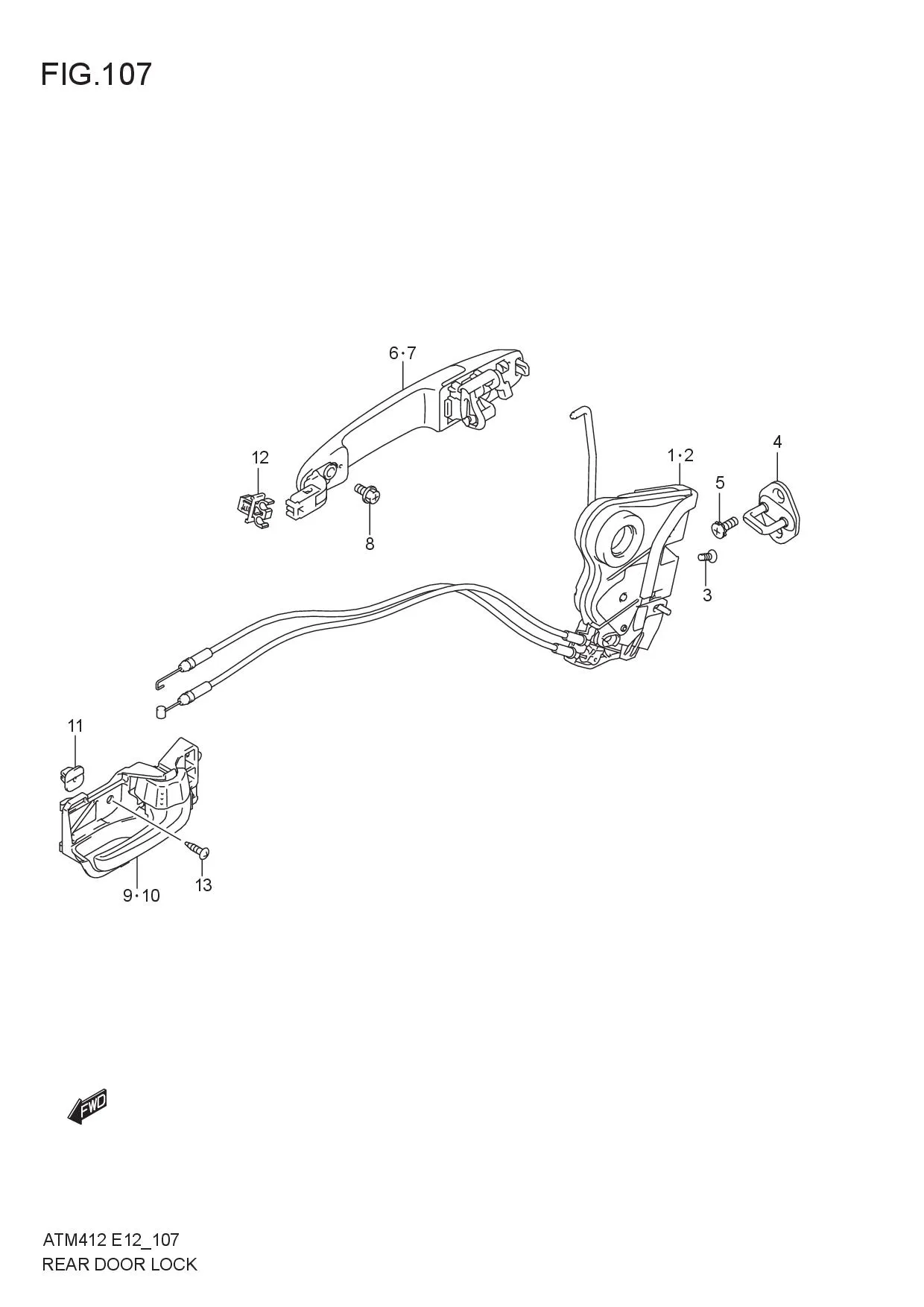

REAR DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82301M66R13-000 SUB: 82301M66R10-000	LATCH ASSY, REAR DOOR RH	1	Rp519.000
2	82302M66R13-000 SUB: 82302M66R10-000	LATCH ASSY, REAR DOOR LH	1	Rp519.000
3	09137-06032-000	SCREW	6	Rp16.500
4	82610M76M01-000 SUB: 82610M76M00-000	STRIKER, DOOR LATCH	2	Rp27.000
5	09137-08014-000 SUB: 09137-08004-000	SCREW	4	Rp23.000
6-1	82830M66R10-ZAM	HANDLE, REAR DOOR OUT RH	1	Rp338.000
6-2	82830M66R10-ZHJ	HANDLE, REAR DOOR OUT RH	1	Rp338.000
6-3	82830M66R10-ZNZ	HANDLE, REAR DOOR OUT RH	1	Rp338.000
6-4	82830M66R10-ZWR	HANDLE, REAR DOOR OUT RH	1	Rp338.000
6-5	82830M66R10-ZWS	HANDLE, REAR DOOR OUT RH	1	Rp338.000
6-6	82830M66R10-Z2S	HANDLE, REAR DOOR OUT RH	1	Rp338.000
6-7	DISCONTINUE SUB: 82830M66R10-26U	HANDLE, REAR DOOR OUT RH	1	-	5AGS:GX
7-2	82840M66R10-ZHJ	HANDLE, REAR DOOR OUT LH	1	Rp338.000
7-7	DISCONTINUE SUB: 82840M66R10-26U	HANDLE, REAR DOOR OUT LH	1	-	5AGS:GX
7-6	82840M66R10-Z2S	HANDLE, REAR DOOR OUT LH	1	Rp338.000
7-5	82840M66R10-ZWS	HANDLE, REAR DOOR OUT LH	1	Rp338.000
7-4	82840M66R10-ZWR	HANDLE, REAR DOOR OUT LH	1	Rp338.000
7-3	82840M66R10-ZNZ	HANDLE, REAR DOOR OUT LH	1	Rp338.000
7-1	82840M66R10-ZAM	HANDLE, REAR DOOR OUT LH	1	Rp338.000
8	09116-06168-000 SUB: 09116-06001-000	BOLT	4	Rp15.000
9-1	83110M76M01-5PK SUB: 83110M76M00-5PK	HANDLE, SIDE DOOR INSIDE RH	1	Rp65.500	GL
9-2	83110M55K20-C48	HANDLE, SIDE DOOR INSIDE RH	1	Rp145.000	GX
10-1	83130M76M01-5PK SUB: 83130M76M00-5PK	HANDLE, SIDE DOOR INSIDE LH	1	Rp65.500	GL
10-2	83130M55K20-C48	HANDLE, SIDE DOOR INSIDE LH	1	Rp145.000	GX
11	83119M75J00-000	NUT	2	Rp5.500
12	83271M66R00-000	CLIP	2	Rp6.500
13	09132-05058-000	SCREW	2	Rp14.000
