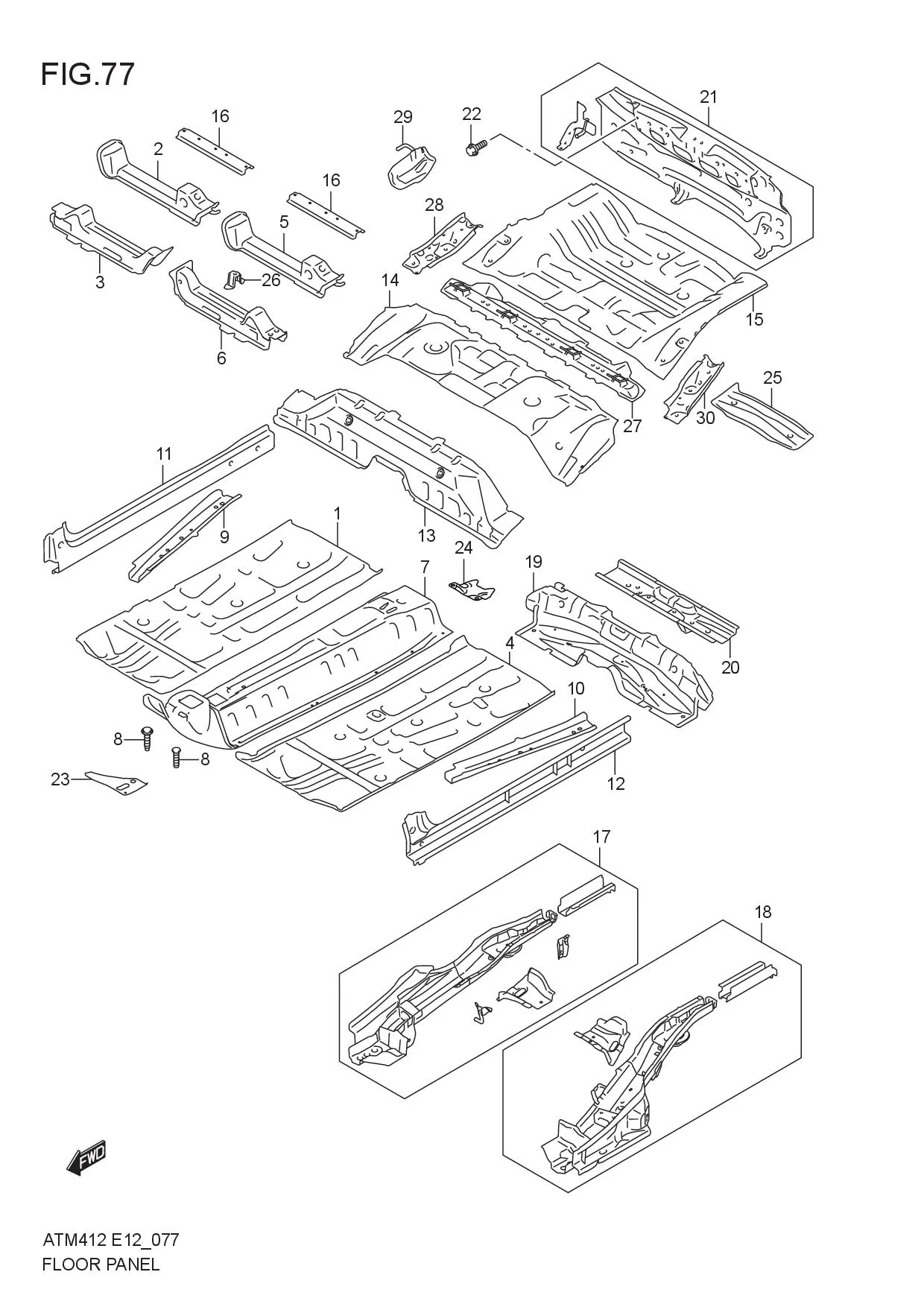

FLOOR PANEL

FLOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 61111M66R00-000 PAN, MAIN FLOOR RH 1 Rp564.500
2 61130M66R00-000 CROSSMEMBER,FLR UPR CTR,RH 1 Rp563.000
3 61120M66R00-000 CROSSMEMBER, FLR PAN UPR RH 1 Rp519.000
4 61161M66R10-000 PAN, MAIN FLOOR LH 1 Rp564.500
5 61180M66R00-000 CROSSMEMBER,FLR UPR CTR,LH 1 Rp563.000
6 61170M66R00-000 CROSSMEMBER, FLR PAN UPR LH 1 Rp519.000
7 61210M66R00-000 TUNNEL, MAIN FLOOR 1 Rp2.680.000
8 09119-05018-000 BOLT 6 Rp13.000
9 61241M66R00-000 MEMBER, FL SIDE RH 1 Rp303.500
10 61261M66R00-000 MEMBER, FL SIDE LH 1 Rp303.500
11 61310M66R00-000 PANEL, SIDE SILL INR RH 1 Rp646.500
12 61320M66R00-000 PANEL, SIDE SILL INR LH 1 Rp646.500
13 61511M66R10-000 PANEL, REAR FLOOR FR 1 Rp620.000
14 61512M66R11-000
SUB: 61512M66R10-000		 PANEL, REAR FLOOR CTR 1 Rp601.500
15 61513M66R10-000 PANEL, REAR FLOOR RR 1 Rp1.162.500
16 61119M66R00-000 MEMBER,FLR PAN RR 2 Rp127.000
17 62100M66R00-000 MEMBER,RR FLOOR SIDE,RH 1 Rp1.795.000
18 62300M66R00-000 MEMBER, RR FL SIDE LH 1 Rp1.795.000
19 62600M66R00-000 CROSSMEMBER, RR FL FR 1 Rp666.500
20 62700M66R10-000 CROSSMEMBER, RR FL CTR 1 Rp450.500
21 65400M66R00-000 PANEL,REAR SKIRT 1 Rp486.500
22 DISCONTINUE
SUB: 01550B0612AN000		 BOLT,REAR SKIRT 4 -
23 61117M62R00-000 REINF,MAIN FLOOR INSIDE,R 1 Rp133.500
24 61516M62R10-000 REINF,REAR FLOOR CTR 1 Rp10.500
25 61517M66R00-000 REINF,REAR FLOOR INNER 1 Rp112.500
26 61518M66R00-000 BRACKET,SPARE TIRE 1 Rp33.500
27 61520M66R10-000 MEMBER,RR SEAT BACK MTG 1 Rp523.000
28 61531M66R00-000 REINF,RR SEAT BELT SIDE,R 1 Rp78.500
29 61550M66R00-000 BRACKET,TOWING HOOK 1 Rp99.000
30 61571M66R00-000 REINF,RR SEAT BELT SIDE,L 1 Rp78.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
