IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANEL (GL)FRONT FENDER PANEL (GX)FRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPER (GL)FRONT BUMPER (GX)REAR BUMPER (GL)REAR BUMPER (GX)INSTRUMENT PANELVENTILATORHEATER UNIT (W/MANUAL AIR CONDITIONER)HEATER UNIT (W/AUTO AIR CONDITIONER)HEATER CONTROL (W/MANUAL AIR CONDITIONER:W/REAR DEFOGGER)HEATER CONTROL (W/AUTO AIR CONDITIONER)CONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER / CAPFUEL LID OPENERROOF SIDE PADROOF LININGMOLDINGSPLASH GUARD (GX)EMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATOR (W/REAR POWER WINDOW)FRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (GL)MIRROR/SUNVISOR (GX)SEAT BELTFRONT LH SEATFRONT RH SEAT (GL)FRONT RH SEAT (GX)REAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

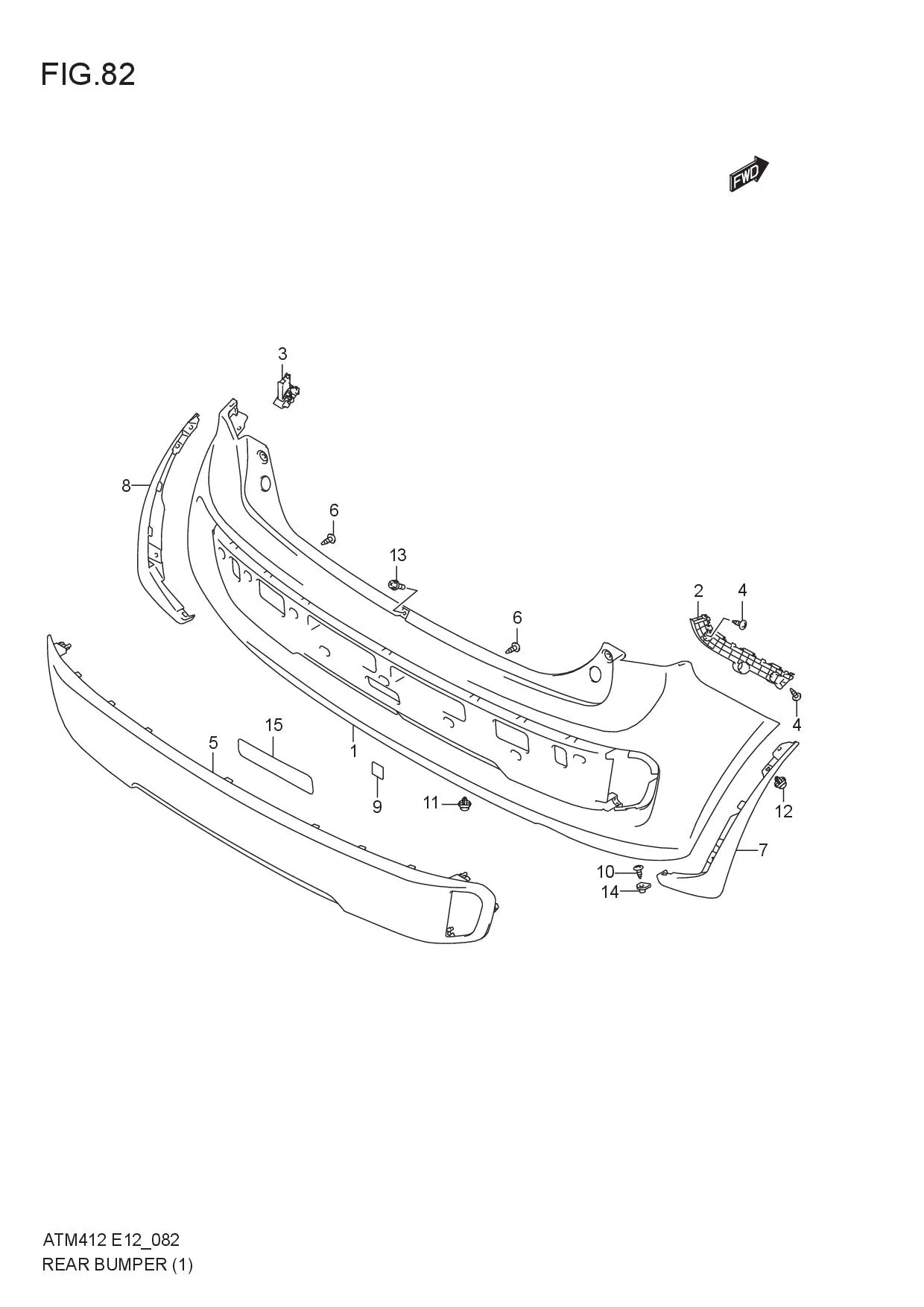

REAR BUMPER (GL)

REAR BUMPER (GL)
No No. Part Description Qty Price Per Pcs Remarks
1 71811M66R00-799 BUMPER, REAR(PRIMARY) 1 Rp1.350.000 PAINT TO MATCH
2 71821M66R00-000 HOLDER, RR BUMPER SIDE RH 1 Rp27.000
3 71822M66R00-000 HOLDER, RR BUMPER SIDE LH 1 Rp27.000
4 03541-0512A-000
SUB: 03541M0512A-000		 SCREW 4 Rp3.500
5 71831M66R00-5PK GARNISH, REAR BUMPER 1 Rp232.500
6 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 3 Rp3.500
7 71841M62R00-5PK EXTENSION, REAR BUMPER RH 1 Rp35.000
8 71842M62R00-5PK EXTENSION, REAR BUMPER LH 1 Rp35.000
9 75463-74P10-000
SUB: 75463-71L00-000		 PAD, REAR BUMPER 1 Rp92.500
10 09132M05063-000 SCREW 2 Rp5.500
11 09409M08006-000
SUB: 09409M08L01-000		 CLIP 3 Rp5.000
12 09409M08006-000
SUB: 09409M08L01-000		 CLIP 4 Rp5.000
13 01551-0616C-000 BOLT 3 Rp14.500
14 09148-05028-000 NUT 2 Rp13.000
15 71851M62R00-000 PAD,REAR SKIRT 1 Rp23.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
