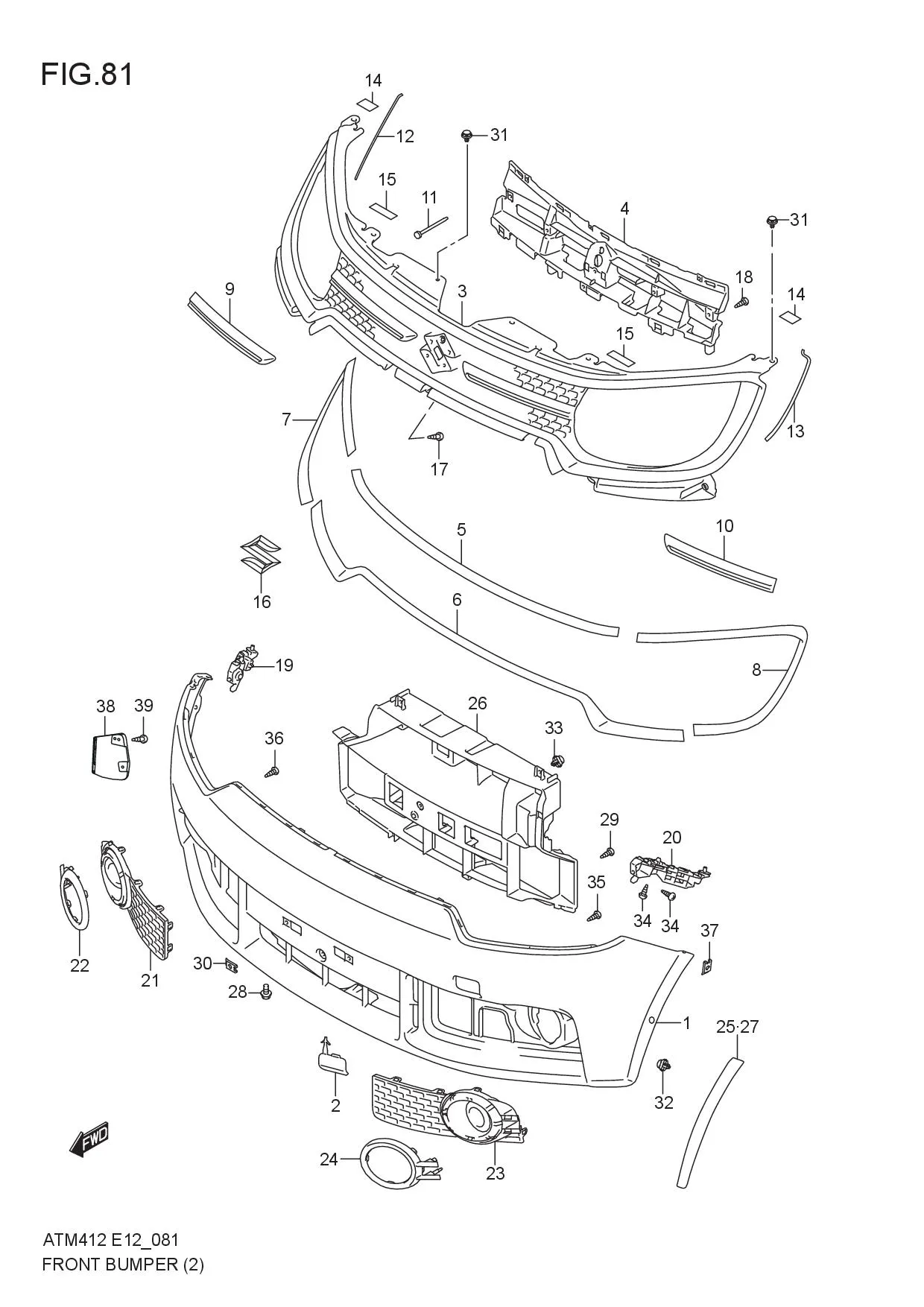

FRONT BUMPER (GX)

FRONT BUMPER (GX)
No No. Part Description Qty Price Per Pcs Remarks
1 71711M66R10-799 BUMPER, FRONT (PRIMARY) 1 Rp1.088.500 PAINT TO MATCH
2 71712M62R00-5PK
SUB: 71712M62R00-799		 CAP, TOWING HOOK (PRIMARY) 1 Rp10.500 PAINT TO MATCH
3 72111M66R10-5PK GRILLE, RADIATOR UPPER 1 Rp478.000
4 72112M66R00-000 COVER, RADIATOR UPPER GRILLE 1 Rp118.500
5 72121M66R10-0PG MOLDING, RADIATOR GRILLE UPR 1 Rp297.500
6 72122M66R10-0PG MOLDING, RADIATOR GRILLE LWR 1 Rp400.000
7 72123M66R10-0PG MOLDING, RADIATOR GRILLE SIDE RH 1 Rp181.000
8 72124M66R10-0PG MOLDING, RADIATOR GRILLE SIDE LH 1 Rp181.000
9 72125M66R00-D51 GARNISH, RADIATOR GRILLE RH 1 Rp190.000
10 72126M66R00-D51 GARNISH, RADIATOR GRILLE LH 1 Rp190.000
11 72127M62R00-000 PIN, RADIATOR GRILLE UPR 2 Rp8.000
12 72131M66R00-000 PROTECTOR, RADIATOR GRILLE RH 1 Rp5.500
13 72132M66R00-000 PROTECTOR, RADIATOR GRILLE LH 1 Rp5.500
14 72151M62R00-000 PAD, RADIATOR GRILLE NO.1 2 Rp6.500
15 72152M62R00-000 PAD, RADIATOR GRILLE NO.2 4 Rp7.000
16 77811-54GC0-0PG
SUB: 77811B54GC0N0PG		 EMBLEM, MARK(S) 1 Rp49.500
17 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 11 Rp3.500
18 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 6 Rp3.500
19 71731M66R00-000 HOLDER, FR BUMPER SIDE RH 1 Rp23.000
20 71732M66R00-000 HOLDER,FR BUMPER SIDE LH 1 Rp23.000
21 71751M66R30-5PK BEZEL, FRONT FOG LAMP RH 1 Rp23.500
22 71752M62R20-0PG GARNISH, FRONT FOG LAMP BEZEL RH 1 Rp137.500
23 71761M66R30-5PK BEZEL, FRONT FOG LAMP LH 1 Rp23.500
24 71762M62R20-0PG GARNISH, FRONT FOG LAMP BEZEL LH 1 Rp137.500
25 71770M66R10-5PK EXTENSION ASSY, FR BPR SIDE RH 1 Rp90.500
26 71772M66R00-000 GUIDE, GRILLE AIR 1 Rp290.500
27 71780M66R10-5PK EXTENSION ASSY, FR BPR SIDE LH 1 Rp90.500
28 09122-76006-000 BOLT 1 Rp13.000
29 09136-05068-000 SCREW 2 Rp15.000
30 08315-11069-000
SUB: 09148M06022-000		 NUT 2 Rp2.500
31 09409M08006-000
SUB: 09409M08L01-000		 CLIP 8 Rp5.000
32 09409M07L01-000 CLIP 2 Rp5.000
33 09409M07L01-000 CLIP 2 Rp5.000
34 03541-0512A-000
SUB: 03541M0512A-000		 SCREW 4 Rp3.500
35 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
36 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 5 Rp3.500
37 08316-1005A-000
SUB: 08316B1005AN000		 NUT 6 Rp2.500
38 71773M66R00-000 COVER,FRONT FOG LAMP BEZEL 1 Rp21.500
39 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
