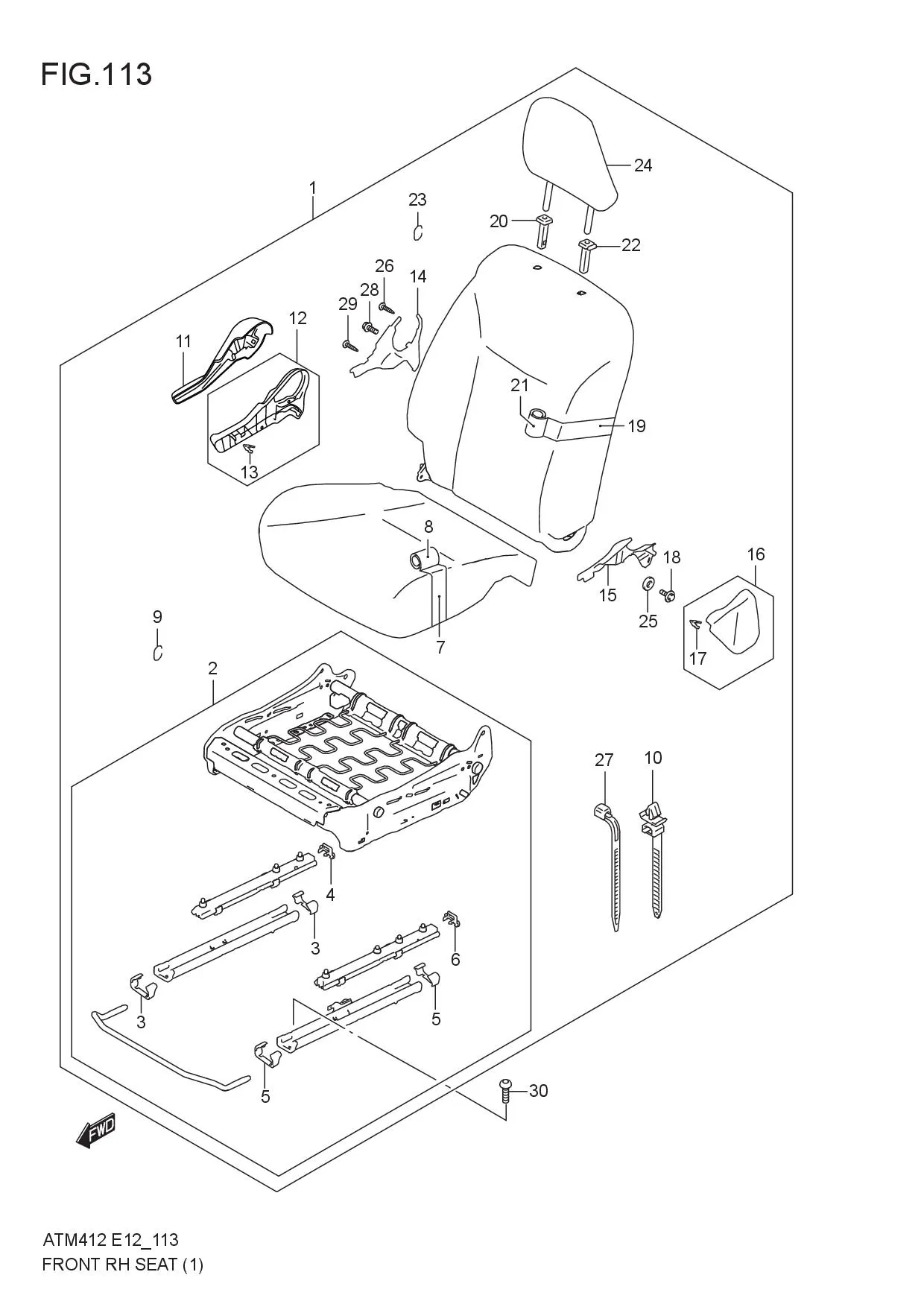

FRONT RH SEAT (GL)

No	No. Part	Description	Qty	Price Per Pcs
1	85001M66RA0-CMC	SEAT ASSY, FR RH	1	Rp5.681.000
2	85103M66R02-000 SUB: 85103M66R00-000	•FRAME ASSY, FR CUSH RH	1	Rp2.247.000
3	86652M74P50-000	••CAP, FR ADJUSTER LOWER	2	Rp5.500
4	86653M74P50-000	••CAP, FR ADJUSTER UPPER	1	Rp5.500
5	86652M74P50-000	••CAP, FR ADJUSTER LOWER	2	Rp5.500
6	86653M74P50-000	••CAP, FR ADJUSTER UPPER	1	Rp5.500
7	85160M66RA0-000	•PAD, FR CUSH	1	Rp523.000
8	85180M66RA0-CMC	•TRIM, FR CUSH RH	1	Rp466.500
9	09387-19001-000 SUB: 09387B19001N000	•RING	6	Rp9.000
10	85191M74L00-000	•CLAMP	1	Rp9.000
11	85211M62R00-5PK	•KNOB, RCLNG RH (BLACK)	1	Rp35.000
12	85220M62R00-5PK	•COVER, FR RCLNG OUTSIDE RH (BLACK)	1	Rp26.000
13	85249M68P00-000	••CLIP	1	Rp9.500
14	85222M68P00-5PK	•COVER, FR RCLNG INSIDE LOWER RH (BLACK)	1	Rp22.000
15	85222M68P10-5PK	•COVER, FR RCLNG INSIDE LOWER RH (BLACK)	1	Rp23.000
16	85241M68P10-5PK	•COVER, FR RCLNG INSIDE RH (BLACK)	1	Rp29.000
17	85249M68P00-000	••CLIP	1	Rp9.500
18	85295-58J01-000 SUB: 85295B58J01N000	•BOLT, FR BACK FIX	1	Rp34.000
19	85305M66RA0-000	•BACK S/ASSY, FR RH	1	Rp1.659.000
20	85341M68P00-5PK	•GUIDE, HEADRESTRAINT (BLACK)	1	Rp15.000
21	85380M66RA0-CMC	•TRIM, FR BACK RH	1	Rp652.500
22	85840M68P00-5PK	•GUIDE, HEADRESTRAINT (BLACK)	1	Rp31.000
23	09387-19001-000 SUB: 09387B19001N000	•RING	12	Rp9.000
24	86401M68P70-PWC	•HEADRESTRAINT ASSY, FR	1	Rp430.500
25	87286-58J10-000 SUB: 87286B58J10N000	•BUSH, FR BACK FIX	1	Rp4.500
26	09132M04038-000	•SCREW	1	Rp5.500
27	36990-25G00-000 SUB: 09407-14403L000	•CLAMP	1	Rp13.000
28	01550-1016A-000 SUB: 01550B1016AN000	•BOLT	2	Rp5.500
29	03541-0410A-000	•SCREW	2	Rp11.000
30	09119M08118-000 SUB: 09119M08111-000	BOLT	4	Rp6.500
