IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANEL (GL)FRONT FENDER PANEL (GX)FRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPER (GL)FRONT BUMPER (GX)REAR BUMPER (GL)REAR BUMPER (GX)INSTRUMENT PANELVENTILATORHEATER UNIT (W/MANUAL AIR CONDITIONER)HEATER UNIT (W/AUTO AIR CONDITIONER)HEATER CONTROL (W/MANUAL AIR CONDITIONER:W/REAR DEFOGGER)HEATER CONTROL (W/AUTO AIR CONDITIONER)CONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER / CAPFUEL LID OPENERROOF SIDE PADROOF LININGMOLDINGSPLASH GUARD (GX)EMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATOR (W/REAR POWER WINDOW)FRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (GL)MIRROR/SUNVISOR (GX)SEAT BELTFRONT LH SEATFRONT RH SEAT (GL)FRONT RH SEAT (GX)REAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

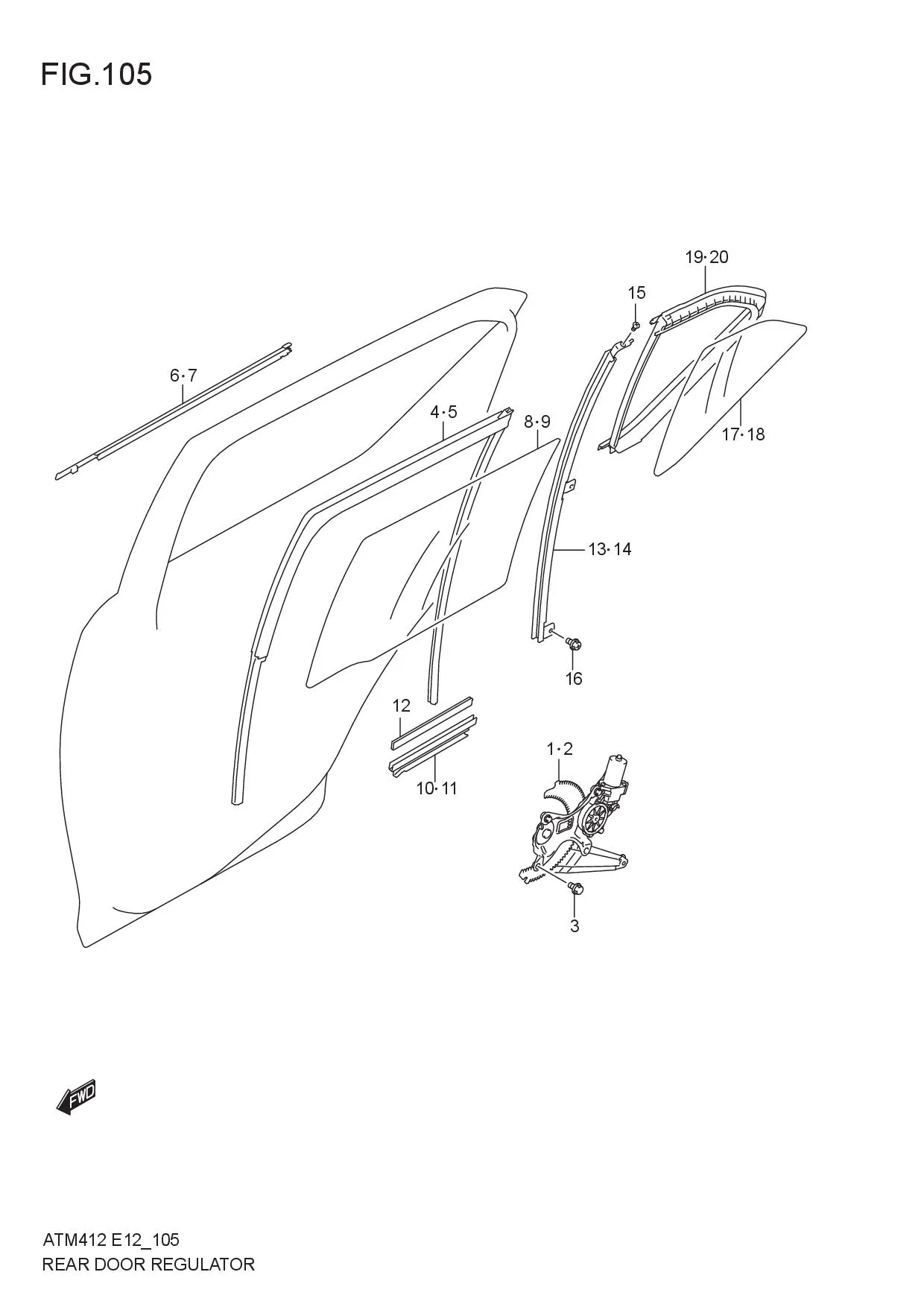

REAR DOOR REGULATOR (W/REAR POWER WINDOW)

REAR DOOR REGULATOR (W/REAR POWER WINDOW)
No No. Part Description Qty Price Per Pcs Remarks
1 83501M66R20-000
SUB: 83501M66R10-000		 REGULATOR ASSY, REAR WINDOW RH 1 Rp113.500
2 83502M66R20-000
SUB: 83502M66R10-000		 REGULATOR ASSY, REAR WINDOW LH 1 Rp113.500
3 02112M7610A-000 SCREW 4 Rp5.500
4 83671M66R00-000 RUN, REAR DOOR GLASS RH 1 Rp257.500
5 83675M66R00-000 RUN, REAR DOOR GLASS LH 1 Rp257.500
6 83831M66R00-000 WEATHERSTRIP, REAR DOOR OUT RH 1 Rp87.000
7 83841M66R00-000 WEATHERSTRIP, REAR DOOR OUT LH 1 Rp87.000
8 84541M66R00-000 GLASS, REAR DOOR WINDOW RH 1 Rp280.500
9 84546M66R00-000 GLASS, REAR DOOR WINDOW LH 1 Rp280.500
10 83630M66R00-000 CHANNEL, RR GLASS BOTTOM RH 1 Rp34.000
11 83640M66R00-000 CHANNEL, RR GLASS BOTTOM LH 1 Rp34.000
12 83691M76G00-000 RUBBER, RR GLASS BOTTOM CHANNEL 2 Rp8.000
13 81770M66R00-000 SASH, REAR DOOR CENTER RH 1 Rp105.000
14 81780M66R00-000 SASH, REAR DOOR CENTER LH 1 Rp105.000
15 02122-0410A-000 SCREW 2 Rp10.000
16 02162-0612A-000 BOLT 4 Rp11.000
17 84551M66R00-000 GLASS, REAR DOOR PARTITION RH 1 Rp149.000
18 84556M66R00-000 GLASS, REAR DOOR PARTITION LH 1 Rp149.000
19 84665M66R00-000 WEATHERSTRIP, RR DR PARTITION RH 1 Rp211.000
20 84675M66R00-000 WEATHERSTRIP, RR DR PARTITION LH 1 Rp211.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
