IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANEL (GL)FRONT FENDER PANEL (GX)FRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPER (GL)FRONT BUMPER (GX)REAR BUMPER (GL)REAR BUMPER (GX)INSTRUMENT PANELVENTILATORHEATER UNIT (W/MANUAL AIR CONDITIONER)HEATER UNIT (W/AUTO AIR CONDITIONER)HEATER CONTROL (W/MANUAL AIR CONDITIONER:W/REAR DEFOGGER)HEATER CONTROL (W/AUTO AIR CONDITIONER)CONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER / CAPFUEL LID OPENERROOF SIDE PADROOF LININGMOLDINGSPLASH GUARD (GX)EMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATOR (W/REAR POWER WINDOW)FRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (GL)MIRROR/SUNVISOR (GX)SEAT BELTFRONT LH SEATFRONT RH SEAT (GL)FRONT RH SEAT (GX)REAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

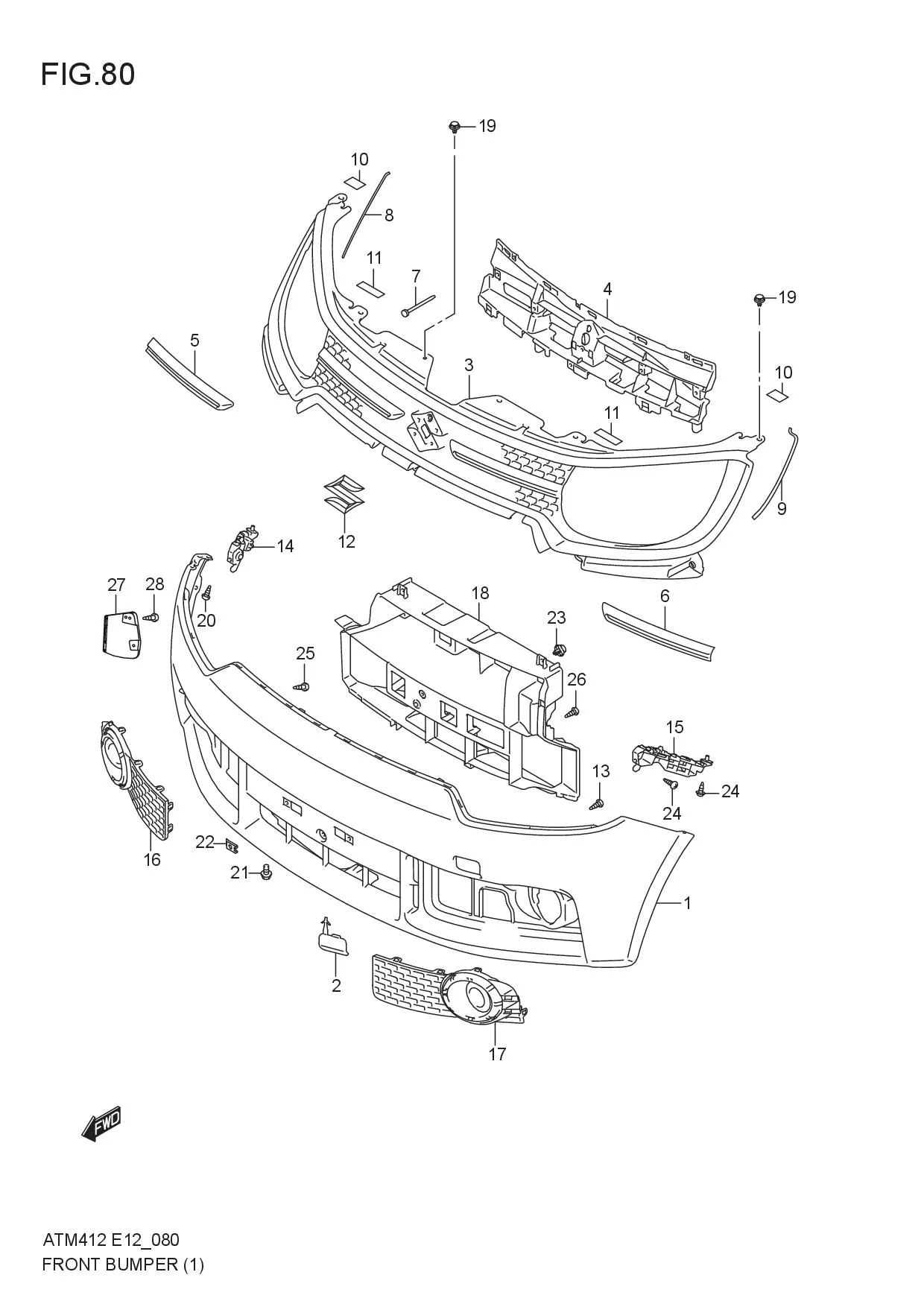

FRONT BUMPER (GL)

FRONT BUMPER (GL)
No No. Part Description Qty Price Per Pcs Remarks
1 71711M66R00-799 BUMPER, FRONT(PRIMARY) 1 Rp1.350.000 PAINT TO MATCH
2 71712M62R00-5PK
SUB: 71712M62R00-799		 CAP, TOWING HOOK(PRIMARY) 1 Rp10.500 PAINT TO MATCH
3 72111M66R00-5PK GRILLE, RADIATOR UPPER 1 Rp553.000
4 72112M66R00-000 COVER, RADIATOR UPPER GRILLE 1 Rp118.500
5 72125M66R00-D51 GARNISH, RADIATOR GRILLE RH 1 Rp190.000
6 72126M66R00-D51 GARNISH, RADIATOR GRILLE LH 1 Rp190.000
7 72127M62R00-000 PIN, RADIATOR GRILLE UPR 2 Rp8.000
8 72131M66R00-000 PROTECTOR, RADIATOR GRILLE RH 1 Rp5.500
9 72132M66R00-000 PROTECTOR, RADIATOR GRILLE LH 1 Rp5.500
10 72151M62R00-000 PAD, RADIATOR GRILLE NO.1 2 Rp6.500
11 72152M62R00-000 PAD, RADIATOR GRILLE NO.2 4 Rp7.000
12 77811-54GC0-0PG
SUB: 77811B54GC0N0PG		 EMBLEM, MARK(S) 1 Rp49.500
13 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 8 Rp3.500
14 71731M66R00-000 HOLDER, FR BUMPER SIDE RH 1 Rp23.000
15 71732M66R00-000 HOLDER, FR BUMPER SIDE LH 1 Rp23.000
16 71751M66R00-5PK BEZEL, FRONT FOG LAMP RH 1 Rp56.500
17 71761M66R00-5PK BEZEL, FRONT FOG LAMP LH 1 Rp56.500
18 71772M66R00-000 GUIDE, GRILLE AIR 1 Rp290.500
19 09409M08006-000
SUB: 09409M08L01-000		 CLIP 8 Rp5.000
20 09136-05068-000 SCREW 2 Rp15.000
21 09122-76006-000 BOLT 3 Rp13.000
22 08315-11069-000
SUB: 09148M06022-000		 NUT 4 Rp2.500
23 09409M07L01-000 CLIP 2 Rp5.000
24 03541-0512A-000
SUB: 03541M0512A-000		 SCREW 4 Rp3.500
25 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
26 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 5 Rp3.500
27 71773M66R00-000 COVER,FRONT FOG LAMP BEZEL 1 Rp21.500
28 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
