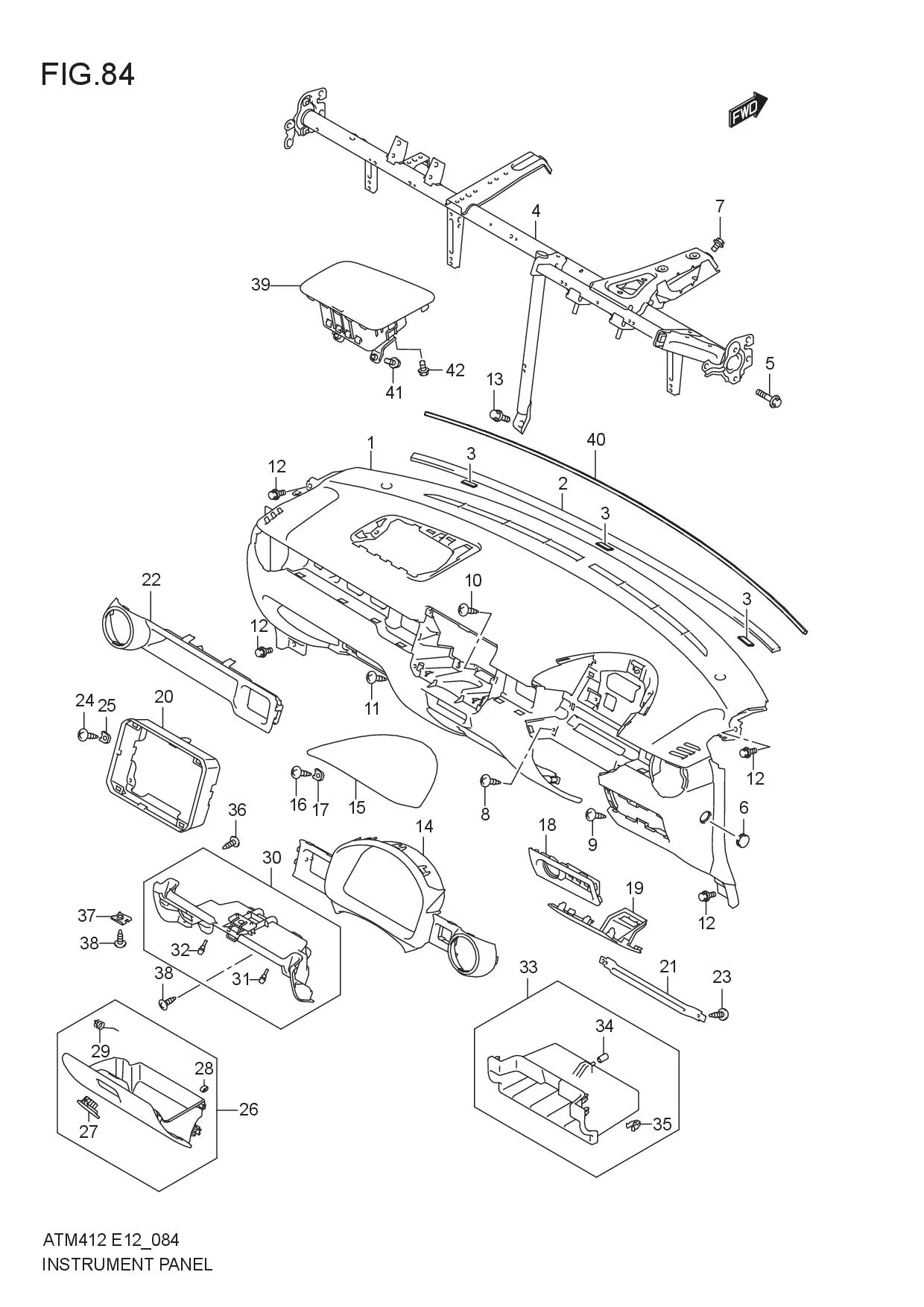

INSTRUMENT PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73111M66R01-CFG SUB: 73111M66R00-CFG	PANEL, INSTRUMENT MAIN	1	Rp941.000
2	73118-58J00-000 SUB: 73118B58J00N000	SEAL, I/P	1	Rp10.000
3	73123-61M00-000	FELT, I/P TOP	3	Rp16.000
4	73200M66R10-000	MEMBER, STEERING SUPPORT	1	Rp472.000
5	73291-50G20-000	BOLT, STRG SUPPORT MBR SIDE	4	Rp42.500
6	73871-73H00-5PK	CAP, I/P SIDE	3	Rp43.500
7	73291-52R00-000	BOLT, COWL UPPER	2	Rp19.500
8	09132-05049-000	SCREW	2	Rp21.000
9	09132-05049-000	SCREW	1	Rp21.000
10	09132-05049-000	SCREW	2	Rp21.000
11	09132-05049-000	SCREW	2	Rp21.000
12	09138M06054-000	SCREW	4	Rp5.000
13	01551-0816C-000 SUB: 01551-0816A-000	BOLT	1	Rp13.500
14	73311M66R00-5PK	PANEL, INSTRUMENT CLUSTER	1	Rp103.000
15	73320M66R00-5PK	PANEL, METER VISOR	1	Rp126.500
16	03541-0516A-000 SUB: 03541B0516AN000	SCREW	3	Rp3.500
17	09148M05L04-000	NUT	3	Rp5.000
18-1	73831M66R00-PF4	BEZEL, I/P SWITCH DRVR OUTSIDE	1	Rp22.500	GL
18-2	73831M66R10-PF4	BEZEL, I/P SWITCH DRVR OUTSIDE	1	Rp25.000	GX
19	73811M66R00-PF4	COVER, I/P DRVR LOWER	1	Rp41.500
20	73822M62R00-5PK	BASE, I/P CTR GARNISH	1	Rp49.500
21	73826M66R00-000 SUB: 73826M62R00-000	REINF, I/P CENTER LOWER	1	Rp20.000
22	73841M66R00-5PK	GARNISH, I/P PASSENGER	1	Rp70.000
23	03541-0516A-000 SUB: 03541B0516AN000	SCREW	2	Rp3.500
24	03541-0516A-000 SUB: 03541B0516AN000	SCREW	4	Rp3.500
25	09148M05L04-000	NUT	4	Rp5.000
26	73410M66R00-PF4	BOX, GLOVE	1	Rp304.000
27	73413M62R00-PF4	•KNOB, GLOVE BOX	1	Rp9.000
28	73413M65D00-000	•CUSHION, GLOVE BOX SIDE	1	Rp6.500
29	73423M62R00-000	•SPRING, GLOVE BOX	1	Rp5.500
30	73420M66R00-000	COVER, GLOVE BOX UPPER	1	Rp121.000
31	73413M82C00-000	•CUSHION, GLOVE BOX UPPER	1	Rp11.500
32	73461M53M00-000	•CUSHION, GLOVE BOX	2	Rp7.000
33	73431M66R00-000	CASE, SERVICE MANUAL	1	Rp110.500
34	73132-57L00-000	•CAP, MANUAL CASE	1	Rp38.000
35	09409M08344-000	•CLIP	4	Rp4.500
36	09132-05049-000	SCREW	2	Rp21.000
37	09148M05L04-000	NUT	1	Rp5.000
38	03541-0516A-000 SUB: 03541B0516AN000	SCREW	5	Rp3.500
39	73910M66R00-5PK	MODULE ASSY, PASSENGER AIR BAG	1	Rp2.719.000
40	73114M50M00-000	SILENCER, I/P TOP	1	Rp33.000
41	01551-0816C-000 SUB: 01551-0816A-000	BOLT	2	Rp13.500
42	02162-0616A-000	SCREW	2	Rp3.000
