IGNIS

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANEL (GL)FRONT FENDER PANEL (GX)FRONT BODY PANEL FLOOR PANEL SIDE BODY PANEL ROOF PANEL FRONT BUMPER (GL)FRONT BUMPER (GX)REAR BUMPER (GL)REAR BUMPER (GX)INSTRUMENT PANEL VENTILATOR HEATER UNIT (W/MANUAL AIR CONDITIONER)HEATER UNIT (W/AUTO AIR CONDITIONER)HEATER CONTROL (W/MANUAL AIR CONDITIONER:W/REAR DEFOGGER)HEATER CONTROL (W/AUTO AIR CONDITIONER)CONSOLE BOX FLOOR CARPET INTERIOR TRIM COVER / CAP FUEL LID OPENER ROOF SIDE PAD ROOF LINING MOLDING SPLASH GUARD (GX)EMBLEM WINDSHIELD FRONT DOOR PANEL REAR DOOR PANEL BACK DOOR PANEL FRONT DOOR REGULATOR REAR DOOR REGULATOR (W/REAR POWER WINDOW)FRONT DOOR LOCK REAR DOOR LOCK BACK DOOR LOCK MIRROR/SUNVISOR (GL)MIRROR/SUNVISOR (GX)SEAT BELT FRONT LH SEAT FRONT RH SEAT (GL)FRONT RH SEAT (GX)REAR SEAT PARCEL SHELF FUEL TANK TOOL AIR CONDITIONER COMPRESSOR

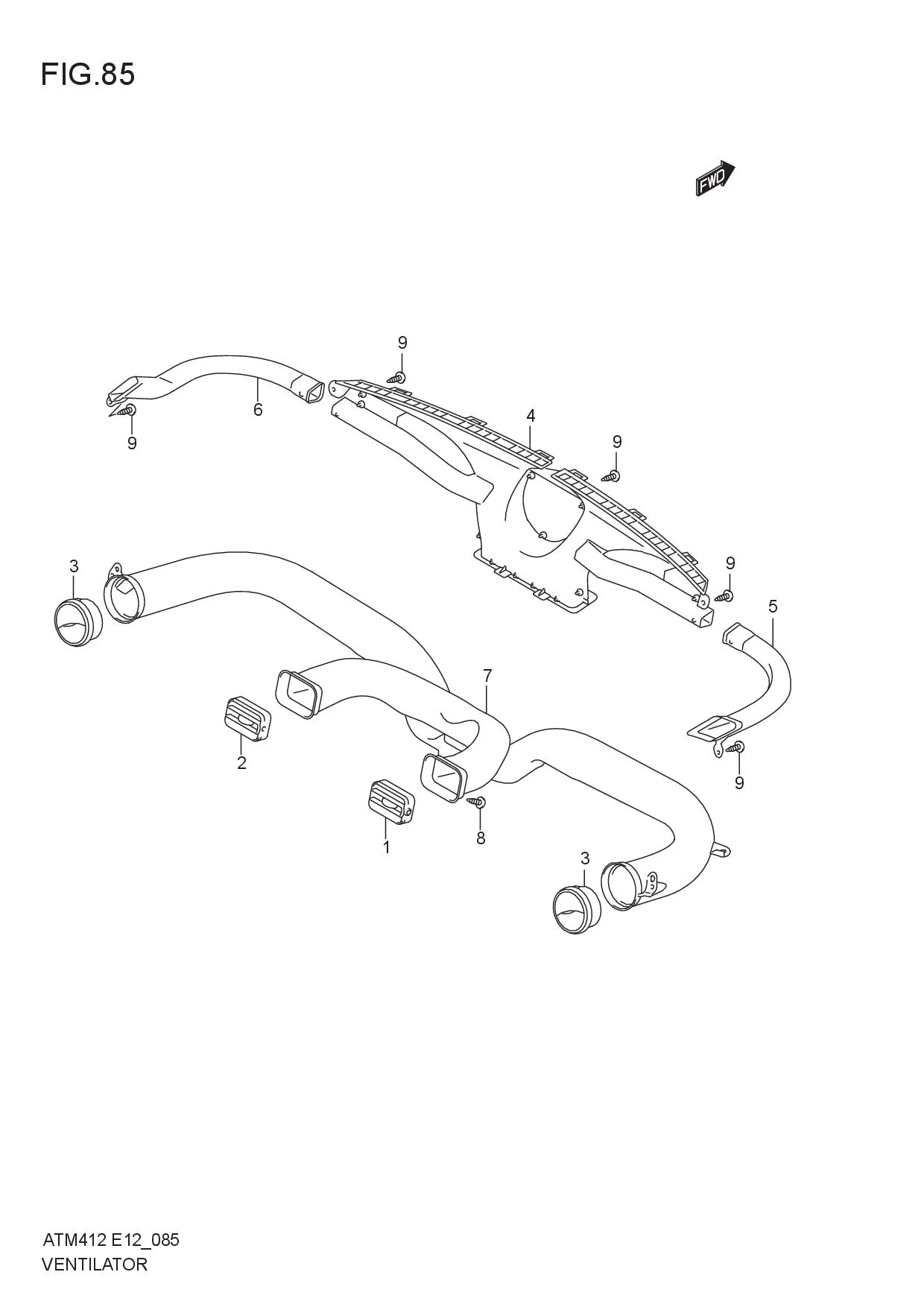

VENTILATOR

VENTILATOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	73611M66R00-5PK	LOUVER, CTR VENT RH	1	Rp115.000	GL
1-2	73611M66R00-AQS	LOUVER, CTR VENT RH	1	Rp115.000	GX
2-1	73621M66R00-5PK	LOUVER, CTR VENT LH	1	Rp117.500	GL
2-2	73621M66R00-AQS	LOUVER, CTR VENT LH	1	Rp115.000	GX
3-1	73630M66R00-5PK	LOUVER, SIDE VENT	2	Rp135.000	GL
3-2	73630M66R00-AQS	LOUVER, SIDE VENT	2	Rp135.000	GX
4	73661M66R00-000	NOZZLE, DFR	1	Rp198.000
5	73681M66R00-000	DUCT, DEMISTER RH	1	Rp47.500
6	73691M66R00-000	DUCT, DEMISTER LH	1	Rp45.500
7	74620M66R00-000	DUCT, VENT	1	Rp330.000
8	03141-0516B-000 SUB: 03141M0512A-000	SCREW	1	Rp3.500
9	03541-0516A-000 SUB: 03541B0516AN000	SCREW	5	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
