IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANEL (GL)FRONT FENDER PANEL (GX)FRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPER (GL)FRONT BUMPER (GX)REAR BUMPER (GL)REAR BUMPER (GX)INSTRUMENT PANELVENTILATORHEATER UNIT (W/MANUAL AIR CONDITIONER)HEATER UNIT (W/AUTO AIR CONDITIONER)HEATER CONTROL (W/MANUAL AIR CONDITIONER:W/REAR DEFOGGER)HEATER CONTROL (W/AUTO AIR CONDITIONER)CONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER / CAPFUEL LID OPENERROOF SIDE PADROOF LININGMOLDINGSPLASH GUARD (GX)EMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATOR (W/REAR POWER WINDOW)FRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (GL)MIRROR/SUNVISOR (GX)SEAT BELTFRONT LH SEATFRONT RH SEAT (GL)FRONT RH SEAT (GX)REAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

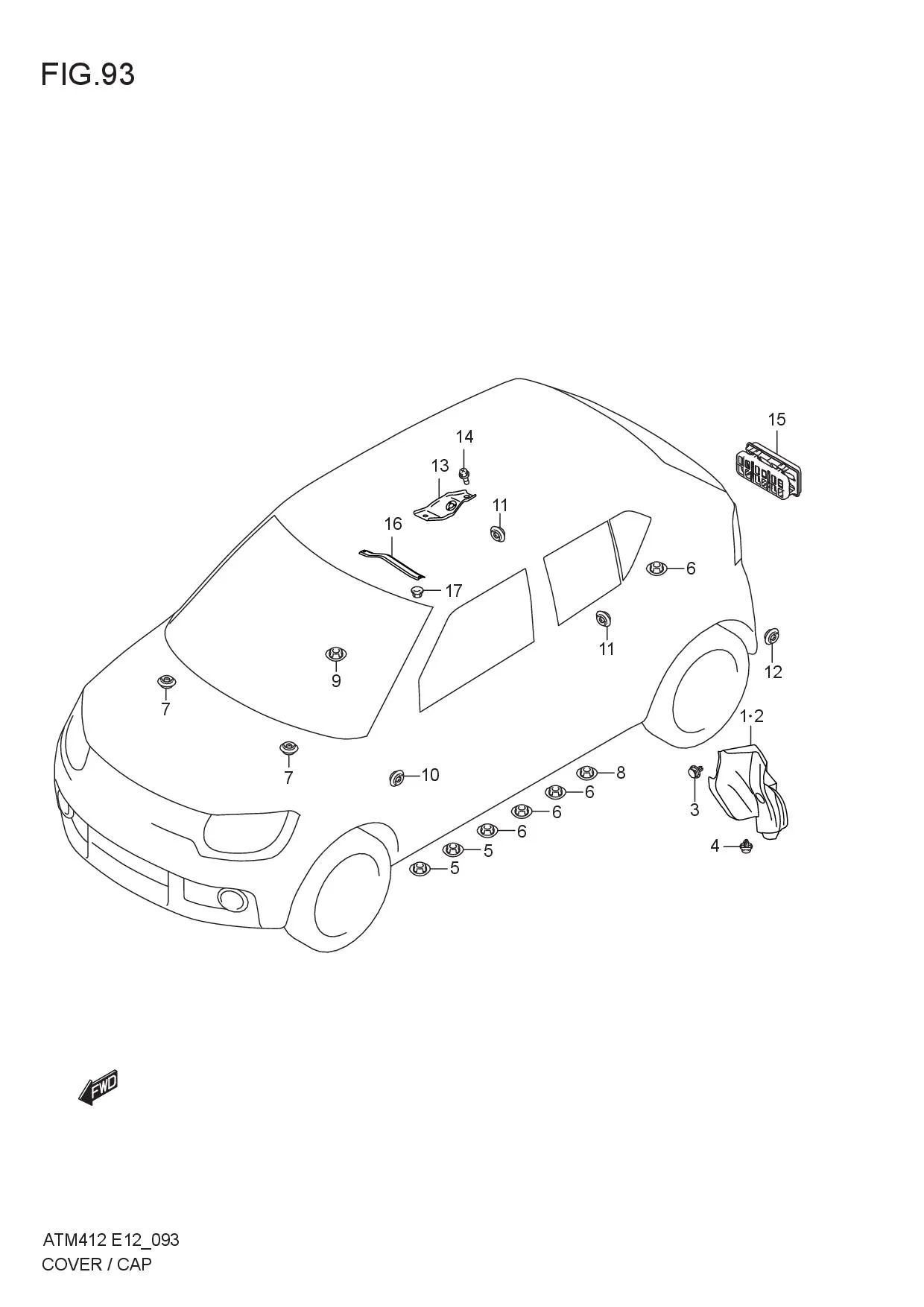

COVER / CAP

COVER / CAP
No No. Part Description Qty Price Per Pcs Remarks
1 72811M62R00-000 LINING, REAR WHEEL HSG RH 1 Rp47.500
2 72821M66R00-000 LINING, REAR WHEEL HSG LH 1 Rp48.500
3 09409M07L01-000 CLIP 4 Rp5.000
4 09409M08006-000
SUB: 09409M08L01-000		 CLIP 1 Rp5.000
5 75431-64L00-000 CAP, MAIN FLOOR DRAIN 6 Rp43.000
6 75431-64L00-000 CAP, REAR FLOOR DRAIN 4 Rp43.000
7 09250-10016-000
SUB: 09250M10L01-000		 CAP, COWL TOP 2 Rp14.000
8 09250M15022-000 CAP, MAIN FLOOR RR 2 Rp6.500
9 09250M15022-000 CAP, MAIN FLOOR TUNNEL 1 Rp6.500
10 09250-15012-000
SUB: 09250M15L01-000		 CAP, DASH SIDE 8 Rp5.000
11 09250M20031-000
SUB: 09250-20015-000		 CAP, REAR FLOOR 2 Rp4.500
12 09250M20031-000
SUB: 09250-20015-000		 CAP, SILL SIDE INNER 2 Rp4.500
13 75496M66R00-000 BRACKET, RR SEAT BELT CTR 1 Rp29.500
14 01551-1025A-000 BOLT, RR SEAT BELT CTR BRKT 1 Rp29.000
15 77330M68P00-000 OUTLET, VENTILATOR 2 Rp74.000
16 72411M66R20-000 BRACE, FLOOR TUNNEL 1 Rp29.500
17 08316-1008A-000
SUB: 08316B1008AN000		 NUT, FLOOR TUNNEL BRACE 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
