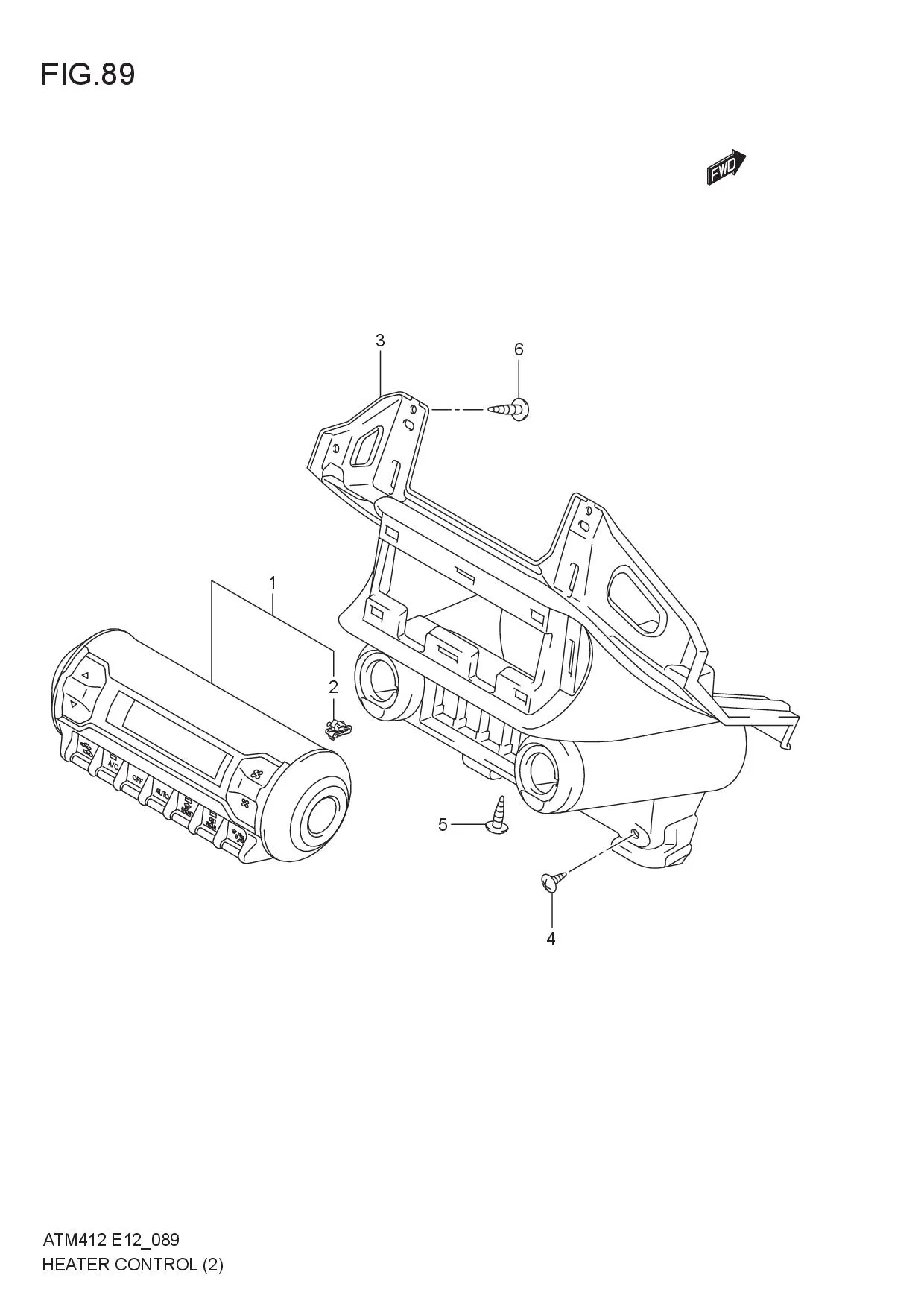

HEATER CONTROL (W/AUTO AIR CONDITIONER)

HEATER CONTROL (W/AUTO AIR CONDITIONER)
No No. Part Description Qty Price Per Pcs Remarks
1 39510-62R10-CLM
SUB: 39510-62R00-CLM		 PANEL UNIT, AUTO A/C 1 Rp4.110.000
2 09409-08349-000
SUB: 09409B08342N000		 •CLIP 4 Rp4.500
3 73825-62R00-5PK COVER, I/P CTR LWR 1 Rp347.500
4 09132-05049-000 SCREW 1 Rp21.000
5 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
6 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
