IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANEL (GL)FRONT FENDER PANEL (GX)FRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPER (GL)FRONT BUMPER (GX)REAR BUMPER (GL)REAR BUMPER (GX)INSTRUMENT PANELVENTILATORHEATER UNIT (W/MANUAL AIR CONDITIONER)HEATER UNIT (W/AUTO AIR CONDITIONER)HEATER CONTROL (W/MANUAL AIR CONDITIONER:W/REAR DEFOGGER)HEATER CONTROL (W/AUTO AIR CONDITIONER)CONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER / CAPFUEL LID OPENERROOF SIDE PADROOF LININGMOLDINGSPLASH GUARD (GX)EMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATOR (W/REAR POWER WINDOW)FRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (GL)MIRROR/SUNVISOR (GX)SEAT BELTFRONT LH SEATFRONT RH SEAT (GL)FRONT RH SEAT (GX)REAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

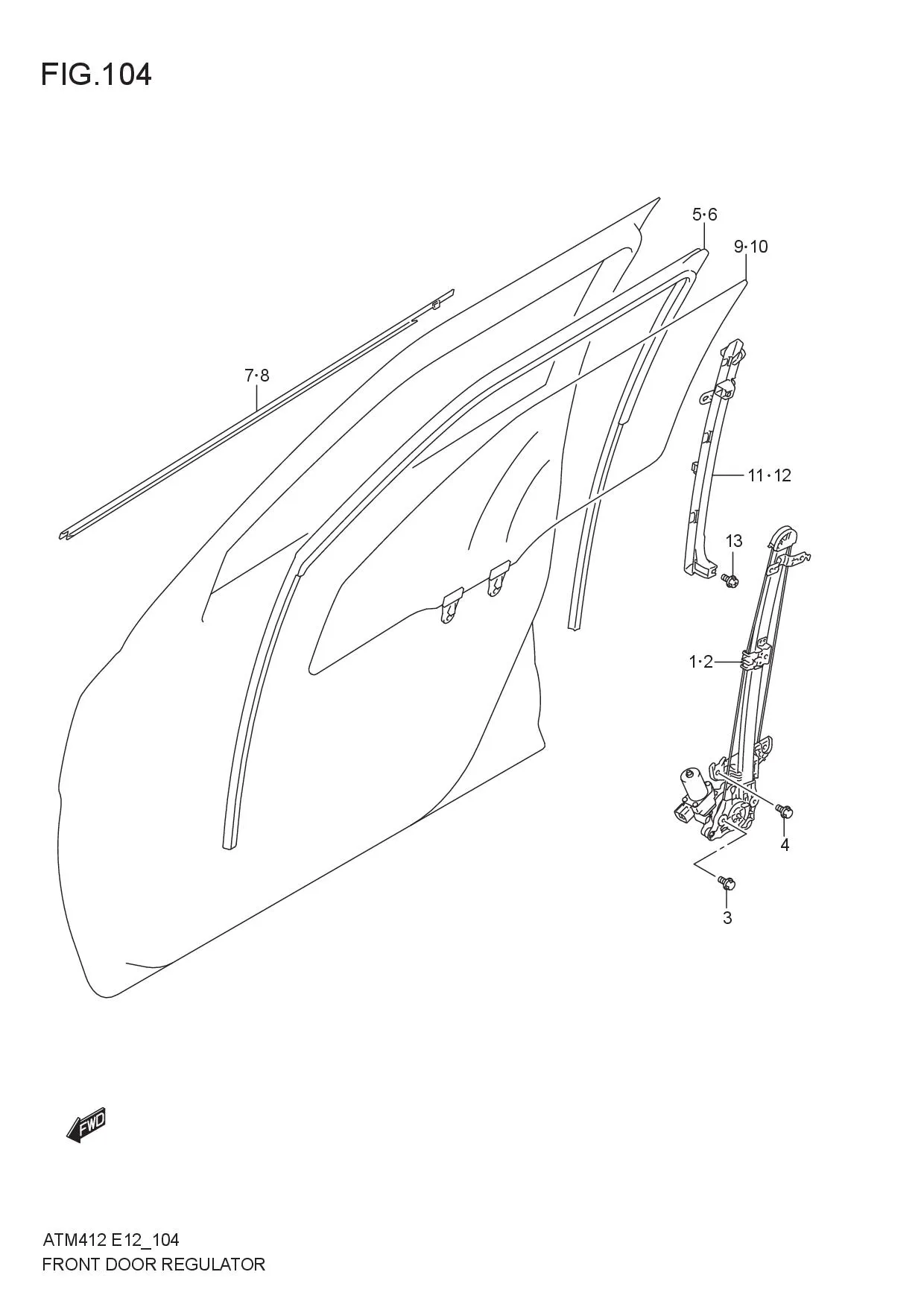

FRONT DOOR REGULATOR

FRONT DOOR REGULATOR
No No. Part Description Qty Price Per Pcs Remarks
1 83401M66R21-000
SUB: 83401M66R10-000		 REGULATOR ASSY, FRONT WINDOW RH 1 Rp276.000
2 83402M66R21-000
SUB: 83402M66R10-000		 REGULATOR ASSY, FRONT WINDOW LH 1 Rp276.000
3 02162-0612A-000 SCREW 10 Rp11.000
4 02162-0612A-000 SCREW 4 Rp11.000
5 83661M66R00-000 RUN, FRONT DOOR GLASS RH 1 Rp337.500
6 83665M66R00-000 RUN, FRONT DOOR GLASS LH 1 Rp337.500
7 83811M66R00-000 WEATHERSTRIP, FRONT DOOR OUT RH 1 Rp97.500
8 83821M66R00-000 WEATHERSTRIP, FRONT DOOR OUT LH 1 Rp97.500
9 84501M66R00-000 GLASS, FRONT DOOR WINDOW RH 1 Rp476.500
10 84502M66R00-000 GLASS, FRONT DOOR WINDOW LH 1 Rp476.500
11 81730M66R00-000 SASH, FR DR REAR LOWER RH 1 Rp35.500
12 81740M66R00-000 SASH, FR DR REAR LOWER LH 1 Rp35.500
13 02162-0612A-000 BOLT 4 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
