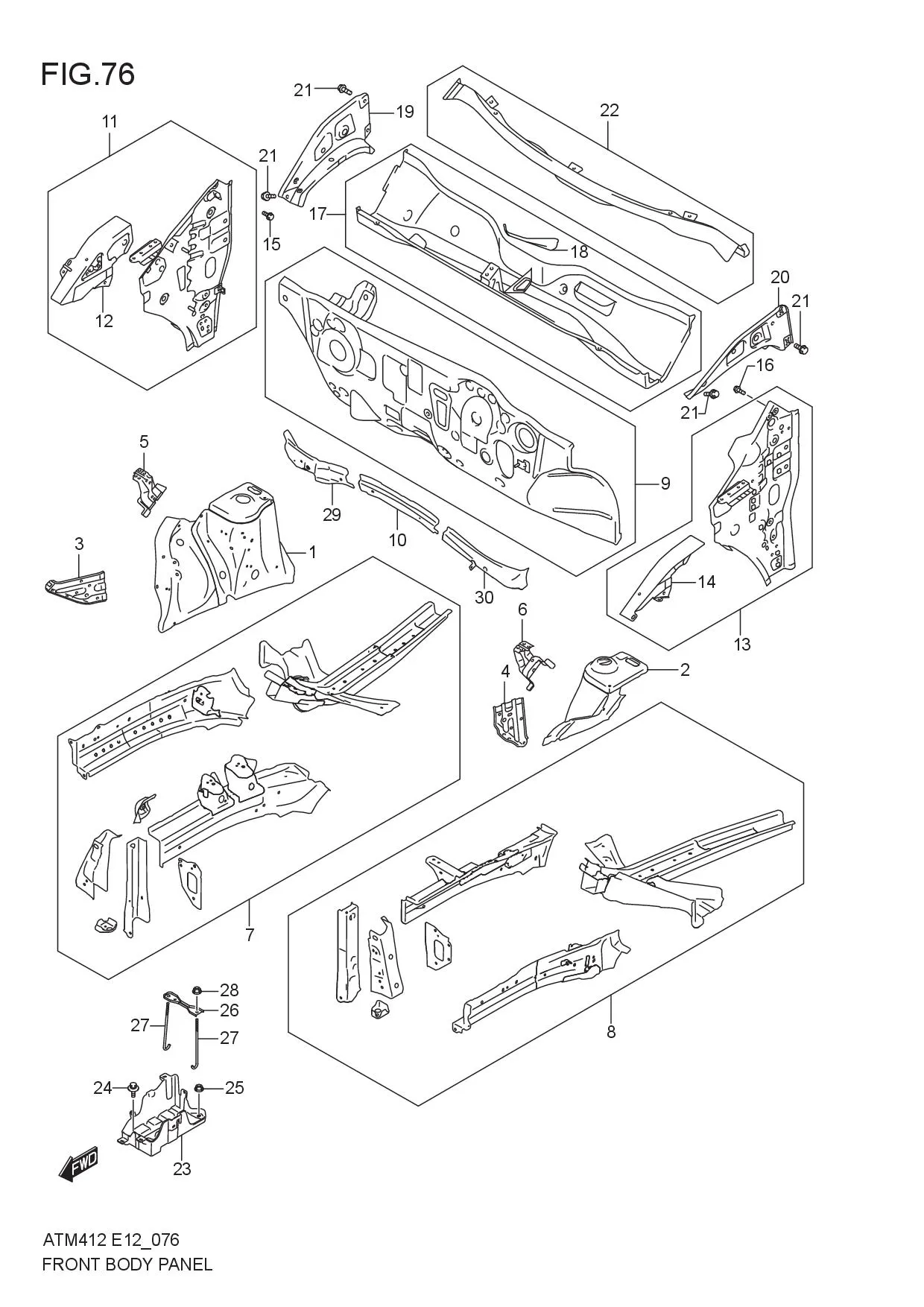

FRONT BODY PANEL

FRONT BODY PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 58310M66R00-000 PANEL, FNDR APRN RH 1 Rp756.500
2 58410M66R00-000 PANEL, FNDR APRN LH 1 Rp756.500
3 58315M66R00-000 BRACKET, FR FENDER LWR RH 1 Rp24.000
4 58415M66R00-000 BRACKET, FR FENDER LWR LH 1 Rp24.000
5 58320M66R00-000 BRACKET,FR FNDR UPR FR,RH 1 Rp42.000
6 58420M66R00-000 BRACKET,FR FNDR UPR FR,LH 1 Rp42.000
7 58600M66R00-000 MEMBER, FRONT SIDE RH 1 Rp2.416.000
8 58700M66R00-000 MEMBER, FRONT SIDE LH 1 Rp2.416.000
9-1 59100M66R00-000 PANEL, DASH 1 Rp1.168.500 5MT
9-2 59100M66R40-000 PANEL, DASH 1 Rp1.168.500 5AGS
10 59221M66R00-000 CROSSMEMBER, DASH UPR 1 Rp120.500
11 59230M66R00-000 PANEL, DASH SIDE RH 1 Rp605.000
12 59240M66R00-000 •PANEL, DASH SIDE FRONT RH 1 Rp196.500
13 59280M66R00-000 PANEL, DASH SIDE LH 1 Rp605.000
14 59282M66R00-000 •PANEL, DASH SIDE FR LH 1 Rp116.000
15 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
16 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
17 59300M66R00-000 PANEL, COWL UPPER 1 Rp548.000
18 59312M62R00-000 •SEALING, COWL VENT 1 Rp31.500
19 59410M66R00-000 MEMBER, COWL SIDE OTR RH 1 Rp140.500
20 59461M66R00-000 MEMBER, COWL SIDE OTR LH 1 Rp207.500
21 01551-0820A-000 BOLT 4 Rp17.500
22 59710M66R00-000 PANEL, COWL TOP 1 Rp218.000
23 72521M66R00-000 TRAY, BATTERY 1 Rp111.000
24 09118-08166-000 BOLT,BATTERY TRAY 2 Rp30.500
25 09159M08152-000 NUT,BATTERY TRAY 1 Rp14.000
26 72511-78000-000
SUB: 72511B78000N000		 BAND,BATTERY 2 Rp9.000
27 63461M75J00-000 BOLT,BATTERY 2 Rp7.000
28 08316-1005A-000
SUB: 08316B1005AN000		 NUT,BATTERY 2 Rp2.500
29 59210M66R00-000 CROSSMEMBER,DASH UPPER,RH 1 Rp130.500
30 59260M66R00-000 CROSSMEMBER,DASH UPPER,LH 1 Rp135.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
