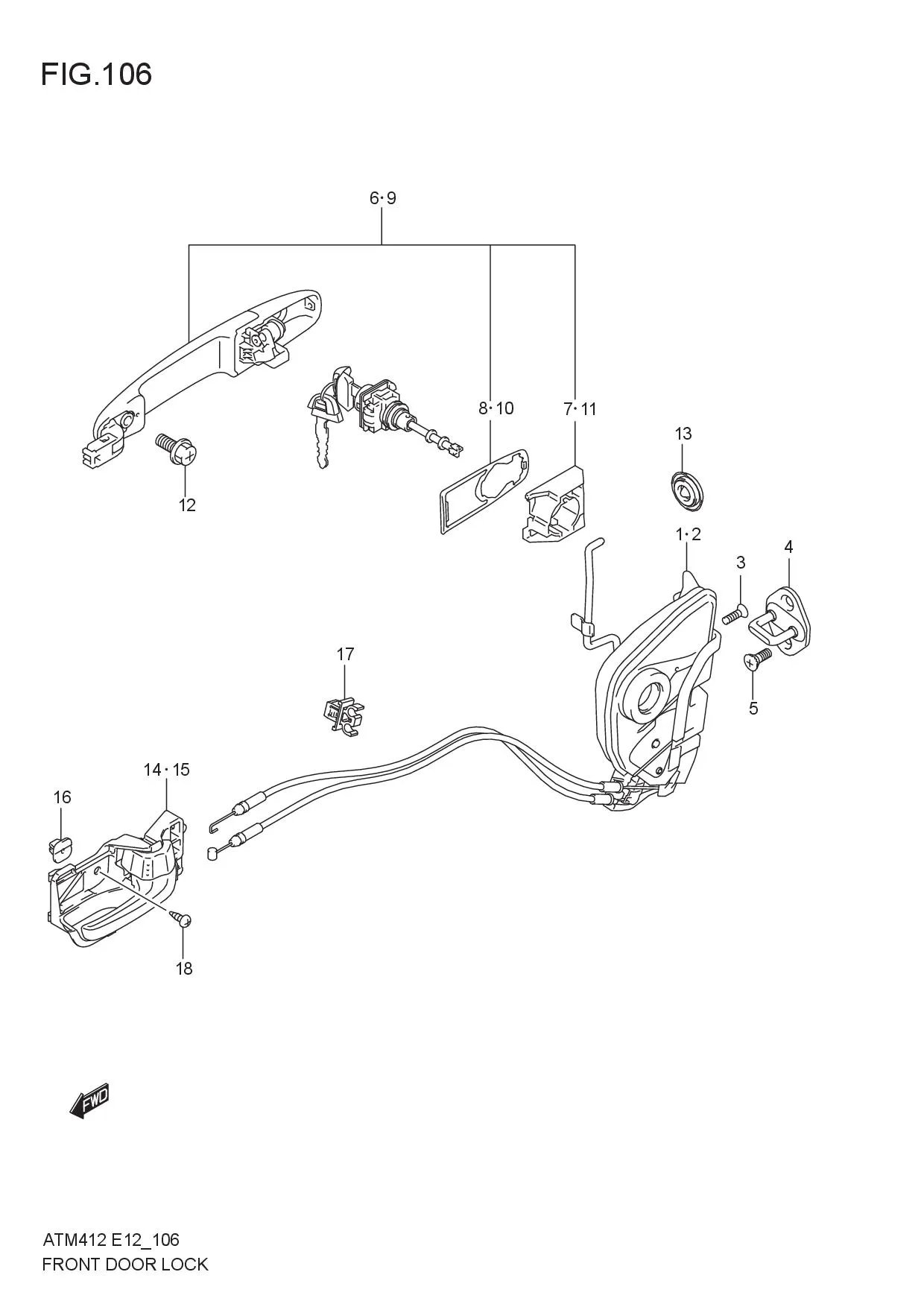

FRONT DOOR LOCK

FRONT DOOR LOCK
No No. Part Description Qty Price Per Pcs Remarks
1-2 82201M66R13-000
SUB: 82201M66R40-000		 LATCH ASSY, FRONT DOOR RH 1 Rp494.500 5MT:GX
1-1 82201M66R13-000
SUB: 82201M66R10-000		 LATCH ASSY, FRONT DOOR RH 1 Rp494.500 GL;5AGS:GX
2-1 82202M66R33-000
SUB: 82202M66R30-000		 LATCH ASSY, FRONT DOOR LH 1 Rp489.500 GL;5AGS:GX
2-2 82202M66R53-000
SUB: 82202M66R50-000		 LATCH ASSY, FRONT DOOR LH 1 Rp585.000 5MT:GX
3 09137-06032-000 SCREW 6 Rp16.500
4 82610M76M01-000
SUB: 82610M76M00-000		 STRIKER, DOOR LATCH 2 Rp27.000
5 09137-08014-000
SUB: 09137-08004-000		 SCREW 4 Rp23.000
6-8 82081M66R10-ZAM
SUB: 82810M66R40-ZAM		 HANDLE, FRONT DOOR OUT RH 1 Rp730.000 5MT:GX
6-13 82081M66R10-Z2S
SUB: 82810M66R40-Z2S		 HANDLE, FRONT DOOR OUT RH 1 Rp730.000 5MT:GX
6-12 82081M66R10-ZWS
SUB: 82810M66R40-ZWS		 HANDLE, FRONT DOOR OUT RH 1 Rp730.000 5MT:GX
6-11 82081M66R10-ZWR
SUB: 82810M66R40-ZWR		 HANDLE, FRONT DOOR OUT RH 1 Rp730.000 5MT:GX
6-10 82081M66R10-ZNZ
SUB: 82810M66R40-ZNZ		 HANDLE, FRONT DOOR OUT RH 1 Rp730.000 5MT:GX
6-9 82081M66R10-ZHJ
SUB: 82810M66R40-ZHJ		 HANDLE, FRONT DOOR OUT RH 1 Rp730.000 5MT:GX
6-7 DISCONTINUE
SUB: 82810M66R20-26U		 HANDLE, FRONT DOOR OUT RH 1 - 5AGS:GX
6-6 82810M66R20-Z2S HANDLE, FRONT DOOR OUT RH 1 Rp273.000 GL;5AGS:GX
6-5 82810M66R20-ZWS HANDLE, FRONT DOOR OUT RH 1 Rp290.000 GL;5AGS:GX
6-4 82810M66R20-ZWR HANDLE, FRONT DOOR OUT RH 1 Rp290.000 GL;5AGS:GX
6-3 82810M66R20-ZNZ HANDLE, FRONT DOOR OUT RH 1 Rp273.000 GL;5AGS:GX
6-2 82810M66R20-ZHJ HANDLE, FRONT DOOR OUT RH 1 Rp273.000 GL;5AGS:GX
6-1 82810M66R20-ZAM HANDLE, FRONT DOOR OUT RH 1 Rp273.000 GL;5AGS:GX
7 82812M66R00-000 •BRACKET, FR DR OUT HANDLE RH 1 Rp23.000
8 82813M66R00-000 •PAD, FRONT DOOR OUT HANDLE 1 Rp6.000
9-2 82820M66R30-ZHJ HANDLE, FRONT DOOR OUT LH 1 Rp283.000 GL;5AGS:GX
9-13 82082M66R10-Z2S
SUB: 82820M66R50-Z2S		 HANDLE, FRONT DOOR OUT LH 1 Rp730.000 5MT:GX
9-12 82082M66R10-ZWS
SUB: 82820M66R50-ZWS		 HANDLE, FRONT DOOR OUT LH 1 Rp730.000 5MT:GX
9-11 82082M66R10-ZWR
SUB: 82820M66R50-ZWR		 HANDLE, FRONT DOOR OUT LH 1 Rp730.000 5MT:GX
9-10 82082M66R10-ZNZ
SUB: 82820M66R50-ZNZ		 HANDLE, FRONT DOOR OUT LH 1 Rp730.000 5MT:GX
9-9 82082M66R10-ZHJ
SUB: 82820M66R50-ZHJ		 HANDLE, FRONT DOOR OUT LH 1 Rp730.000 5MT:GX
9-8 82082M66R10-ZAM
SUB: 82820M66R50-ZAM		 HANDLE, FRONT DOOR OUT LH 1 Rp730.000 5MT:GX
9-6 82820M66R30-Z2S HANDLE, FRONT DOOR OUT LH 1 Rp288.000 GL;5AGS:GX
9-5 82820M66R30-ZWS HANDLE, FRONT DOOR OUT LH 1 Rp283.000 GL;5AGS:GX
9-4 82820M66R30-ZWR HANDLE, FRONT DOOR OUT LH 1 Rp283.000 GL;5AGS:GX
9-3 82820M66R30-ZNZ HANDLE, FRONT DOOR OUT LH 1 Rp288.000 GL;5AGS:GX
9-1 82820M66R30-ZAM HANDLE, FRONT DOOR OUT LH 1 Rp283.000 GL;5AGS:GX
9-7 DISCONTINUE
SUB: 82820M66R30-26U		 HANDLE, FRONT DOOR OUT LH 1 - 5AGS:GX
10 82813M66R00-000 •PAD, FRONT DOOR OUT HANDLE 1 Rp6.000
11 82822M66R00-000 •BRACKET, FR DR OUT HANDLE LH 1 Rp23.000
12 09116-06168-000
SUB: 09116-06001-000		 BOLT 4 Rp15.000
13 09250M25L02-000
SUB: 09250M25L01-000		 PLUG, FR OUT HANDLE HOLE 2 Rp5.500
14-1 83110M76M01-5PK
SUB: 83110M76M00-5PK		 HANDLE, SIDE DOOR INSIDE RH 1 Rp65.500 GL
14-2 83110M55K20-C48 HANDLE, SIDE DOOR INSIDE RH 1 Rp145.000 GX
15-1 83130M76M01-5PK
SUB: 83130M76M00-5PK		 HANDLE, SIDE DOOR INSIDE LH 1 Rp65.500 GL
15-2 83130M55K20-C48 HANDLE, SIDE DOOR INSIDE LH 1 Rp145.000 GX
16 83119M75J00-000 NUT 2 Rp5.500
17 83271M66R00-000 CLIP 2 Rp6.500
18 09132-05058-000 SCREW 2 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
