IGNIS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANELFRONT FENDER PANEL (GL)FRONT FENDER PANEL (GX)FRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPER (GL)FRONT BUMPER (GX)REAR BUMPER (GL)REAR BUMPER (GX)INSTRUMENT PANELVENTILATORHEATER UNIT (W/MANUAL AIR CONDITIONER)HEATER UNIT (W/AUTO AIR CONDITIONER)HEATER CONTROL (W/MANUAL AIR CONDITIONER:W/REAR DEFOGGER)HEATER CONTROL (W/AUTO AIR CONDITIONER)CONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER / CAPFUEL LID OPENERROOF SIDE PADROOF LININGMOLDINGSPLASH GUARD (GX)EMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATOR (W/REAR POWER WINDOW)FRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (GL)MIRROR/SUNVISOR (GX)SEAT BELTFRONT LH SEATFRONT RH SEAT (GL)FRONT RH SEAT (GX)REAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSOR

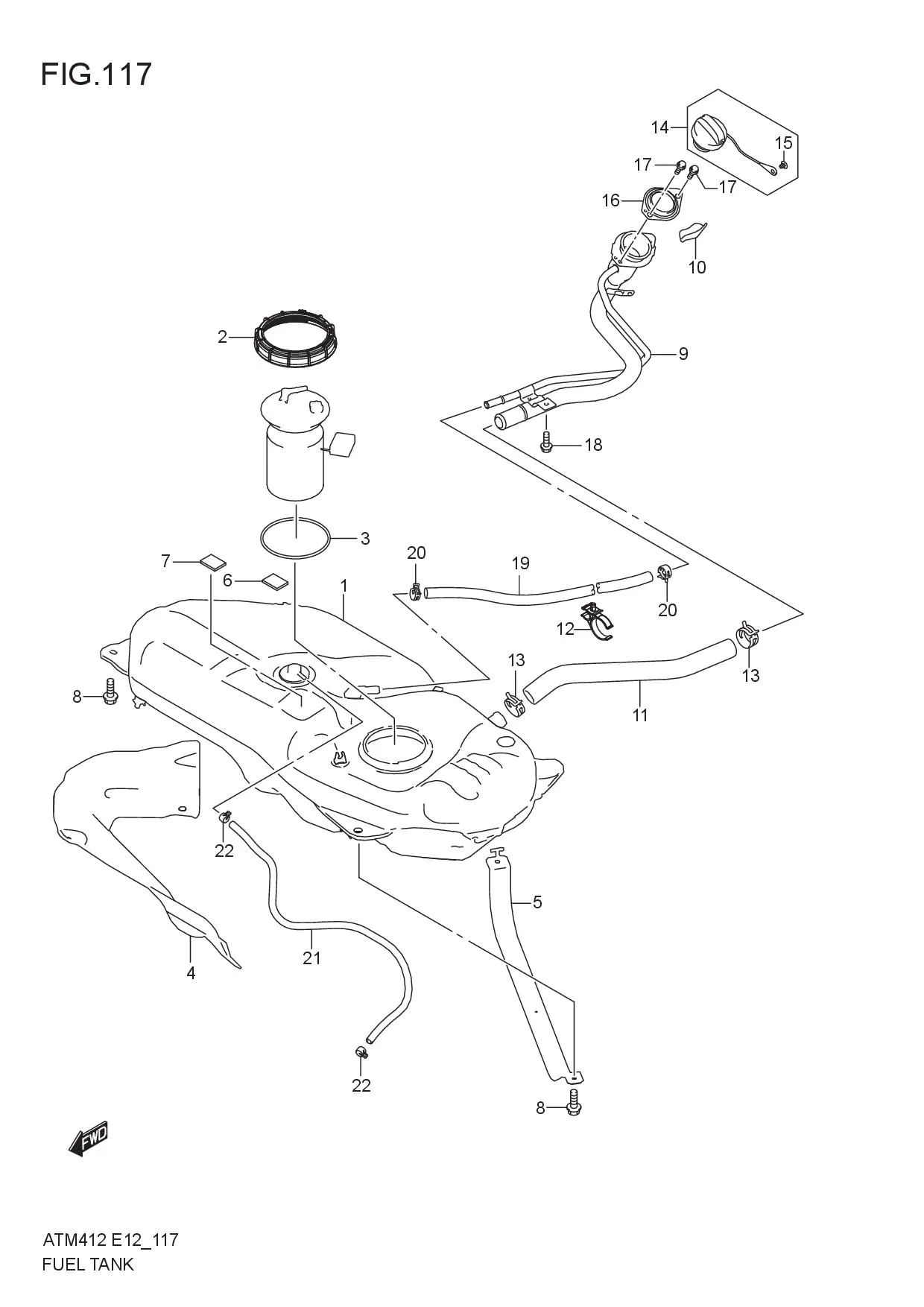

FUEL TANK

FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 89101M66R00-000 TANK, FUEL 1 Rp3.014.000
2 89191-68L00-000 NUT, FUEL PUMP LOCK 1 Rp855.000
3 89192-62J00-000 O-RING, FUEL PUMP 1 Rp313.500
4 89311M68P00-000 INSULATOR, HEAT 1 Rp343.500
5 89363M68P00-000 BELT, FUEL TANK FIXER 1 Rp91.500
6 89385M66R00-000 PAD, FUEL TANK 1 Rp73.000
7 89385-76M00-000 PAD, FUEL TANK 1 Rp359.000
8 89199M68P00-000 BOLT, FUEL TANK FIXER 4 Rp13.500
9 89210M66R10-000 NECK, FUEL FILLER 1 Rp476.000
10 89232M74L00-000 COVER, FUEL FILLER NECK 1 Rp11.000
11 89241M66R00-000 HOSE, FUEL TANK FILLER 1 Rp273.000
12 89242M68P00-000 CLAMP, FILLER & BREATHER HOSE 1 Rp12.500
13 89243M68PA0-000 CLAMP, FUEL FILLER HOSE 2 Rp41.000
14 89260M60MA0-000 CAP ASSY, FUEL FILLER 1 Rp599.500
15 89267M60M00-000 •CLIP, CAP TETHER 1 Rp14.000
16 89285M58J00-000 PACKING, FUEL FILLER 1 Rp13.500
17 09116-05023-000 SCREW 2 Rp18.500
18 DISCONTINUE
SUB: 09116-06205-000		 BOLT 1 -
19 09355M11190-600 HOSE, FUEL TANK BREATHER 1 Rp130.500
20 09401M16L01-000 CLIP 2 Rp9.000
21 09355M56130-780 HOSE, TANK TO EVAP PIPE 1 Rp112.500
22 09401M11419-000 CLIP 2 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
