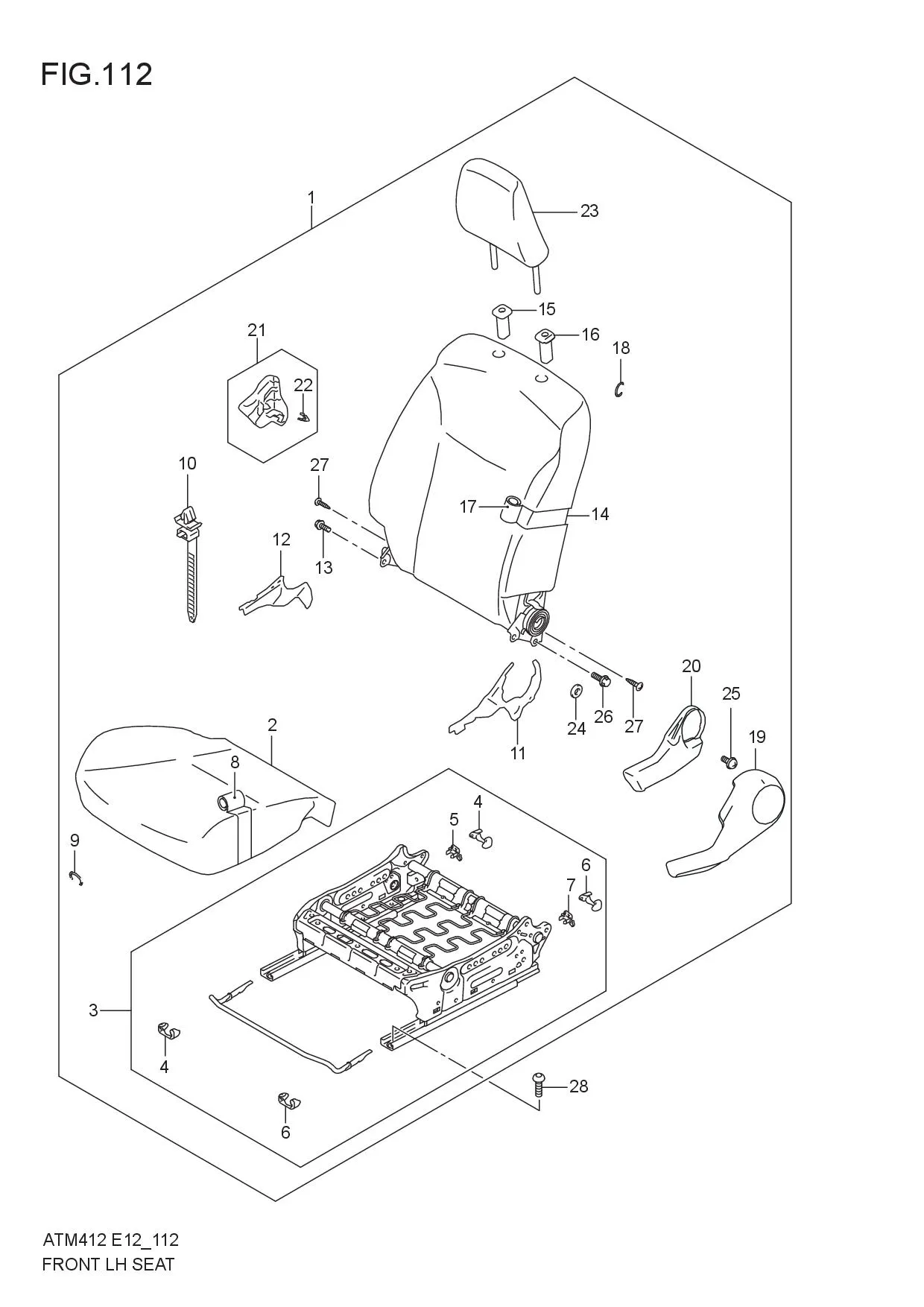

FRONT LH SEAT

No	No. Part	Description	Qty	Price Per Pcs
1	85002M66RB0-CMC	SEAT ASSY, FR LH	1	Rp6.073.000
2	85160M66RA0-000	•PAD, FR CUSH	1	Rp523.000
3	85603M66R02-000 SUB: 85603M66R00-000	•FRAME ASSY, FR CUSH LH	1	Rp2.257.000
4	86652M74P50-000	••CAP, FR ADJUSTER LOWER	2	Rp5.500
5	86653M74P50-000	••CAP, FR ADJUSTER UPPER	1	Rp5.500
6	86652M74P50-000	••CAP, FR ADJUSTER LOWER	2	Rp5.500
7	86653M74P50-000	••CAP, FR ADJUSTER UPPER	1	Rp5.500
8	85680M66RA0-CMC	•TRIM, FR CUSH LH	1	Rp466.500
9	09387-19001-000 SUB: 09387B19001N000	•RING	10	Rp9.000
10	85191M74L00-000	•CLAMP	1	Rp9.000
11	85242M68P00-5PK	•COVER, FR RCLNG INSIDE LOWER LH (BLACK)	1	Rp22.000
12	85242M68P10-5PK	•COVER, FR RCLNG INSIDE LOWER LH (BLACK)	1	Rp23.000
13	85295-58J01-000 SUB: 85295B58J01N000	•BOLT, FR BACK FIX	1	Rp34.000
14	85306M66RA0-000	•BACK S/ASSY, FR LH	1	Rp1.659.000
15	85341M68P00-5PK	•GUIDE, HEADRESTRAINT (BLACK)	1	Rp15.000
16	85840M68P00-5PK	•GUIDE, HEADRESTRAINT (BLACK)	1	Rp31.000
17	85880M66RB0-CMC	•TRIM, FR BACK LH	1	Rp652.500
18	09387-19001-000 SUB: 09387B19001N000	•RING	12	Rp9.000
19	85711M62R00-5PK	•KNOB, RCLNG LH (BLACK)	1	Rp38.500
20	85720M62R00-5PK	•COVER, FR RCLNG OUTSIDE LH (BLACK)	1	Rp24.000
21	85741M68P10-5PK	•COVER, FR RCLNG INSIDE LH (BLACK)	1	Rp29.000
22	85249M68P00-000	••CLIP	1	Rp9.500
23	86401M68P70-PWC	•HEADRESTRAINT ASSY, FR	1	Rp430.500
24	87286-58J10-000 SUB: 87286B58J10N000	•BUSH, FR BACK FIX	1	Rp4.500
25	09132M04038-000	•SCREW	1	Rp5.500
26	01550-1016A-000 SUB: 01550B1016AN000	•BOLT	2	Rp5.500
27	03541-0410A-000	•SCREW	2	Rp11.000
28	09119M08118-000 SUB: 09119M08111-000	BOLT	4	Rp6.500
