GSXS-150

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.401A (1-D-3) FRAME FIG.407A (1-D-4) STAND FIG.415A (1-E-9) FOOTREST FIG.420A (1-D-6) FUEL TANK FIG.423A (1-E-13) FUEL TANK COVER FIG.424A (1-E-15) FUEL TANK SIDE COVER FIG.445A (1-F-2) FRAME COVER FIG.451A (1-F-4) HEADLAMP HOUSING FIG.460A (1-F-5) FRONT FENDER FIG.462A (1-D-14) HANDLEBAR FIG.467A (1-D-15) HANDLE LEVER FIG.474A (1-E-2) REAR FENDER FIG.481A (1-F-12) COWLING BODY FIG.483A (1-F-13) UNDER COWLING FIG.485A (1-F-14) SIDE COWLING FIG.496 (1-G-1) LABEL FIG.505A (1-G-2) SEAT FIG.521A (1-E-8) FRONT FORK DAMPER FIG.524A (1-G-7) STEERING STEM FIG.530A (1-G-8) FRONT WHEEL FIG.535A (1-E-10) FRONT CALIPER FIG.536A (1-E-11) FRONT BRAKE HOSE FIG.537A (1-E-12) FRONT MASTER CYLINDER FIG.541A (1-E-13) REAR SWINGINGARM FIG.543A (1-G-140 REAR CUSHION LEVER FIG.550A (1-E-14) REAR WHEEL FIG.555A (1-E-15) REAR CALIPER FIG.558A (1-F-3) REAR MASTER CYLINDER FIG.915A (1-H-5) STRIPPING SET

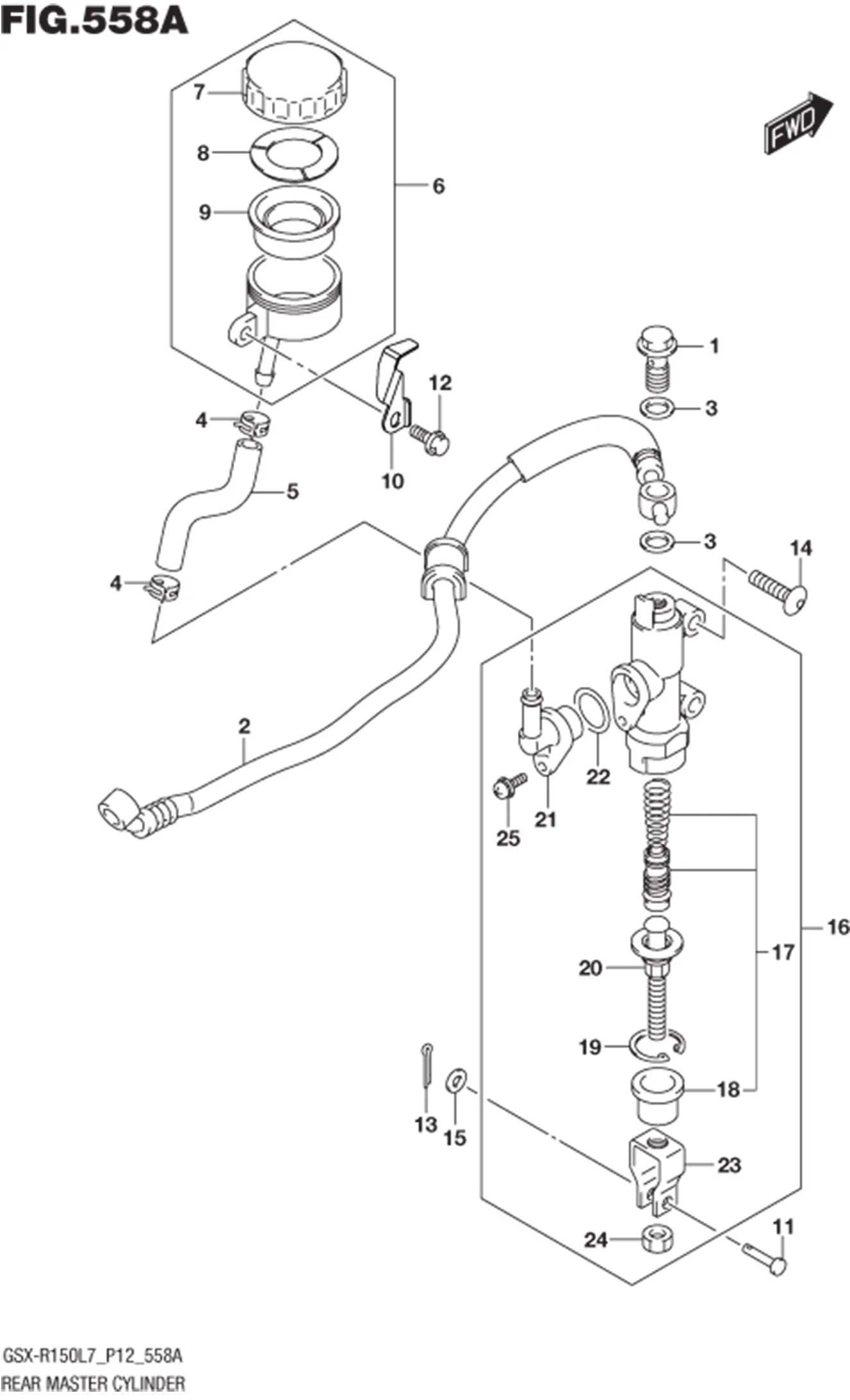

FIG.558A (1-F-3) REAR MASTER CYLINDER

FIG.558A (1-F-3) REAR MASTER CYLINDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	09139-06057-000	SCREW (6X25)	2	Rp4.500
	02112-74125-000	SCREW	1	Rp4.000
	69692-44H00-000 SUB: 69692B44H00N000	YOKE	1	Rp41.000
	69672-34J00-000	CONNECTOR	1	Rp14.500
	69670-34J00-000	ROD, PUSH	1	Rp33.500
	69665-47H00-000	CIRCLIP	1	Rp32.000
	69691-04A00-000	BOOT	1	Rp21.500
	69600-34840-000	PISTON / CUP SET	1	Rp120.000
	69600-23K00-000	CYLINDER ASSY, REAR MASTER	1	Rp246.000
	59492-22J00-000 SUB: 59492B22J00N000	BOLT, BRAKE FLUID	2	Rp19.500
	04111-2015A-000	PIN	1	Rp4.500
	01547-0616A-000	BOLT	1	Rp6.500
	69743-23K00-000	GUARD, RSVR TANK CAP	1	Rp5.500
	69669-20G10-000	CAP	1	Rp7.500
	69740-20G10-000	TANK ASSY, REAR RESERVOIR	1	Rp22.500
	69731-23K00-000	HOSE, REAR RESERVOIR TANK	1	Rp24.000
	DISCONTINUE SUB: 74282B54J00N000		1	-
	DISCONTINUE SUB: 74271B54J00N000		2	-
	69480-23K00-000	HOSE, REAR BRAKE	1	Rp116.500
19	08322-0106A-000 SUB: 08322B0106AN000	WASHER	2	Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
