GSXS-150

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.401A (1-D-3) FRAME FIG.407A (1-D-4) STAND FIG.415A (1-E-9) FOOTREST FIG.420A (1-D-6) FUEL TANK FIG.423A (1-E-13) FUEL TANK COVER FIG.424A (1-E-15) FUEL TANK SIDE COVER FIG.445A (1-F-2) FRAME COVER FIG.451A (1-F-4) HEADLAMP HOUSING FIG.460A (1-F-5) FRONT FENDER FIG.462A (1-D-14) HANDLEBAR FIG.467A (1-D-15) HANDLE LEVER FIG.474A (1-E-2) REAR FENDER FIG.481A (1-F-12) COWLING BODY FIG.483A (1-F-13) UNDER COWLING FIG.485A (1-F-14) SIDE COWLING FIG.496 (1-G-1) LABEL FIG.505A (1-G-2) SEAT FIG.521A (1-E-8) FRONT FORK DAMPER FIG.524A (1-G-7) STEERING STEM FIG.530A (1-G-8) FRONT WHEEL FIG.535A (1-E-10) FRONT CALIPER FIG.536A (1-E-11) FRONT BRAKE HOSE FIG.537A (1-E-12) FRONT MASTER CYLINDER FIG.541A (1-E-13) REAR SWINGINGARM FIG.543A (1-G-140 REAR CUSHION LEVER FIG.550A (1-E-14) REAR WHEEL FIG.555A (1-E-15) REAR CALIPER FIG.558A (1-F-3) REAR MASTER CYLINDER FIG.915A (1-H-5) STRIPPING SET

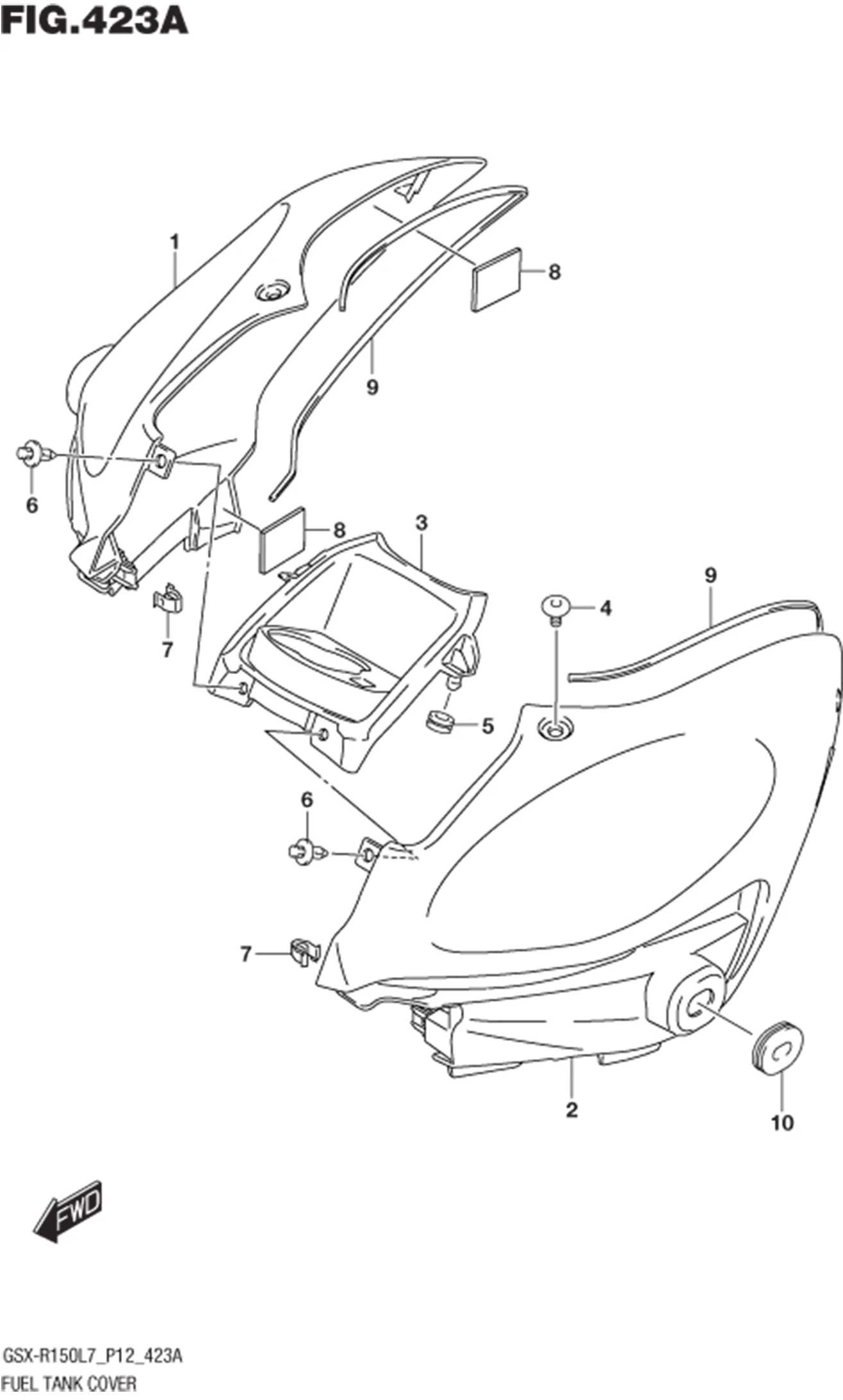

FIG.423A (1-E-13) FUEL TANK COVER

FIG.423A (1-E-13) FUEL TANK COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	44292-23KA0-YVU	COVER, FUEL TANK RH (BLACK)	1	Rp154.000
	44293-23KA0-YVU	COVER, FUEL TANK LH (BLACK)	1	Rp154.000
	44291-23KA0-000	COVER, FUEL TANK CENTER	1	Rp56.000
	44295-23K00-000	SCREW, FUEL TANK COVER	2	Rp7.500
	09320-06027-000 SUB: 09320-06016-000	CUSHION	2	Rp3.500
	09409-06314-5PK SUB: 09409-06314-000	CLIP	2	Rp3.500
	09409-08326-000	CLIP	2	Rp8.000
	44572-13G00-000	FASTENER, FUEL TANK	4	Rp64.500
	44277-23K00-000	CUSHION, FUEL TANK SIDE COVER	2	Rp5.500
	94478-14J00-000	CUSHION, FRAME COVER FRONT	2	Rp4.000
	56210-52D00-000		1	Rp2.228.000
	56220-52D00-000		1	Rp2.453.500
	56310-52D00-000		1	Rp2.775.000
	DISCONTINUE SUB: 51399-65D00-000		2	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
