GSXS-150

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.401A (1-D-3) FRAME FIG.407A (1-D-4) STAND FIG.415A (1-E-9) FOOTREST FIG.420A (1-D-6) FUEL TANK FIG.423A (1-E-13) FUEL TANK COVER FIG.424A (1-E-15) FUEL TANK SIDE COVER FIG.445A (1-F-2) FRAME COVER FIG.451A (1-F-4) HEADLAMP HOUSING FIG.460A (1-F-5) FRONT FENDER FIG.462A (1-D-14) HANDLEBAR FIG.467A (1-D-15) HANDLE LEVER FIG.474A (1-E-2) REAR FENDER FIG.481A (1-F-12) COWLING BODY FIG.483A (1-F-13) UNDER COWLING FIG.485A (1-F-14) SIDE COWLING FIG.496 (1-G-1) LABEL FIG.505A (1-G-2) SEAT FIG.521A (1-E-8) FRONT FORK DAMPER FIG.524A (1-G-7) STEERING STEM FIG.530A (1-G-8) FRONT WHEEL FIG.535A (1-E-10) FRONT CALIPER FIG.536A (1-E-11) FRONT BRAKE HOSE FIG.537A (1-E-12) FRONT MASTER CYLINDER FIG.541A (1-E-13) REAR SWINGINGARM FIG.543A (1-G-140 REAR CUSHION LEVER FIG.550A (1-E-14) REAR WHEEL FIG.555A (1-E-15) REAR CALIPER FIG.558A (1-F-3) REAR MASTER CYLINDER FIG.915A (1-H-5) STRIPPING SET

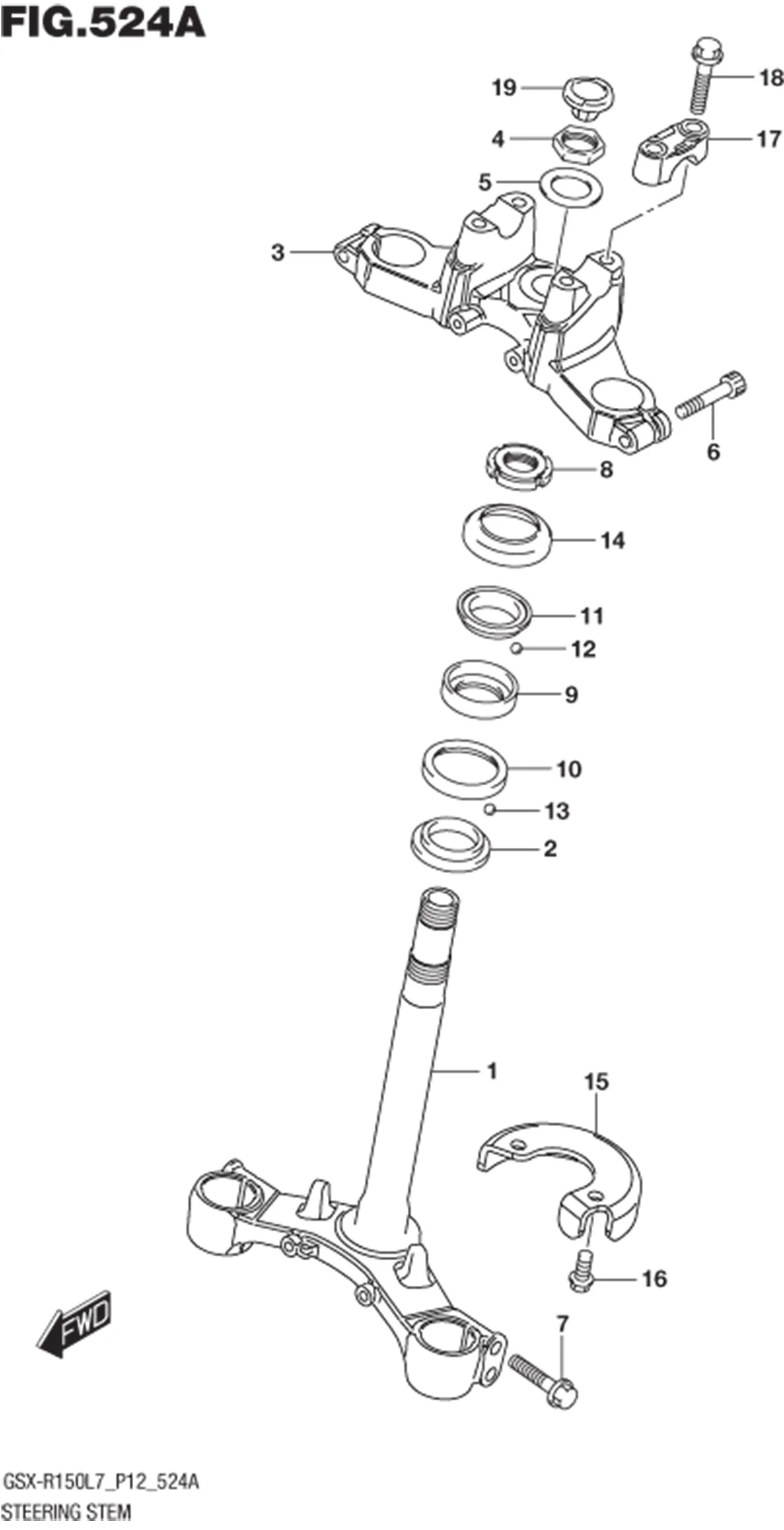

FIG.524A (1-G-7) STEERING STEM

FIG.524A (1-G-7) STEERING STEM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	51612-41H01-000	RACE, INNER LOWER	1	Rp20.500
	51344-23K00-000	CAP, STEERING STEM	1	Rp7.000
	51321-13E00-000 SUB: 51321B13E00N000	BOLT, HANDLE HOLDER	4	Rp4.500
	56211-23K00-000	HOLDER, HANDLE UPPER	2	Rp29.000
	09103-08351-000	SCREW	2	Rp19.500
	51910-23K00-000	PLATE, STEERING LOCK	1	Rp32.500
	51643-06001-000	DUST SEAL, UPPER	1	Rp3.000
	06111-06004-000 SUB: 06111-06004L000	BALL	28	Rp1.000
	06111-06004-000 SUB: 06111-06004L000	BALL	23	Rp1.000
	51621-41H00-000	RACE, OUTER UPPER	1	Rp31.000
	51410-23K00-000	STEM, STEERING	1	Rp296.500
	51611-41H01-000	RACE, INNER UPPER	1	Rp20.500
	51631-05000-000	NUT, STEERING STEM	1	Rp20.000
	51434-12K00-000	BOLT	4	Rp5.500
	51328-23K00-000	BOLT	2	Rp5.500
	51354-49G00-000 SUB: 51354B49G00N000	WASHER	1	Rp6.500
	51353-12K00-000	NUT	1	Rp44.000
	51311-23K00-000	BRACKET, UPPER	1	Rp346.000
	51622-25G00-000 SUB: 51622B25G00N000	RACE	1	Rp48.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
