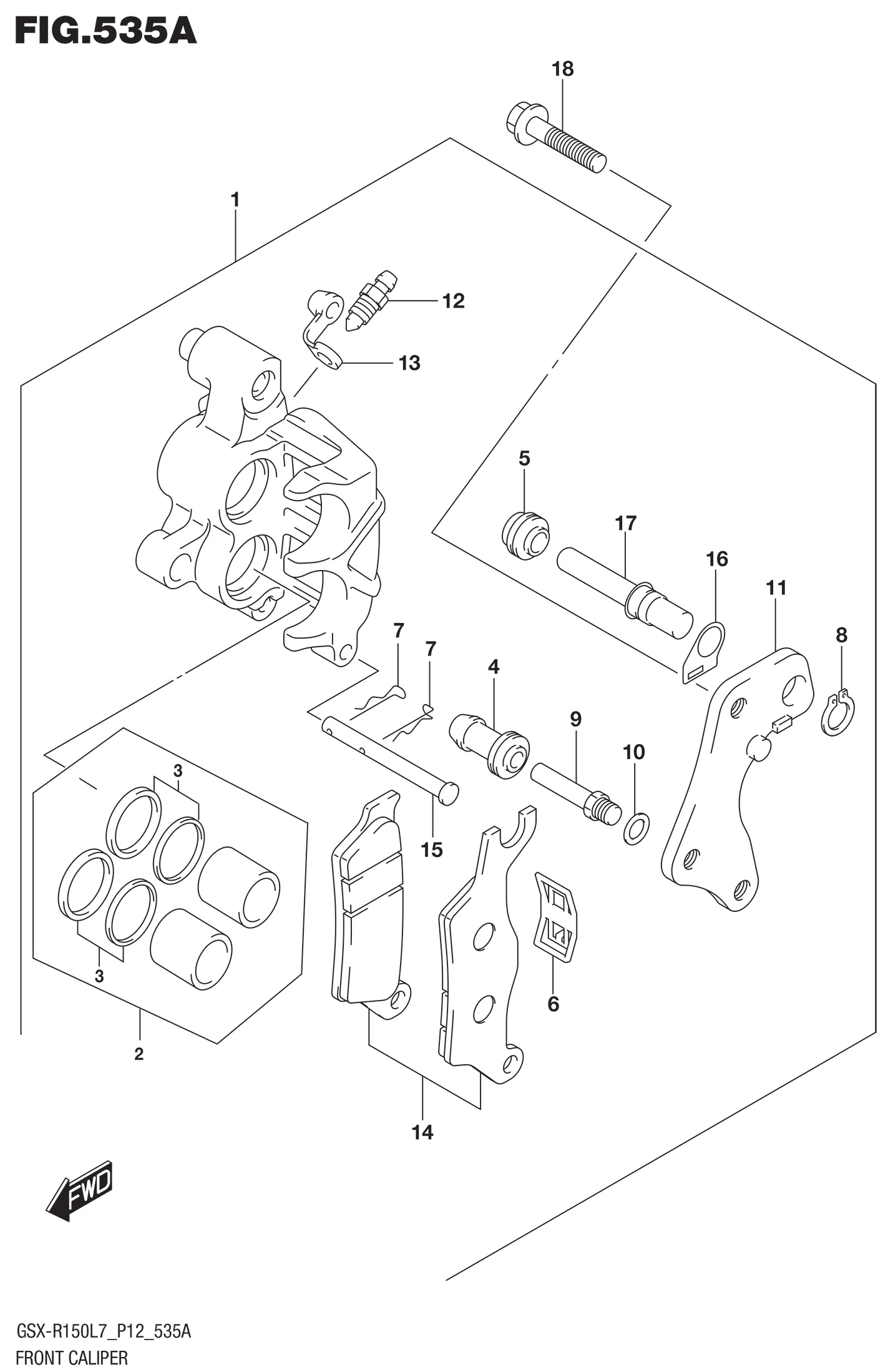

FIG.535A (1-E-10) FRONT CALIPER

FIG.535A (1-E-10) FRONT CALIPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	59122-30H00-000	CAP, BLEEDER	1	Rp11.000
	03141-0516B-000 SUB: 03142-05123-000		2	Rp3.500
	03141-0516B-000 SUB: 03142-05123-000		4	Rp3.500
	01551-0816C-000 SUB: 01551-08163-000		4	Rp13.500
	73291-50G20-000 SUB: 73291-50G01-000		4	Rp42.500
	DISCONTINUE SUB: 01580-06163-000		2	-
	59141-34J00-000	PIN, PAD	1	Rp23.000
	59100-34880-000	PAD SET	1	Rp117.500
	59100-12K10-000	CALIPER ASSY, FRONT RH	1	Rp618.000
	59121-30H00-000	SCREW, BLEEDER	1	Rp18.000
	59351-34J00-000	BRACKET	1	Rp75.000
	59746-34J00-000	CLIP	2	Rp11.500
	59315-34J00-000	SPRING, PAD	1	Rp18.000
	59108-34J00-000	DUST COVER	1	Rp13.500
	59109-34J00-000	INSULATOR	1	Rp15.500
	59100-34860-000	SEAL SET, PISTON	1	Rp78.500
	59100-34870-000	PISTON SET	1	Rp117.500
14	01550-0825A-000	BOLT	1	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
