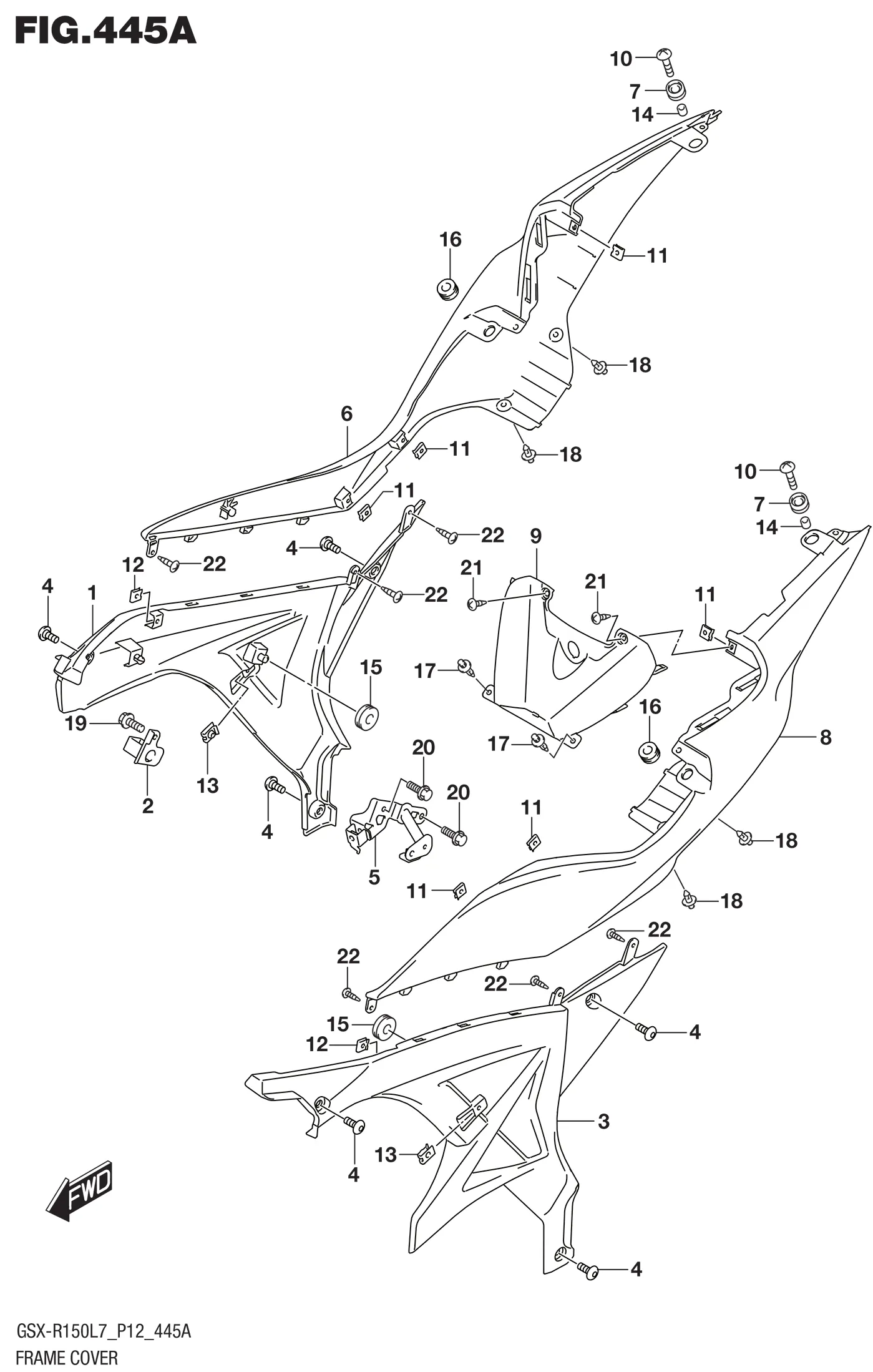

FIG.445A (1-F-2) FRAME COVER

No	No. Part	Description	Qty	Price Per Pcs
	DISCONTINUE SUB: 09136-06134-000		4	-
	DISCONTINUE SUB: 53720-52D00-000		1	-
	DISCONTINUE SUB: 53730-52D00-000		1	-
	53753-82030-000		2	Rp11.000
	DISCONTINUE SUB: 53820-52D00-000		2	-
	37940-76G00-000 SUB: 37940B76G00N000		1	Rp75.500
	54115-76G00-000 SUB: 54115B76G00N000		1	Rp16.000
	01550-0816A-000 SUB: 01570M08163-000		3	Rp6.000
	54410-52D01-000		1	Rp1.099.000
	54420-52D01-000		1	Rp1.096.000
	DISCONTINUE SUB: 54431-56B00-000		2	-
	53840-65D00-000		1	Rp584.500
	DISCONTINUE SUB: 57110-52DV0-000		1	-
	DISCONTINUE SUB: 57160-52DV0-000		1	-
	DISCONTINUE SUB: 57164-52D00-000		1	-
	DISCONTINUE SUB: 57210-65DV1-000		1	-
	DISCONTINUE SUB: 57220-52D00-000		1	-
	DISCONTINUE SUB: 57260-52D00-000		1	-
	DISCONTINUE SUB: 57263-52D00-000		1	-
	DISCONTINUE SUB: 57270-52D10-000		1	-
	DISCONTINUE SUB: 57280-52D10-000		1	-
	DISCONTINUE SUB: 57310-65D00-000		2	-
	09148-05058-000 SUB: 09148B05058N000	NUT	2	Rp15.000
	47160-23KA0-000	BRACKET, FRAME COVER FR RH	1	Rp22.500
	47211-23K00-291	COVER, FRAME LH (BLACK)	1	Rp194.500
	44513-23K00-000	SCREW, FRAME COVER	6	Rp6.500
	47260-23KA0-000	BRACKET, FRAME COVER FR LH	1	Rp22.500
	47311-23K00-YVU	COVER, FRAME UPPER RH (BLACK)	1	Rp192.500
	47312-37H10-000 SUB: 47312-37H00-000	CUSHION, FRAME COVER UPPER RR	2	Rp24.000
	47411-23K00-YVU	COVER, FRAME UPPER LH (BLACK)	1	Rp192.500
	47511-23K00-YVU	COVER, FRAME UPPER CTR (BLACK)	1	Rp88.500
	09136-06105-000	SCREW	2	Rp12.500
	09148-04019-000 SUB: 09148B04019N000	NUT	6	Rp6.500
	09148-04019-000 SUB: 09148B04019N000	NUT	2	Rp6.500
	47111-23K00-291	COVER, FRAME RH (BLACK)	1	Rp194.500
	09180-06283-000	SPACER	2	Rp13.000
	09320-09016-000	CUSHION	2	Rp4.000
	09409-06314-5PK SUB: 09409-06314-000	CLIP	2	Rp3.500
	09409-06314-5PK SUB: 09409-06314-000	CLIP	4	Rp3.500
	01550-0612A-000	BOLT	1	Rp3.500
	01550-0612A-000	BOLT	2	Rp3.500
	53830-65D00-000		1	Rp584.500
4	09159-10091-000	NUT	4	Rp26.500
24	03541-0412A-000 SUB: 03541B0412AN000	•SCREW	2	Rp3.500
24	03541-0412A-000 SUB: 03541B0412AN000	•SCREW	2	Rp3.500
